Many manufacturers, though, run into a costly misunderstanding: they assume "custom" is a loose marketing term. It isn't. The FDA has a narrow, specific legal definition of a "custom device," and getting it wrong can trigger regulatory action.
This article breaks down what actually qualifies as a custom medical device, how FDA classification works, real-world examples, compliance requirements, cost drivers, and what to look for in a development partner.
Key Takeaways
- A true FDA "custom device" is legally narrow — most personalized products are actually "patient-matched," not custom
- Devices fall into four regulatory categories: Class I, Class II, Class III, and the custom device exemption
- 3D printing and CNC machining make patient-specific dental and orthopedic devices faster and more practical to produce
- ISO 13485 and FDA registration matter regardless of whether a device qualifies as "custom"
- An end-to-end manufacturing partner cuts regulatory risk and shortens design-to-production timelines
What Are Custom Medical Devices?
A custom medical device, in everyday language, is a product built for one patient's specific anatomy or clinical situation. Under FDA law, though, the term means something far more precise.

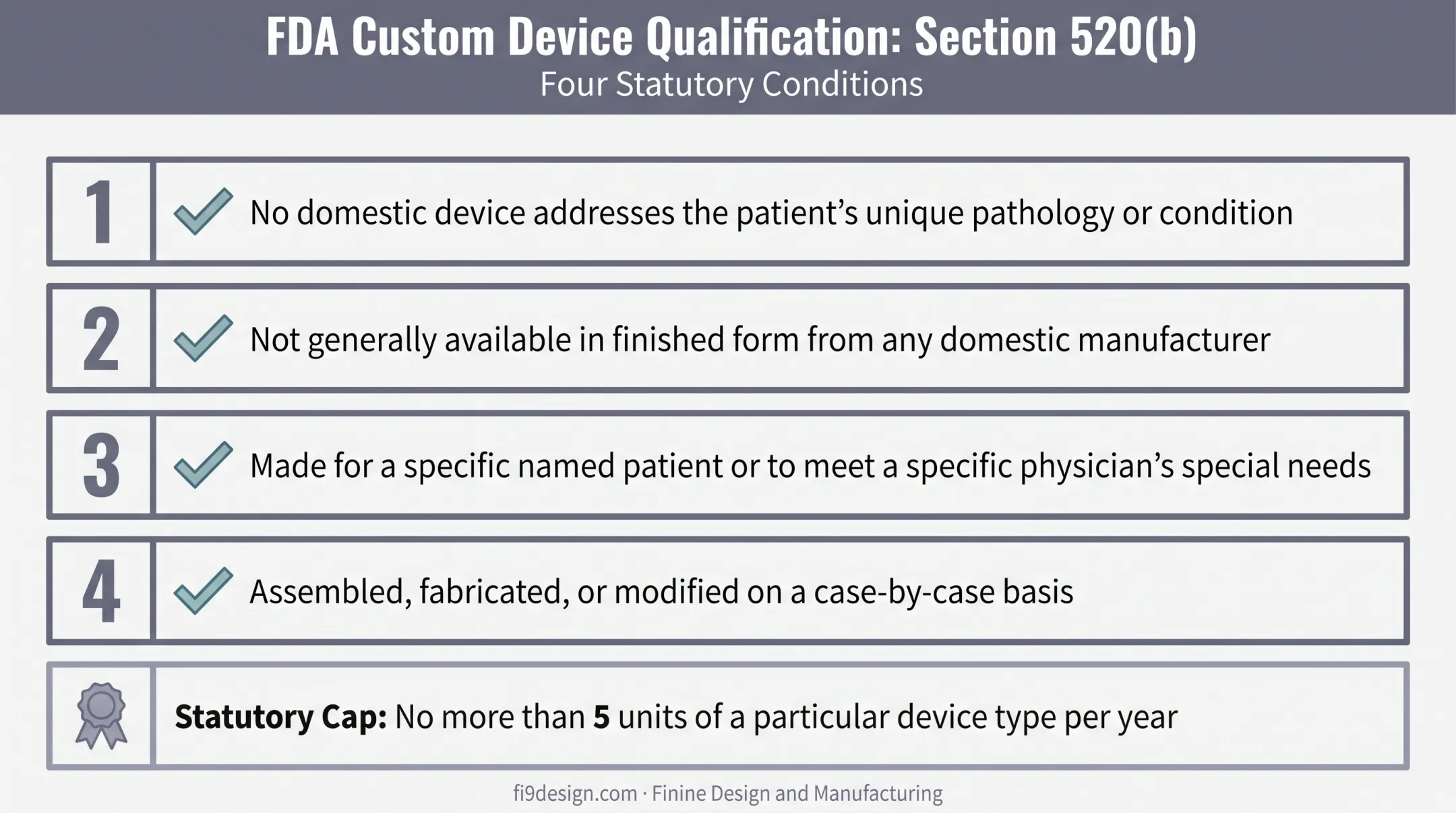

Section 520(b) of the FD&C Act exempts certain devices from standard premarket requirements (like 510(k) clearance or PMA). The exemption covers devices built to an individual physician's or dentist's order for a patient with a unique condition. According to FDA's 2014 custom device guidance, it applies only when:
- No domestically available device addresses the patient's unique pathology
- The device is not generally available in finished form through labeling or advertising
- The device is made for a named patient or a specific physician's specialized need
- Assembly occurs on a case-by-case basis
There's also a hard cap: manufacturers can produce no more than 5 units per year of a given generic device type under this exemption.
Custom vs. Patient-Matched: A Critical Distinction
Confusion between the two labels causes real compliance risk. A device that is only resized or reshaped for each patient is typically patient-matched, not custom. Common examples include a milled dental abutment or a 3D-printed surgical guide built to a preapproved plan. FDA's guidance on orthopedic guides explicitly separates these categories.
Misclassifying a patient-matched device as "custom" to dodge premarket requirements isn't a paperwork technicality. It can expose a manufacturer to enforcement action, since the exemption was never intended as a general escape hatch from FDA oversight.
For Finine Design and Manufacturing, which supports dental and orthopedic product development, that distinction drives documentation, design controls, and production planning from the first project scope.
What Are the Four Categories of Medical Devices?
What Are the FDA Categories of Medical Devices?
FDA sorts roughly 1,700 device types across 16 medical specialty panels into three risk classes. Custom devices are a separate statutory pathway, not a fourth class.
| Class | Risk Level | Typical requirement |
|---|---|---|
| Class I | Low risk | General controls; many are 510(k)-exempt |
| Class II | Moderate risk | 510(k) clearance |
| Class III | High risk / life-sustaining | Premarket Approval (PMA) |
Practical notes for dental and orthopedic work:
- Class I: Basic hand instruments and non-implantable orthotic accessories; about 74% of Class I types are 510(k)-exempt
- Class II: Most 510(k)-cleared orthopedic and dental hardware
- Class III: Implantable or life-sustaining devices that need full PMA-level evidence
- Why it matters: Class drives documentation load, testing scope, and timeline
Custom devices can qualify for exemption from Sections 514 and 515 under FD&C Act §520(b) when statutory limits are met. That path is narrow. Some patient-matched implants still fall under standard Class II or III review.
Exempt custom devices still face Quality System requirements, Medical Device Reporting, and labeling rules. Classification shapes manufacturing controls for the full product life cycle—not only the initial submission.
Examples of Custom Medical Devices
Custom and patient-matched devices show up across several clinical categories:
- Custom orthopedic implants: hip or joint replacements built beyond standard size envelopes for unusual anatomy
- Patient-specific surgical guides: used to execute a preapproved surgical plan (typically patient-matched, not custom under FDA's strict definition)
- Custom dental prosthetics: crowns, bridges, and appliances milled or printed to fit individual oral anatomy
- Prosthetic limbs: sockets and components shaped to a patient's residual limb
- Custom orthotics: foot and ankle devices built from patient scans
Where 3D Printing Fits

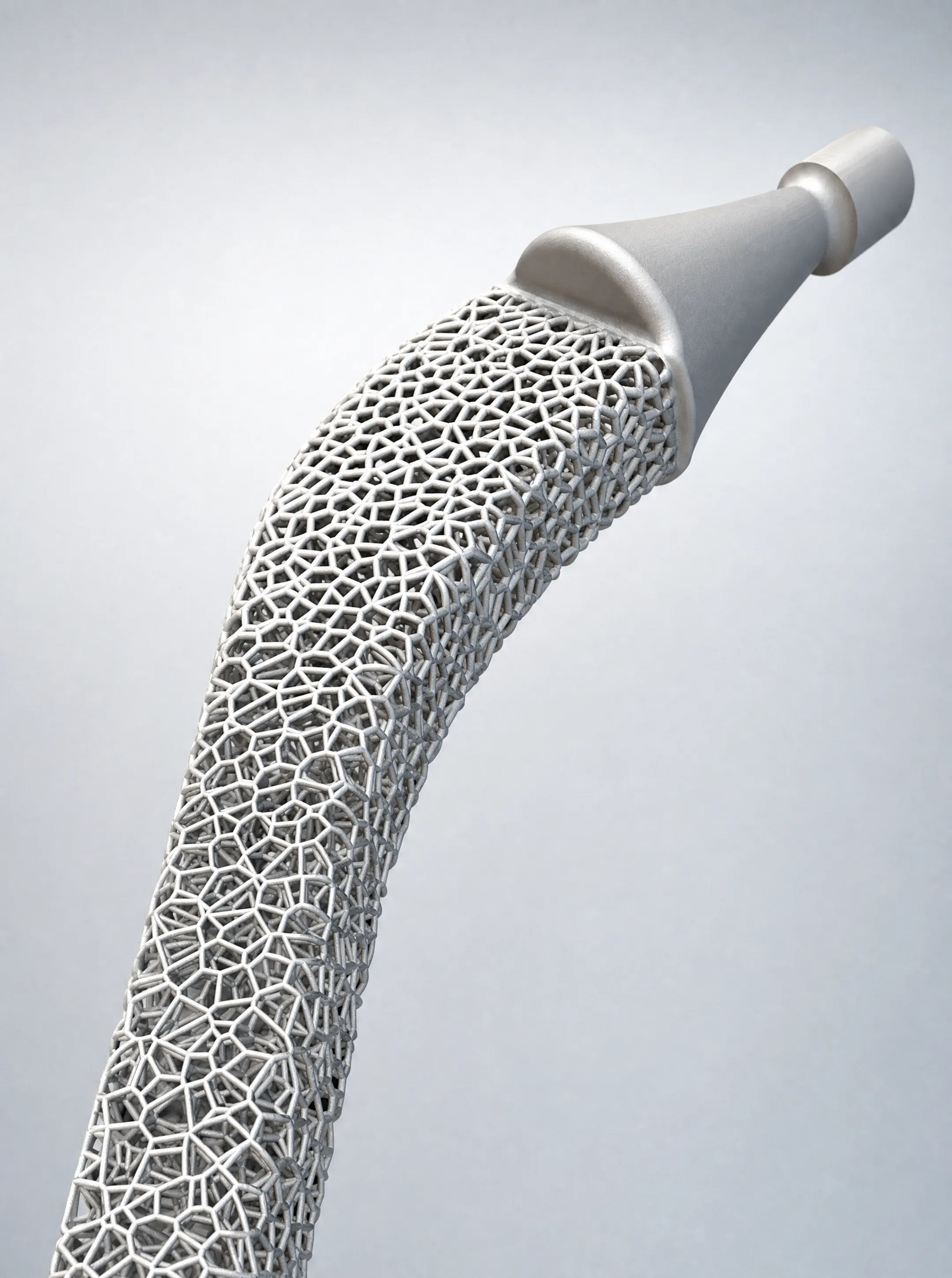

Additive manufacturing lets designers build directly from CAD or scan data, layer by layer. FDA notes that this technology now produces orthopedic and cranial implants, surgical instruments, dental crowns, and external prosthetics, often with internal lattice structures traditional machining cannot replicate.
CNC machining still plays a critical role, particularly for production-grade components requiring tight tolerances. Finine Design and Manufacturing applies CAD modeling with both methods across dental and orthopedic programs, so teams can match process choice to geometry, material, and production volume.
Regulatory Pathway and Compliance for Custom Devices
Even a legitimately exempt custom device does not escape FDA oversight. The obligations below still apply.
ISO 13485 and Quality Systems
ISO 13485 is the internationally recognized quality management standard for organizations involved in designing, producing, and servicing medical devices. FDA's Quality Management System Regulation, effective February 2026, incorporates ISO 13485:2016 by reference. FDA does not issue certificates or accept certification as a substitute for inspection.
Registration, Listing, and GMP
Custom device manufacturers, domestic or foreign, must still:
- Register their establishment with FDA and pay the applicable fee
- List each device in FDA’s device listing
- Follow Good Manufacturing Practice requirements under 21 CFR Part 820
- Comply with Medical Device Reporting, labeling, and corrections/removals rules
None of this disappears just because a device qualifies for the Section 520(b) exemption.
Importing a Medical Device
If you're bringing a device into the US, entries go through Customs and Border Protection, which refers FDA-regulated products to FDA for review. You'll need:
- Country of production and manufacturer information
- FDA product code and intended-use code
- Registration and listing data
- Premarket status documentation (510(k), PMA, or exemption basis)
FDA can request samples, additional data, or detain shipments that don't meet requirements.
Labeling a device "custom" to sidestep premarket review carries real consequences: warning letters, forced recalls, and potential legal exposure. FDA guidance is clear that the exemption is not a general workaround. Manufacturers must document that every statutory condition was met.

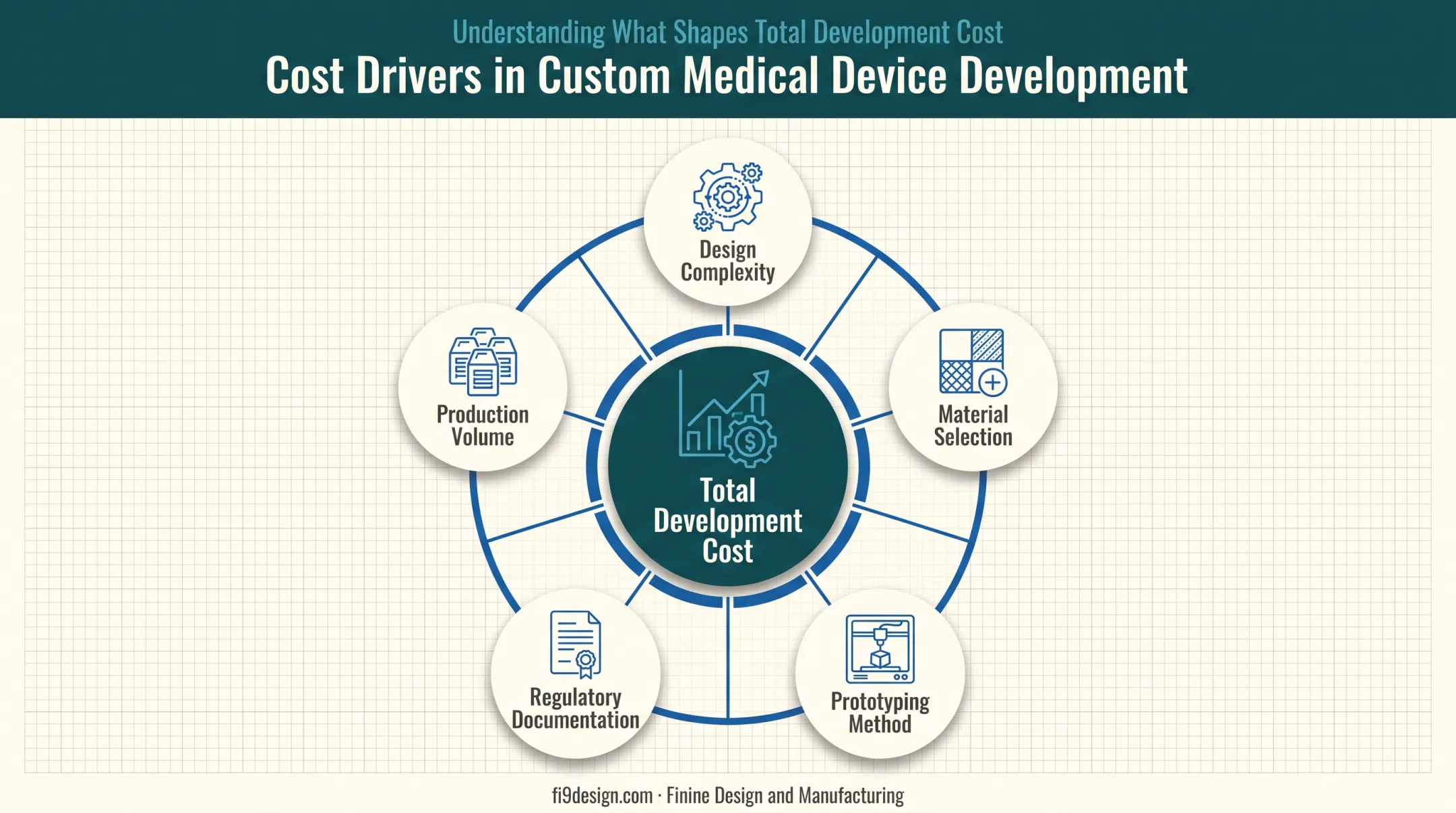

How Much Does It Cost to Develop a Custom Medical Device?
There's no universal price tag for custom medical devices. Costs swing widely based on several factors:
- Design complexity: a simple orthotic costs far less to engineer than a patient-specific implant
- Material selection: surgical-grade titanium raises material and machining cost versus medical-grade polymer
- Prototyping method: 3D printing, CNC machining, and urethane casting each carry different cost structures
- Regulatory documentation: custom devices need case-by-case justification records; Class II/III devices need extensive testing files
- Production volume: one-off custom units cost more per piece than short production runs
Prototyping choices often drive both timeline and total spend. Because scope varies so much project to project, published averages rarely match what you will actually budget.
One practical way to control costs is to work with a single partner for design, prototyping, and production instead of separate suppliers at each stage. Fewer handoffs mean less redundant tooling, fewer delays, and less miscommunication—usually the largest hidden cost in device development.
Choosing the Right Manufacturing Partner for Custom Medical Devices
Not every contract manufacturer is equipped for the documentation and precision that custom medical work demands. Look for a partner offering:
- In-house prototyping across 3D printing, CNC machining, and urethane casting—so you're not waiting on outside vendors
- Cross-industry quality discipline (including aerospace and defense practices applied to medical work)
- Fast turnaround on tight-tolerance parts without cutting corners on precision
- A defined path from prototype to production, including injection molding when you're ready to scale
Finine Design and Manufacturing, based in San Diego, runs that span under one roof: CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting. For dental and orthopedic product teams, one partner from design through finished part cuts the miscommunication that shows up when those stages sit with separate vendors—and shortens the path to production.
Frequently Asked Questions
What is ISO 13485?
ISO 13485 is the international standard for quality management systems specific to medical device manufacturers. It covers design, production, installation, and servicing requirements throughout a device's lifecycle.
How do I import a medical device into the US?
You'll need FDA establishment registration, device listing, and documentation showing your premarket status (510(k), PMA, or exemption basis). Entries go through CBP, which refers FDA-regulated products for review.
What are the FDA medical device classes?
FDA groups devices into Class I (low risk, general controls), Class II (moderate risk, typically 510(k)), and Class III (high risk, PMA). A separate custom device exemption under Section 520(b) covers narrowly defined, physician-ordered devices.
What are examples of custom medical solutions?
Common examples include:
- Custom orthopedic implants and patient-specific surgical guides
- Custom dental prosthetics and orthotics
- Prosthetic limbs
Many of these technically qualify as "patient-matched" rather than FDA "custom" devices.
How much does it cost to develop a medical device?
Costs vary significantly based on design complexity, materials, prototyping method, and regulatory pathway. Getting a tailored quote from a development partner is the most reliable way to estimate your project's budget.
