This happens more often than teams admit. Flexible parts behave differently once they're physical objects instead of mesh files, and silicone's elasticity, compression set, and cure behavior simply don't show up in CAD software.
Silicone rapid prototyping solves this by producing functional silicone parts using soft tooling or low-volume molding methods before you invest in expensive production tooling. This article covers the process, the available methods, realistic cost and timeline expectations, and how to choose a manufacturing partner, especially if you're in a regulated space like medical or automotive.
Key Takeaways
- Silicone prototyping validates fit, feel, and function before committing to hard tooling
- Method choice (RTV casting, compression molding, LSR injection) depends on volume and tolerance needs
- Material selection, including Shore hardness and cure chemistry, matters as much as mold method
- A single manufacturing partner cuts vendor handoffs and speeds development
What Is Silicone Rubber Rapid Prototyping?
Silicone rapid prototyping means building early-stage silicone parts, using soft molds, cast tooling, or (in limited cases) additive methods, to confirm a design works before cutting production-grade tooling. It's a checkpoint, not a shortcut around production.
That checkpoint only works if you pick the right elastomer for the job—so the material question comes first.
Is silicone basically rubber? Not exactly. Silicone rubber is a synthetic elastomer built on a silicon-oxygen backbone, distinct from natural rubber's carbon-based structure. Both flex and recover their shape, but chemistry, temperature tolerance, and aging behavior differ substantially.
Silicone also gets compared to thermoplastic elastomers (TPE). TPEs process like standard thermoplastics—melting and reforming without a permanent crosslinked network. Once cured, silicone holds a fixed molecular structure that doesn't remelt.
Silicone vs. TPE for Prototyping
Choose based on the application, not habit:
- Silicone — Sustained heat (up to ~300°C in some grades), repeated compression, and medical-adjacent contact
- TPE — Cost-sensitive programs headed for thermoplastic injection molding, where scrap reprocessing matters
If the end product must survive an autoclave or years of gasket compression, silicone is usually the safer prototyping material.
If you're prototyping a consumer part bound for high-volume thermoplastic production, TPE may mirror the final process more closely.

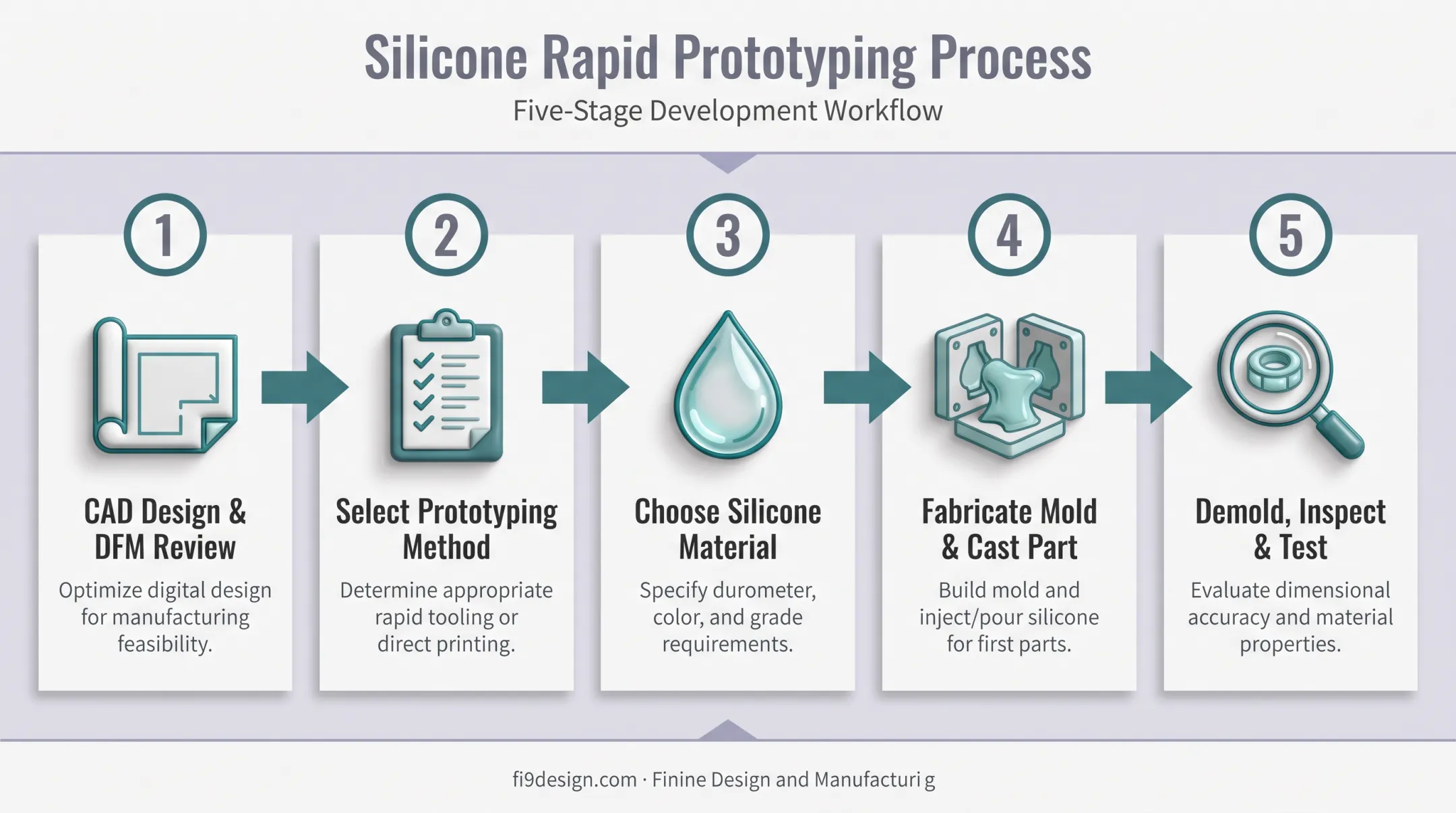

The Silicone Rapid Prototyping Process: Step-by-Step
Most silicone rapid prototypes follow the same five-stage path. Work each stage carefully and you avoid flash, trapped air, and parts that fail functional tests.
CAD design and DFM review. Check wall thickness, draft angles, and parting line placement before any mold is cut. Thin walls can go down to roughly 0.010 inches in liquid silicone rubber (LSR), but adjacent thick sections change flow and cure behavior, according to Protolabs' LSR design guidelines. Skip this review and flash or trapped air usually follows.
Select the prototyping method. Match the process to part quantity, geometry complexity, and tolerance needs. A concept check can run looser than a pre-production validation build.
Choose the right silicone. Factor in:
- Shore A hardness (softer for seals, firmer for structural flex)
- Platinum-cure versus condensation-cure chemistry
- Biocompatibility requirements for skin or tissue contact
Fabricate the mold and cast the part. CNC-machine, 3D-print, or cast the mold based on the method you chose. Mix the silicone, pour or inject it, then cure at room temperature for RTV processes or with heat for heat-cure systems.
Demold, inspect, and test. Verify dimensions, then run compression, sealing, and heat-cycling checks before you commit to production tooling.
Can you 3D print silicone?
Direct silicone 3D printing exists, but it is still limited. A 2025 review of additive manufacturing for biomedical silicone shows it can build complex geometries—including internal channels and overhangs—yet slow print speeds, curing challenges, and weak scalability keep it suited to selected prototypes, not production runs.
Wacker’s shutdown of its ACEO silicone printing service in 2021 is a reminder of how early-stage the tech remains. For most projects, mold-based methods are still the more dependable path.

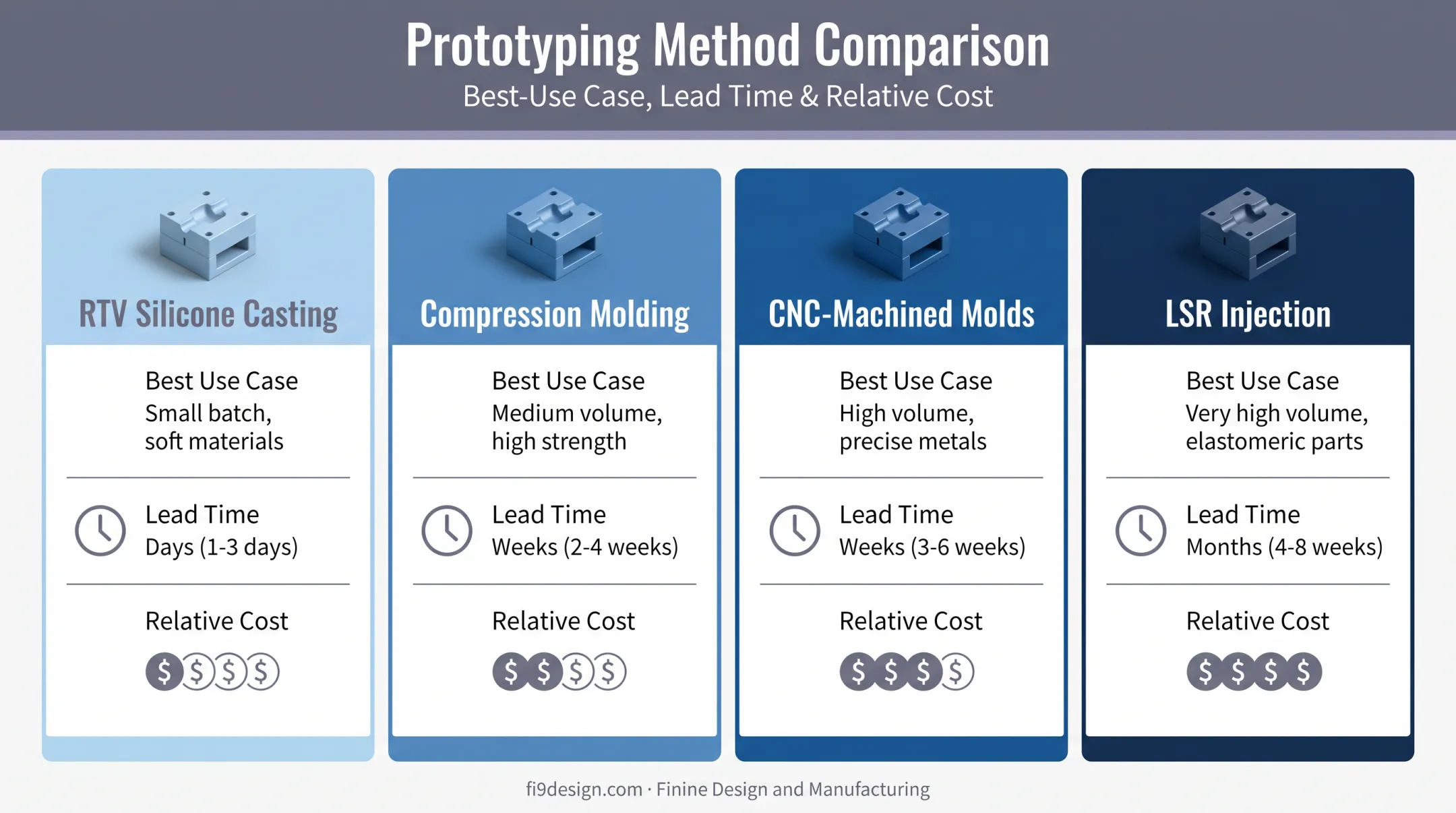

Comparing Silicone Prototyping Methods
Different methods fit different stages of development. Here's how the main options compare:
| Method | Best For | Typical Lead Time | Relative Cost |
|---|---|---|---|
| RTV silicone casting | Early concept checks | Days to 1-2 weeks | Lower |
| Compression molding | Functional testing, small batches | 2-4 weeks | Moderate |
| CNC-machined molds | Tighter tolerance prototypes | Varies by geometry | Quote-dependent |
| LSR injection (aluminum tooling) | Pre-production validation | 3 days to 6 weeks | Moderate to higher |
| These ranges come from published supplier examples, not fixed industry standards: |
- RTV tooling: ready in 2-5 business days; prototype budgets around $1,000–$2,500
- Compression molding: $3,000–$10,000 depending on cavity count and part complexity
- Aluminum LSR tooling: roughly $2,500–$15,000 depending on source and program scope How much does it cost to have a silicone mold made? There's no single number. Geometry, cavity count, tolerance requirements, and material grade all move the price:
- RTV molds tend to run lowest
- Compression molds sit in the middle
- Aluminum injection tooling costs more, but delivers production-equivalent material behavior Get a quote once your CAD and material spec are locked. Cost estimates before that point are guesses.
Why Choose Silicone Rapid Prototyping
Speed. Soft tooling moves from CAD to physical part in days rather than the weeks or months production steel tooling requires. That difference matters when a design still needs three or four iterations before it's ready.
Cost. Prototype tooling costs a fraction of production-grade steel tooling. That gap means more design iterations before locking in a final geometry, catching problems while changes are still cheap.

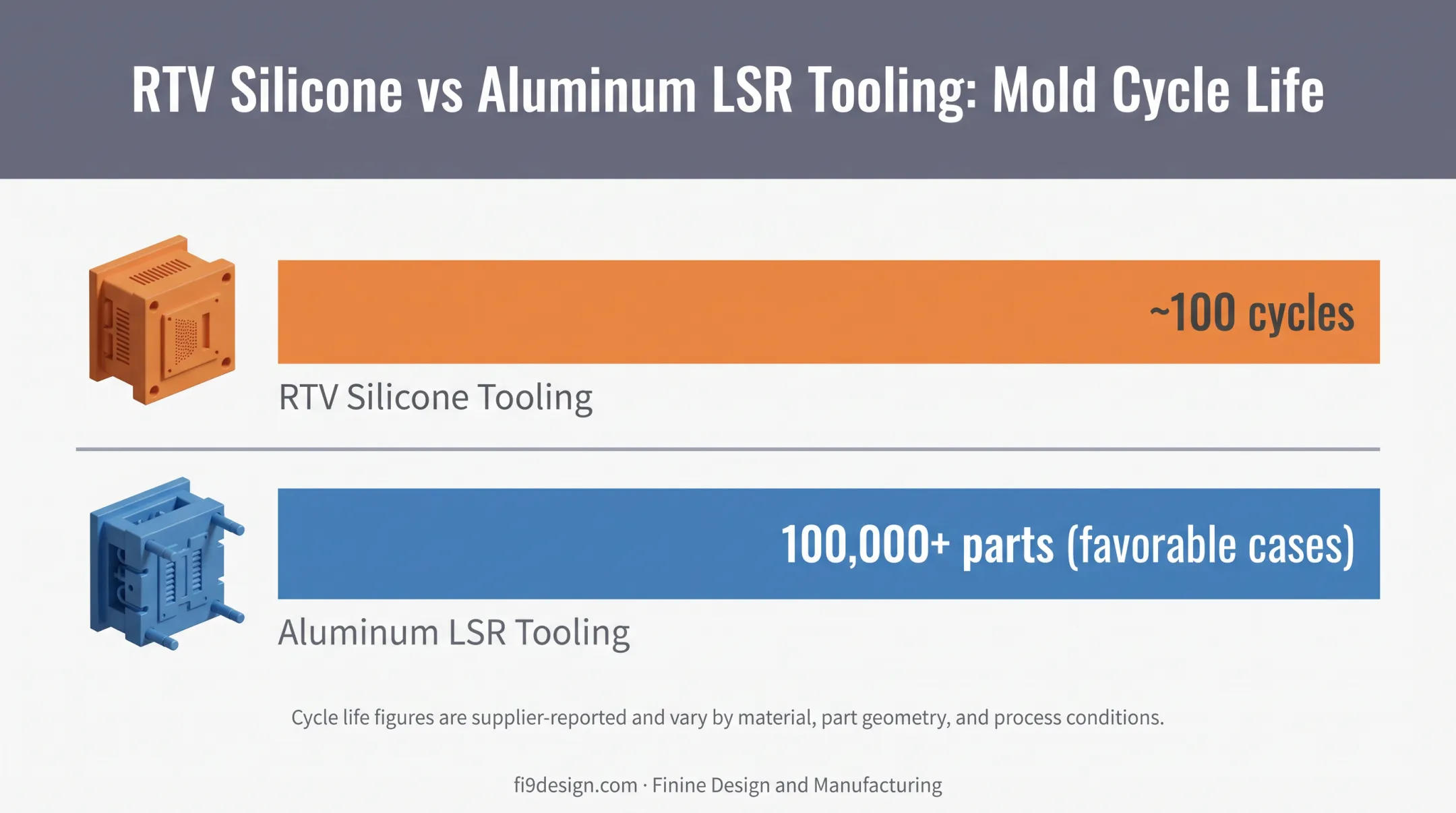

Low-volume flexibility. The same soft tooling that speeds iteration can also cover short production runs. Mold life depends on material and part geometry:
- RTV silicone tools: often rated for around 100 cycles
- Aluminum LSR tooling: single-cavity molds support low-volume runs; coated tools have reached well over 100,000 parts in favorable cases
Treat these figures as supplier-reported examples, not universal guarantees. Confirm cycle counts for the specific tooling and coating before you plan a production run around them.
Choosing the Right Prototyping Partner for Regulated Industries
Dental, orthopedic, military, and automotive programs carry extra weight: design changes, material certifications, and traceability all matter more than in a typical consumer product launch. Bouncing a project between a CAD firm, a mold shop, and a separate production manufacturer adds delay and risk at every handoff.
When you evaluate a prototyping partner for regulated work, look for three traits: in-house capability across multiple processes, cross-industry manufacturing experience, and a clear path from prototype to full production under one roof. That combination cuts the delays and miscommunication that come from managing separate vendors at every stage.
Finine Design and Manufacturing, based in San Diego, works across automotive, military, consumer electronics, and medical industries, with specific experience in dental and orthopedic sales and educational products. Its in-house capabilities include:
- CAD modeling and design refinement
- 3D printing and CNC machining
- Urethane casting using silicone molding for prototypes and low-volume production
- Injection molding and production painting
That range lets Finine carry a project from initial concept through short production runs without switching vendors mid-development. Regulated-industry clients get consistent documentation from prototype to production under one partner.
Frequently Asked Questions
What is a rapid prototyping model?
A rapid prototyping model is an early physical version of a part, built quickly to validate design, fit, or function before full production tooling. It catches problems while changes are still inexpensive.
How much does it cost to have a silicone mold made?
Costs vary by process and complexity:
- RTV casting: roughly $1,000–$2,500
- Compression molds: $3,000–$10,000
- Aluminum LSR injection tooling: $2,500–$15,000
Geometry, cavity count, and volume drive the final number.
What is the lifespan of a silicone mold?
It depends on mold material and part complexity. RTV tools may last around 100 cycles, while coated aluminum LSR tools often deliver thousands of parts when conditions are favorable. Confirm expected cycle life with your supplier.
Is silicone basically rubber?
Not technically. Silicone is a synthetic elastomer with a silicon-oxygen backbone, distinct from natural rubber. Both behave similarly in flexibility, but their underlying chemistry and performance differ.
Can you 3D print silicone?
Direct silicone 3D printing exists and can produce complex geometries, but speed, curing, and scalability limitations keep it suited to select prototypes rather than production-volume manufacturing. Mold-based methods remain more reliable for most projects.
Are there companies that make prototypes?
Yes. Specialized manufacturers like Finine Design and Manufacturing offer end-to-end prototyping and production services, combining CAD modeling, silicone molding, CNC machining, and injection molding under one roof.
