Rapid prototyping with 3D printing has replaced slow, expensive traditional methods like machining and hand-built models for one simple reason. It cuts the time between "idea" and "physical part you can hold and test."
This guide covers how the process works, which 3D printing method fits your prototype stage, what it actually costs, and why working with a full-service partner like Finine Design and Manufacturing can simplify the entire journey from concept to production.
Key Takeaways
- 3D printing turns product development from a weeks-long wait into a days-long sprint.
- FDM, SLA, and SLS each serve different fidelity needs: pick based on your testing goal, not just price.
- Prototype costs hinge on size, material, and technology—and still run far below traditional tooling.
- A one-stop-shop partner reduces vendor handoffs and keeps your timeline predictable.
What Is Rapid Prototyping in 3D Printing?
Rapid prototyping uses CAD software and additive manufacturing to build physical parts, layer by layer, straight from a digital model. Formlabs defines rapid prototyping as techniques used to quickly fabricate a physical part or assembly from a three-dimensional design.
Compare that to traditional prototyping:
- Injection molding — Tooling and setup come first, so low-volume custom prototypes get expensive fast
- CNC machining — One-off parts often need special fixturing and handling
- Hand-built models — Fine for early proof-of-concept, but hard to scale into functional testing

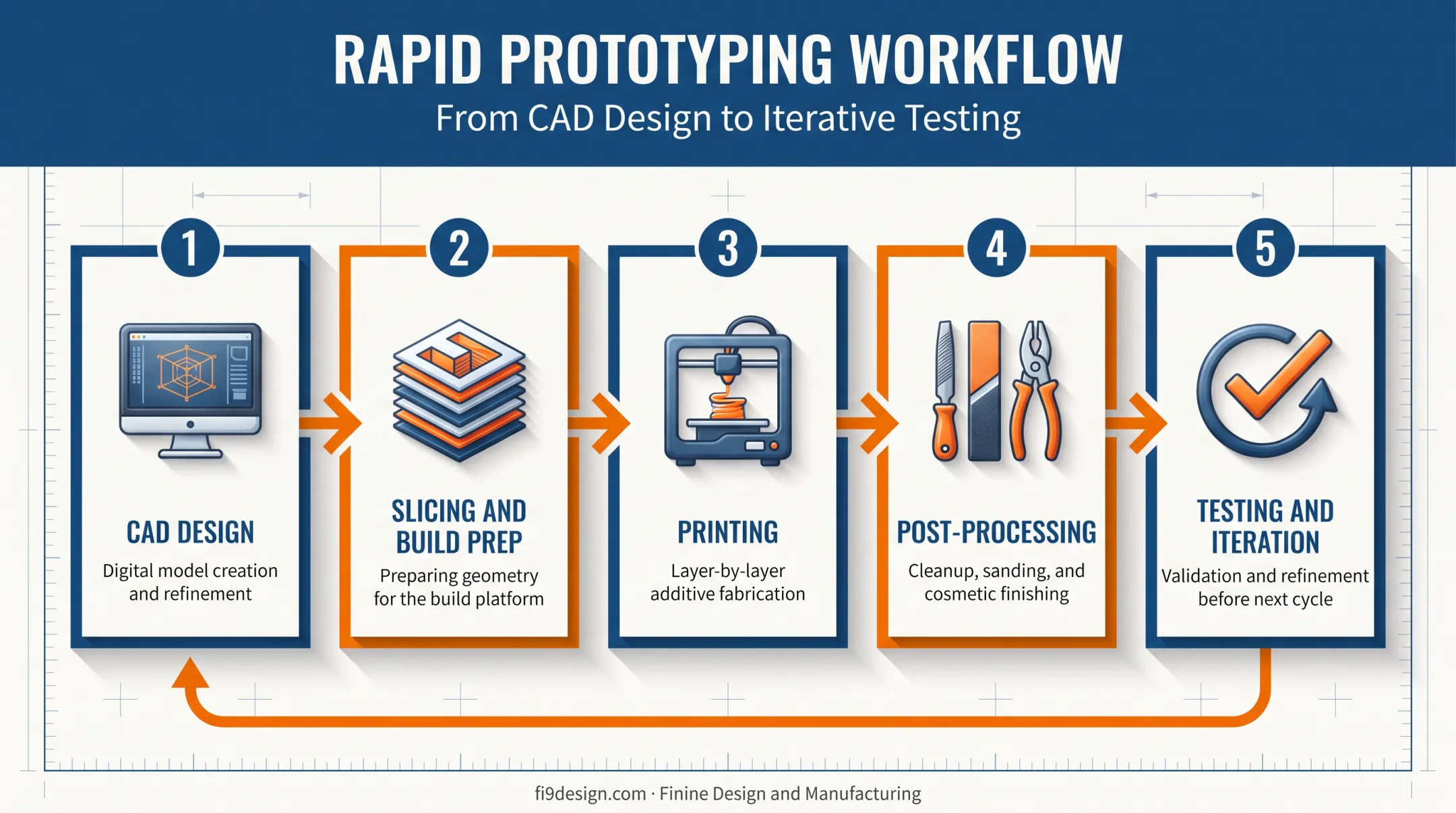

The typical rapid prototyping workflow looks like this:
- CAD design — Build or refine the digital model
- Slicing and build prep — Convert the model into machine-readable print instructions
- Printing — Layer-by-layer fabrication
- Post-processing — Support removal, curing, sanding, or painting
- Testing and iteration — Validate fit, function, or appearance, then revise the CAD file
That last step is the whole point. Because 3D printing doesn't require new tooling for every revision, teams can run this cycle several times in the span it once took to finish one round of machined prototypes. That speed is also why "3D printing" and "rapid prototyping" get used almost interchangeably — the technology created the modern practice.
Types of Rapid Prototyping and the Four Prototyping Stages
Not every prototype needs the same level of polish or performance. Matching the right prototype type to your development stage saves both time and budget.

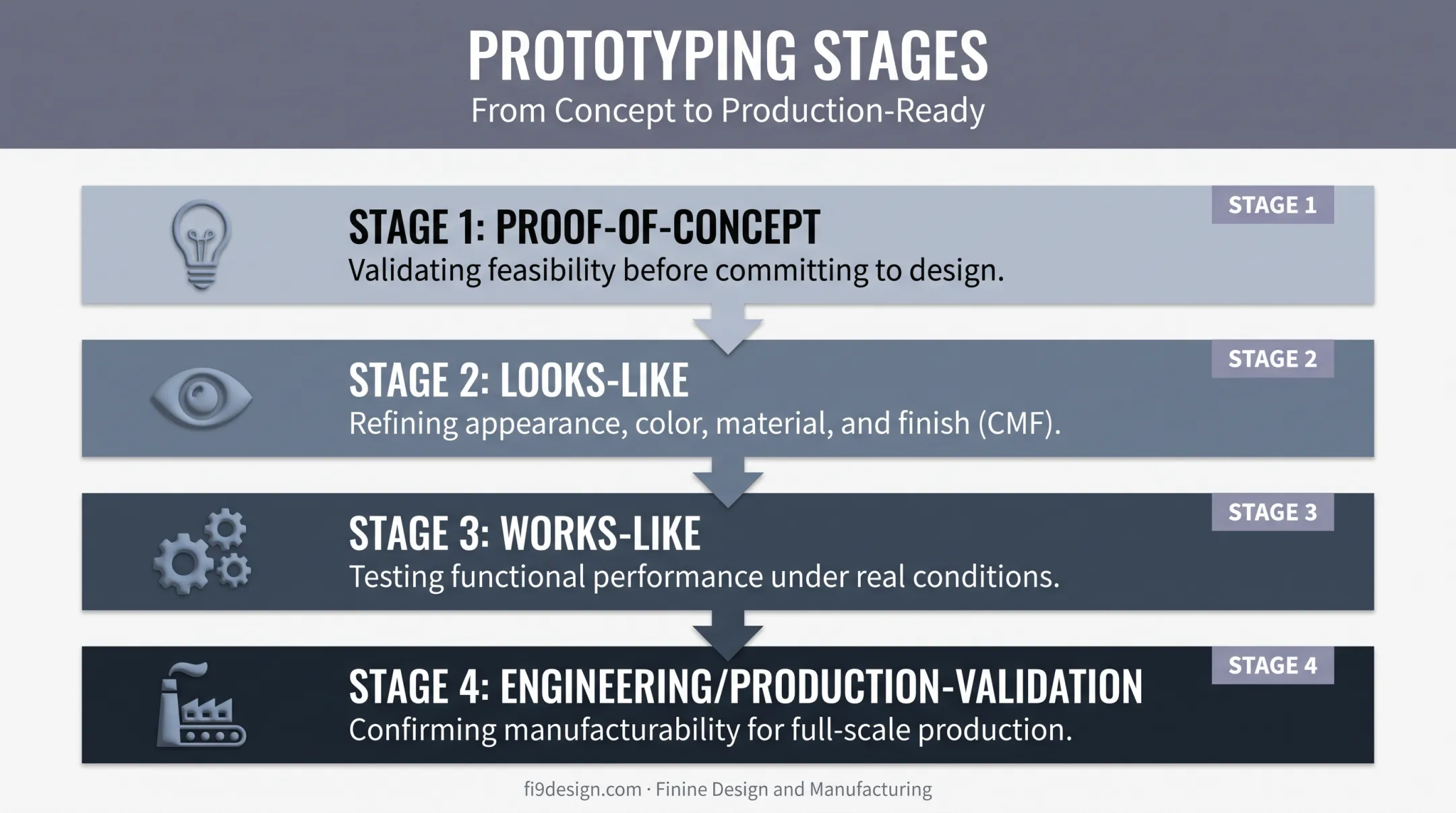

Most teams move through four prototype stages:
- Proof-of-Concept (POC) — Confirms the idea is feasible before you spend further. Skip finish quality and material matching; build only what tests the core assumption.
- Looks-like — After the concept holds up, shift to appearance, ergonomics, and CMF (color, material, finish). These are the models you hand to stakeholders or a focus group.
- Works-like (functional) — Exercises mechanical, electrical, or thermal performance under near-real conditions. Choose materials that mimic final properties, not just geometry—critical for fit, load, and safety checks in automotive, medical, and electronics parts.
- Engineering / production-validation — Bridges design and manufacturing with DFM checks and pre-production tests. Confirms the part can be made at scale before tooling money is committed.

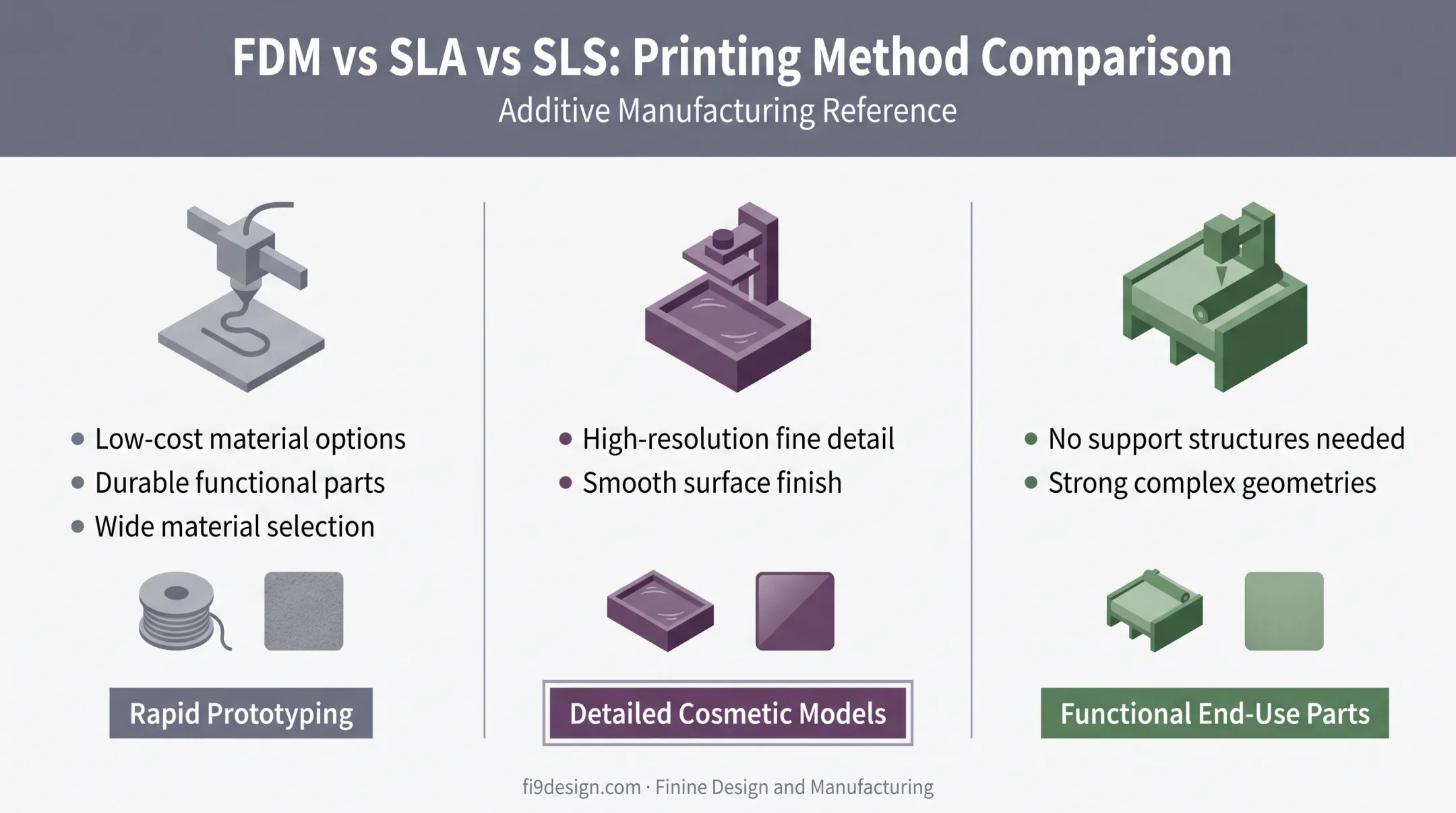

3D Printing Methods Used for Rapid Prototyping
Choosing the right printing technology depends on what you're trying to prove: shape, appearance, or function.
| Method | Strengths | Best For |
|---|---|---|
| FDM | Affordable, fast setup, simple materials like ABS and PLA | Basic form/fit checks, early-stage POC parts |
| SLA | High resolution (walls as thin as 0.2mm), smooth surface finish | Cosmetic prototypes, dental/medical-grade detail |
| SLS | Strong functional parts, handles complex geometries without supports | Interior features, undercuts, batch production of durable parts |
A quick technical comparison, based on Formlabs' technology breakdown:
- FDM parts are anisotropic (weaker between layers), so they're better for form and fit than heavy mechanical load.
- SLA delivers the highest detail and isotropic strength, but resin costs more and can be UV-sensitive long-term.
- SLS packs many parts into a single build, giving strong batch economics for functional prototypes.
Material choice drives your test results, too. A prototype meant for thermal testing needs a heat-resistant resin or nylon blend. One destined for dental or surgical planning may need biocompatibility certifications. Get this wrong, and your "successful" prototype test won't mean much once you scale to production materials.
How Much Does It Cost to 3D Print a Prototype?
There's no single industry-wide price sheet for 3D printed prototypes. Costs depend on:
- Part size and geometry: larger, more complex parts use more material and machine time
- Material: engineering-grade filaments and specialty resins cost significantly more than standard plastics
- Printing technology: FDM is generally cheapest; SLA and SLS cost more per part but deliver higher fidelity or strength
- Finishing requirements: sanding, painting, and cosmetic work add labor time
According to Stratasys Direct's pricing guide, quotes also shift based on support material needs, layer height, infill density, and turnaround urgency. There's no universal small-part or large-part price bracket. Every quote is project-specific.
Outsourcing vs. In-House: What the Data Shows

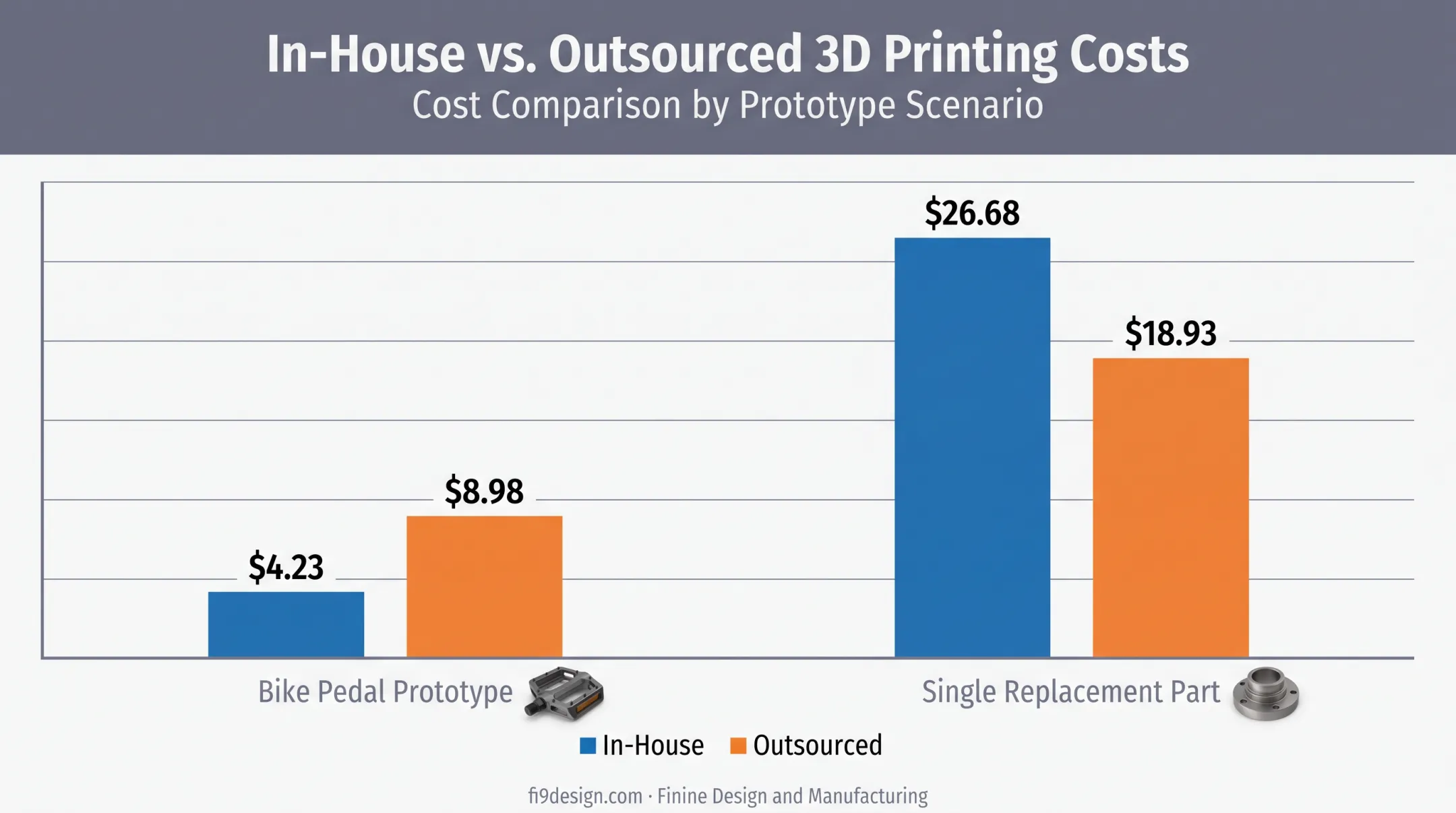

A Formlabs white paper comparing in-house SLS printing to outsourced service bureaus found meaningful swings depending on volume. A bike pedal prototype cost $4.23 per part in-house versus $8.98 outsourced. But for a single one-off replacement part, in-house actually cost more ($26.68 versus $18.93 outsourced) because labor wasn't spread across a batch.
The takeaway: unless you're printing constantly, owning equipment rarely pencils out. Occasional prototyping needs are almost always cheaper, and faster to launch, through an established partner who already has the machines, materials, and know-how in place.
From Prototype to Production: Why a Full-Service Partner Matters
Here's a scenario that plays out constantly in product development: your prototype vendor doesn't do CNC machining. Your machining shop doesn't do urethane casting. Your casting house doesn't handle injection molding or paint finishing.
Every handoff means a new file transfer, a new point of contact, and a new chance for miscommunication.
Finine Design and Manufacturing was built to eliminate that problem. Operating out of a San Diego facility, Finine offers:
- CAD modeling and design refinement
- 3D printing (FDM, SLA, SLS-style rapid prototyping)
- CNC machining for tight-tolerance parts
- Prototype and production urethane casting
- Injection molding for scaled production
- Production painting and cosmetic finishing
Rather than juggling five vendors, clients move through concept, prototype, and production under one roof. Finine's urethane casting service bridges 3D printing and injection molding — useful when you need production-representative parts before committing to full tooling.
Finine also brings specialized experience in dental and orthopedic medical products, alongside work supporting automotive, military, and consumer electronics clients. Medical development carries extra weight: biocompatibility, sterilization compatibility, and documentation requirements that a generalist shop may not be set up to handle.
For companies exploring a new project, Jaime serves as the primary point of contact (Jaime@fi9design.com) and can help walk through which services fit your prototype stage: whether that's a first-pass proof-of-concept model or a production-validation part ready for tooling.
Frequently Asked Questions
How much does it cost to 3D print a prototype?
Cost depends on part size, material, printing technology (FDM, SLA, or SLS), and any finishing work. Most jobs are quoted per project rather than from a fixed price list.
What is rapid prototyping in 3D printing?
Rapid prototyping uses CAD design and additive manufacturing to quickly produce physical parts for testing and validation. It replaces slower, tooling-dependent methods with faster iteration cycles.
What are prototyping services?
Prototyping services are outsourced providers offering design, 3D printing, finishing, and sometimes production support. They give companies access to equipment and expertise without buying machines outright.
What are the four types of prototyping?
Proof-of-concept (POC), looks-like, works-like, and engineering/production-validation prototypes. Each stage validates something different: feasibility, appearance, function, or manufacturability.
What are examples of prototyping?
Common examples include automotive part housings, medical device models, and consumer electronics casings. Prototypes can range from rough POC models to production-validation parts ready for tooling.
