Most paint failures trace back to a handful of root causes: a part that hasn't fully cured, leftover mold-release residue, insufficient surface abrasion, a primer or topcoat that's chemically incompatible with the resin, or a rigid paint applied to a part that needs to flex. This guide walks through how to tell if a urethane part is actually ready to paint, the step-by-step prep and application process, the variables that most affect results, and when skipping paint altogether makes more sense.
Key Takeaways
- A fully cured, contamination-free surface matters more than the paint brand you choose.
- Match primer and topcoat flexibility to the urethane's hardness and service conditions.
- Light abrasion plus several thin coats beats one heavy coat almost every time.
- Always test the full coating system on a sample before committing to production parts.

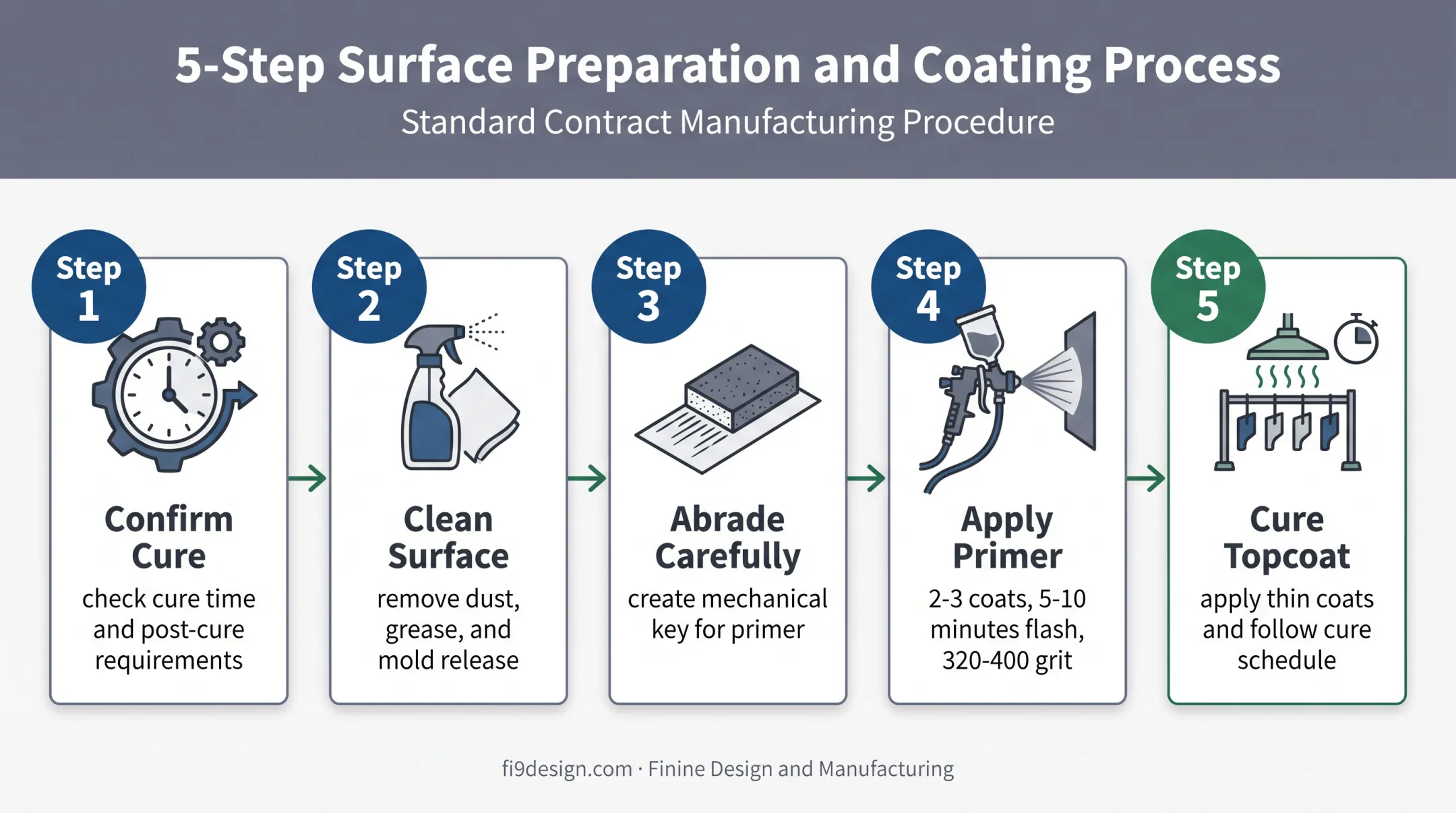

How to Paint Urethane Parts
Step 1: Confirm the Part Is Fully Cured
Check the resin manufacturer's technical data sheet for recommended cure time and any post-cure requirements. Cure schedules vary widely between resin systems, so don't assume a 24-hour window applies universally.
Inspect the casting for warning signs before you touch a brush or sprayer:
- Tackiness or an oily film on the surface
- Unusual softness compared to a known-good part
- Odd gloss or color variation across the surface
- Areas that feel uncured when pressed
Smooth-On's own troubleshooting guidance ties oily, partially cured castings to separated resin components that weren't mixed thoroughly before pouring.
If a part feels slippery or sticky after cleaning and drying, don't paint it. Fix the casting or curing issue first, since paint applied over an under-cured surface tends to stay soft, peel, or never bond properly.
Step 2: Clean and Inspect the Surface
Remove dust, fingerprints, grease, and mold-release residue using a cleaning method confirmed safe for your specific urethane. A mild detergent-and-water wash is a reasonable starting point for most resins.
Rinse thoroughly and let the part dry completely before sanding or priming. Trapped moisture or leftover cleaner will interfere with adhesion later. Pay close attention to recesses, seams, corners, and textured areas, where release agents and sanding dust like to hide.
Step 3: Abrade the Surface Carefully
A smooth, glossy casting gives paint almost nothing to grip. Lightly scuff those areas with a fine abrasive, or use a compatible blasting method on rigid parts, to create a mechanical key for the primer.
Go gentler on thin walls, sharp edges, soft urethane, and fine detail so you don't distort the part or sand away features you need. Clean the part again after abrading to remove dust and particles, and avoid handling the prepped surface with bare hands. Skin oils undo the work you just did.
Step 4: Apply a Compatible Primer
Not every product labeled "plastic primer" is formulated for cast urethane. SEM's High-Build Primer Surfacer, for example, specifically lists urethane as a compatible substrate and calls for 2-3 medium coats with 5-10 minutes flash time between each, followed by sanding at 320-400 grit.
Flexible parts generally need a flexible or flex-compatible primer system, since a rigid primer on a bending part is a near-guaranteed crack line.
Apply a light, even coat per the manufacturer's instructions, then watch the part for fisheyes, beading, lifting, or poor wetting. If you see a defect, stop and investigate contamination or incompatibility. Don't just spray another coat over it.
Step 5: Apply and Cure the Topcoat
Choose your topcoat system (acrylic, polyurethane, lacquer, or otherwise) based on adhesion, flexibility, UV exposure, abrasion resistance, and chemical contact requirements, not just how the color looks in the can.
Apply multiple thin, even coats rather than one thick one, letting each flash or dry as the data sheet specifies. Heavy film build extends drying time, traps solvents, and invites sagging or poor intercoat adhesion.
Once the topcoat is on, let the full coating system cure before handling, packaging, or assembly. Surface dryness isn't the same as full cure, so follow the manufacturer's cure schedule instead of guessing.
When to Paint and What You Need First
Painting makes sense when a part needs a specific color, logo, gloss level, or finish that the base resin can't deliver on its own. Every coating step still adds process time and another chance for defects.
Equipment and Work-Area Requirements
A basic urethane painting setup needs:
- Cleaning supplies and lint-free wipes
- Suitable abrasives for the resin's hardness and detail level
- Compatible primer and topcoat
- Mixing and measuring tools
- Spray, brush, or airbrush equipment
- Drying racks and good inspection lighting Ventilation matters too. Review the coating's Safety Data Sheet before using any solvent, and set up appropriate respiratory, skin, and eye protection along with safe disposal procedures.
Inputs, Materials, and Conditions
Before choosing a coating system, confirm:
- Urethane type and Shore hardness — rigid parts and flexible parts need different systems entirely.
- Cure status — only paint parts you know are fully cured.
- Surface texture and desired finish — gloss, matte, or textured.
- Service conditions — UV exposure, chemical contact, handling wear. Control temperature, humidity, and airflow within the ranges the paint and resin manufacturers specify, and document exactly what you used for repeat production runs.

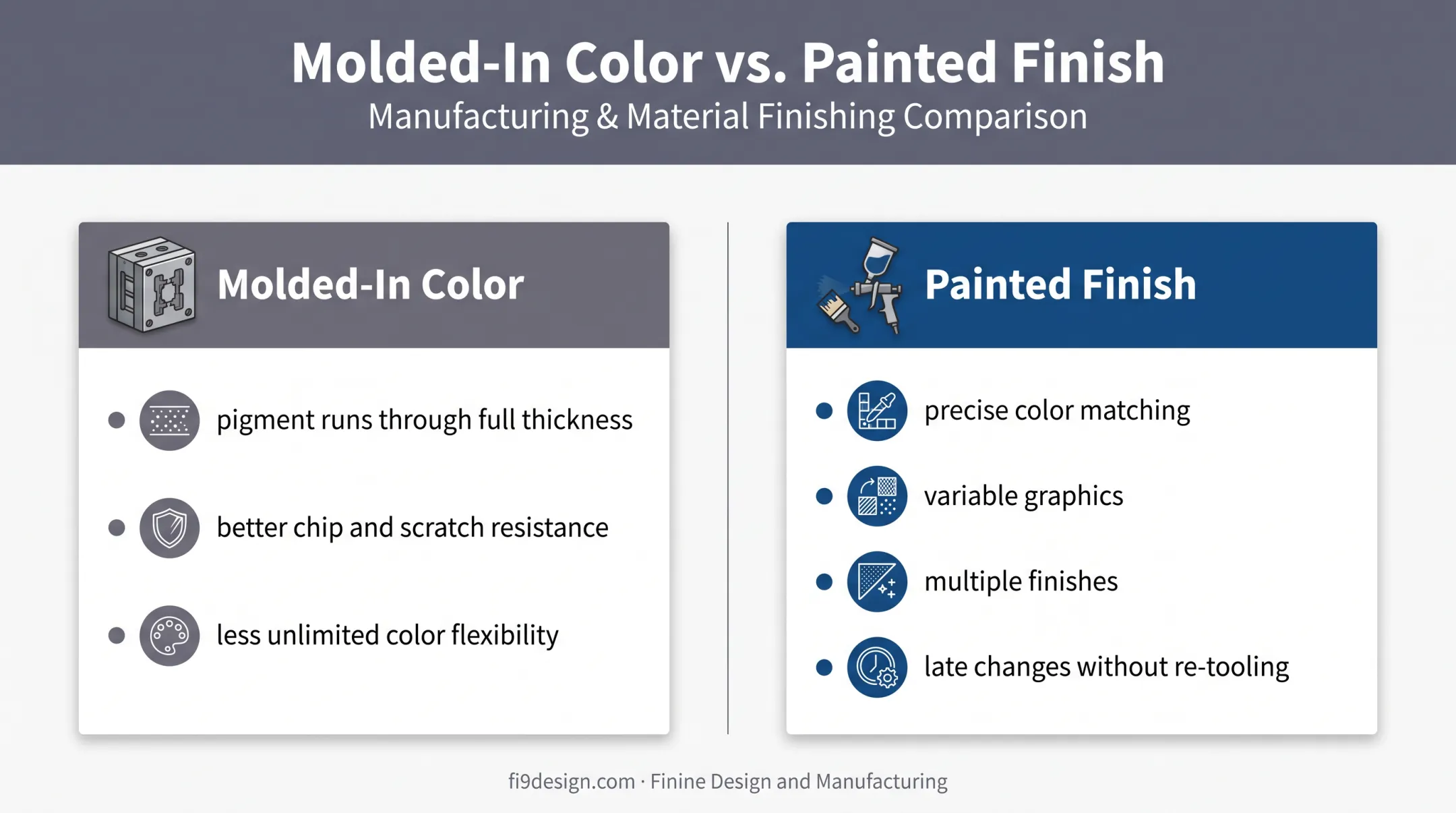

Alternatives to Painting Urethane Parts
Painting isn't the only way to color a urethane part. Molded-in color (pigment cast into the resin) runs through the full thickness instead of sitting as a surface film. That tradeoff favors chip and scratch resistance when you don't need unlimited color flexibility. Painting still wins for precise color matching, variable graphics, multiple finishes on one part, or late design changes without re-tooling. For prototypes and low-volume runs, one partner for casting and painting removes the back-and-forth of shipping parts to a separate finisher. Finine Design and Manufacturing, based in San Diego, handles urethane casting and production painting in-house, including color matching, cosmetic finishing, and surface prep. That setup keeps timelines tighter when designs are still changing late in a project.
Key Parameters That Affect Results When Painting Urethane
Paint adhesion and appearance come down to how the part, the coating system, and the application environment interact. Manufacturer data sheets, not universal rules of thumb, should drive your decisions here.
| Parameter | Why It Matters | What to Do |
|---|---|---|
| Hardness and flexibility | Rigid and flexible urethanes move differently in service; a hard coating can crack on a part that flexes | Use a flex-rated primer and topcoat on elastomeric or repeatedly bending parts |
| Cure quality | Incorrect mix ratios, poor mixing, or moisture can leave a surface oily or chemically active | Inspect before coating; reject suspect parts rather than painting over the problem |
| Surface cleanliness | Mold release, grease, and dust cause beading, fisheyes, and peeling | Follow a repeatable cleaning sequence and verify stubborn release agents with the material supplier |
| Abrasion profile | Glossy surfaces lack mechanical grip; over-sanding alters dimensions and detail | Match abrasion method to part thickness and cosmetic requirements |
| Film build and environment | Thickness, temperature, humidity, and flash time affect leveling, sagging, and intercoat adhesion | Stay within the coating's documented application window |
Casting-specific guidance from resin suppliers backs the hardness point. Formulations for cast polyurethane below roughly Shore 90A often need primers and lacquers built with flex agents, because standard rigid coatings won't move with softer resin.
Use that Shore 90A threshold when you're unsure whether the part is flexible enough to need a different system.

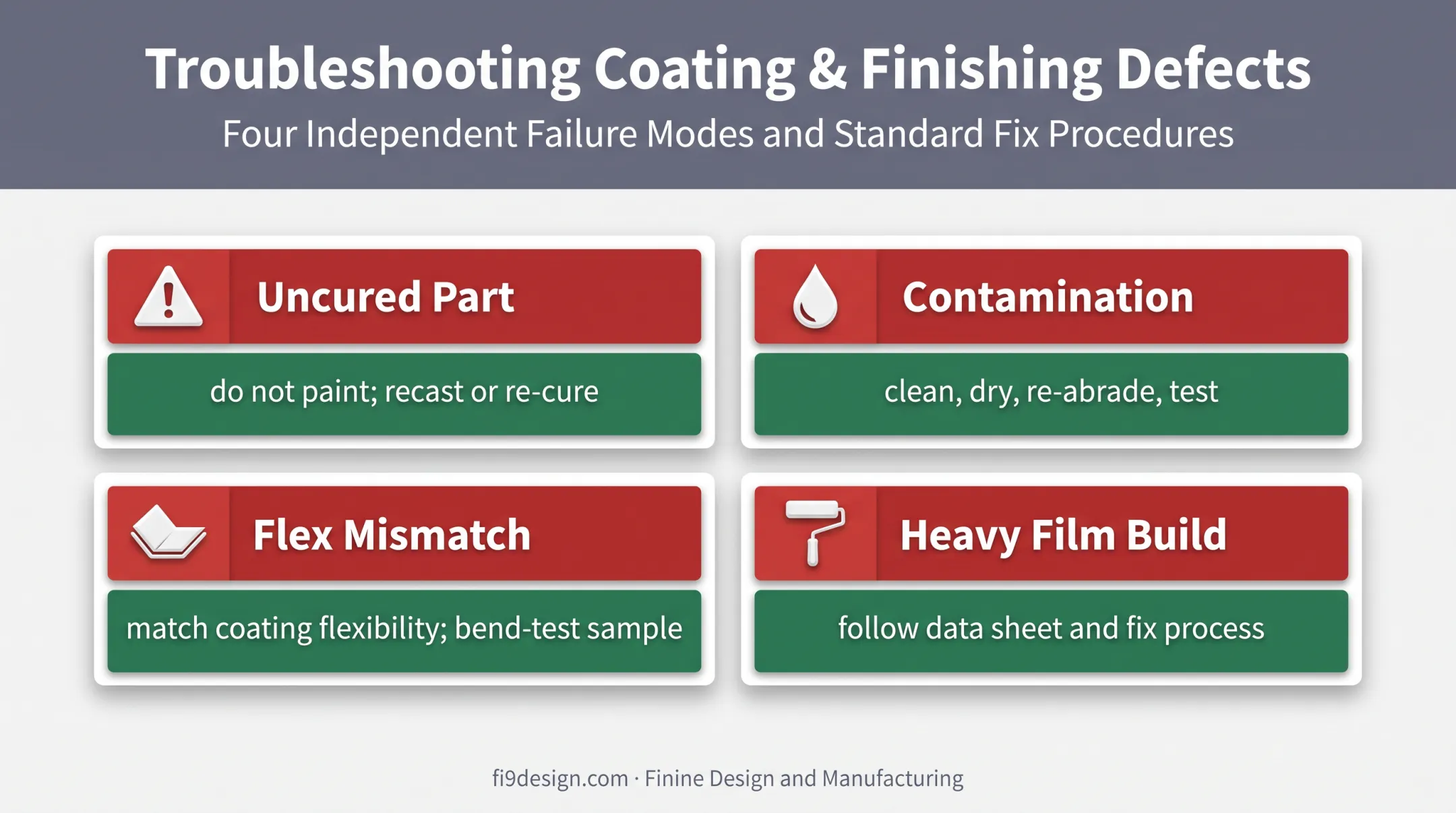

Common Mistakes and Troubleshooting
Most painting problems trace back to one of four things: cure state, contamination, surface profile, or excessive film build.
Skipping Preparation or Painting an Uncured Part
Oily or tacky urethane, an incorrect mix ratio, or residual release agent all point to the same fix: don't paint it. Inspect first, and recast or re-cure the part rather than trying to coat your way around the problem.
Paint Beads, Fisheyes, or Won't Wet the Surface
This almost always means contamination is still on the part:
- Silicone-based release agent
- Grease or fingerprints
- Incompatible cleaner residue
Clean again, dry completely, re-abrade in a controlled way, and run a small compatibility test before committing to the full part. Smooth-On's guidance on release removal notes that silicone residue is difficult to strip and can make painting nearly impossible without the right removal method.
Paint Cracks, Peels, or Scratches During Flexing
A rigid paint on a flexible urethane, inadequate primer, or poor abrasion are the usual culprits. Match coating flexibility to the part's Shore hardness, and verify adhesion on a test piece before painting production parts. A quick bend test on a sample tells you more than any spec sheet.
For more detail on matching coating systems to resin flexibility, see RAMPF's guidance on painting cast urethane parts.
Runs, Sags, Wrinkling, or Slow Drying
Heavy coats, wrong thinning ratios, bad temperature or humidity, or skipped flash time all show up the same way: a finish that looks wrong and takes forever to dry. Follow the coating's technical data sheet and fix the process instead of adding more paint on top of the problem.
Conclusion
Reliable urethane painting comes down to a short list of non-negotiables:
- Fully cured part before any prep or paint
- Thorough cleaning to remove mold release and oils
- Controlled abrasion for mechanical tooth
- Compatible primer and flexible topcoat
- Thin coats built in light passes
- Full cure time between coats and after the final coat
The right finishing approach balances appearance, flexibility, durability, repeatability, safety, and cost. When those demands get complicated, a manufacturing partner that handles both casting and painting removes a layer of guesswork.
Finine Design and Manufacturing integrates urethane casting with in-house production painting, including surface prep and cosmetic finishing, for teams that need a dependable finish without managing multiple vendors.
Frequently Asked Questions
What paint sticks to urethane?
Plastic-compatible acrylic, polyurethane, lacquer, or automotive-style coating systems can adhere well when the urethane is fully cured and properly prepped. Compatibility still depends on the specific resin, the primer, part flexibility, and the manufacturer's application instructions.
What is urethane paint used for?
Urethane paint provides durable decorative or protective coatings where color, gloss, abrasion resistance, chemical resistance, or UV performance matters. The exact formulation needs to match both the substrate and the part's actual service conditions.
How long after painting can I apply polyurethane?
Recoat or clear-polyurethane timing depends on the paint system, film thickness, temperature, humidity, and the manufacturer's instructions. Dry-to-touch, recoat-ready, and fully cured are three different conditions, so check the data sheet before assuming any one of them is good enough.
