Stereolithography (SLA) addresses part of that problem. It uses a laser or light source to cure liquid photopolymer resin into highly detailed parts, layer by layer. The result is smooth surfaces and fine geometry that make it a strong fit for automotive prototypes, visual models, and selected tooling.
This article covers where SLA earns its place in an automotive development program: concept models, fit checks, functional prototypes, tooling aids, and aerodynamic testing. It also covers material trade-offs, post-processing, and the point where SLA should hand off to CNC machining, urethane casting, or injection molding.
Key Takeaways
- SLA excels when precision, surface finish, and fast iteration matter more than production-grade thermoplastic durability.
- Automotive applications range from concept models and fit checks to tooling, aerodynamic models, and low-volume aftermarket parts.
- Resin choice must match the part's actual mechanical, thermal, and chemical demands, not a generic "plastic equivalent" assumption.
- Best results come when SLA is one stage in a larger workflow that transitions to CNC, casting, or molding.
What Is SLA 3D Printing and Why Does It Matter in Automotive Development?
Stereolithography is a vat-photopolymerization process. A laser selectively traces and cures cross-sections of liquid resin inside a build tank, solidifying one thin layer at a time until a complete part emerges.
Laser-based SLA sits alongside related resin methods that look similar on the shelf but differ in speed, resolution, and material compatibility:
- SLA — a laser traces and cures each cross-section point by point
- DLP — a projector flashes a full layer image at once
- MSLA/LCD — an LED array exposes resin through a pixelated mask

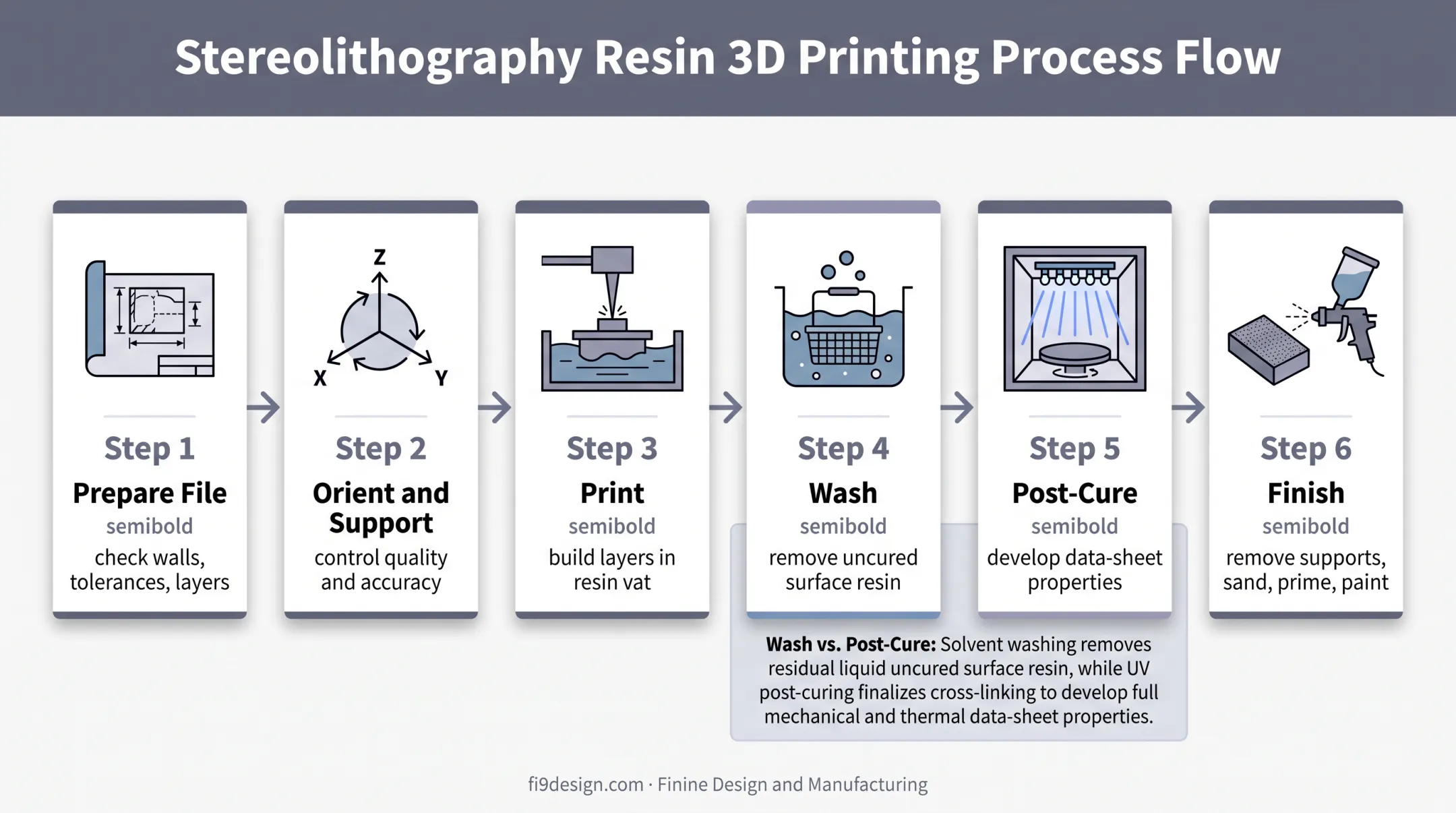

From CAD File to Finished Prototype
The typical automotive SLA workflow runs through several defined stages:
- Prepare the file — import the CAD model, check wall thickness and tolerances, and slice it into print layers.
- Orient the part and generate supports — orientation drives surface quality, accuracy, and how cleanly supports release later.
- Print — the laser builds the part layer by layer in the resin vat.
- Wash — strip uncured surface resin in isopropyl alcohol or a similar solvent.
- Post-cure — expose the part to UV light (and sometimes heat) so it reaches the mechanical properties on the resin data sheet.
- Remove supports and finish — sand, prime, paint, or coat as the review or display use case requires.
Washing and post-curing are not interchangeable steps. Washing removes uncured surface resin; post-curing is what actually develops the properties listed on a resin's data sheet.
Why Automotive Teams Rely On It
SLA's fine feature resolution and smooth finish make it useful for design reviews. A printed dashboard bezel or mirror housing can look and feel close to a finished part, which helps stakeholders evaluate styling, ergonomics, and assembly fit without guessing from a screen render.
Ford's PD Merkenich studio, for example, used a Form 3L laser SLA printer to produce exterior and interior prototypes for the new Explorer, including a mirror cap used for design and fit validation. The point wasn't to replace the production material — it was to confirm the geometry and assembly before committing to tooling.
The limitation to keep in mind: SLA parts are photopolymer resins, not injection-molded thermoplastics or machined metals. Their mechanical and thermal behavior can differ substantially from the production material, so any part destined for functional or long-term use needs its own validation.
Key SLA 3D Printing Applications in Automotive
SLA shows up across nearly every stage of vehicle development, from early styling reviews to shop-floor tooling. Here's where it earns its keep.
Concept and Appearance Models
Early styling reviews depend on parts that look right under studio lighting. SLA's smooth surfaces and fine detail support interior and exterior design evaluations, scale or full-size presentation models, and color-material-finish discussions.
Volkswagen and Autodesk used clear SLA resin to produce Type 20 concept hubcaps, later nickel-electroplated for a metallic finish (a design showpiece, not a production wheel claim).
Fit, Form, and Assembly Validation
Printed bezels, housings, brackets, ducting, and connectors let engineers check:
- Interface and clearance between mating components
- Fastener hole locations and alignment
- Assembly sequence before production tooling exists
- Ergonomic feel of switches, handles, and panel gaps
Functional Prototypes and Engineering Tests
Tougher or heat-resistant resins can support preliminary snap-fit, enclosure, or airflow evaluations. One supplier printed an intake manifold in Rigid 10K resin on a Form 3 and raced it on a pit bike.
That's a useful data point, but one race result doesn't qualify a resin for production service. Thermal cycling, fuel exposure, and fatigue loading all need separate validation.
Jigs, Fixtures, and Manufacturing Aids
Drill guides, inspection fixtures, assembly aids, and masking templates are strong SLA candidates, especially for short production runs. Pankl Racing Systems printed custom gearbox-assembly jigs on laser SLA equipment for a motorcycle gearbox program, a good example of application-specific tooling rather than a blanket replacement for machined fixtures.
Value here depends on expected load, temperature, chemical exposure, and how many times the fixture gets reused.
Aerodynamic, Fluid-Flow, and Thermal Models
Wind-tunnel models benefit from SLA's accurate geometry and smooth surfaces, which reduce unwanted drag from print texture. Stewart-Haas Racing and Ford used swappable SLA body-panel tiles during full-scale wind-tunnel testing for the 2024 NASCAR Ford Mustang Dark Horse. Interchangeable tiles let engineers test shape variations without rebuilding an entire model each time.
Aftermarket, Restoration, and Low-Volume Parts
Discontinued trim, bezels, and brackets are often easier to reproduce with SLA than to source from a closed production line. That said, parts exposed to sunlight, engine heat, fuels, or repeated vibration may need a tougher resin, or a transition to casting or machining once volume or durability requirements grow.
Materials, Design Considerations, and Post-Processing
Resin choice should follow the test objective, not the other way around. Common resin categories compare like this:
| Resin Category | Typical Strength Profile | Best Suited For |
|---|---|---|
| Standard/Clear | Moderate stiffness, lower impact resistance | Visual mockups, optical or lighting checks |
| Tough/Durable | Higher elongation, better impact resistance | Snap-fits, housings, handling prototypes |
| Flexible | High elongation (reported around 120%), low stiffness | Seals, gaskets, compliant parts |
| Rigid/Filled | High stiffness, elevated heat-deflection temperature | Fixtures, molds, heat-exposed tooling |
| Castable | Burns out cleanly, moderate strength | Sacrificial patterns for casting |
| High-Temperature | Elevated HDT claims | Heat-exposed prototype tooling |
Treat these figures as a starting point. Properties shift with the specific resin version, printer, and post-cure cycle.
A Rigid 10K specimen cured for 60 minutes at 70°C will not match one cured for 10 minutes. Always check the current manufacturer data sheet for the exact resin and printer combination.
Designing Around SLA's Constraints
A few design habits make a real difference in print quality:
- Orient parts to minimize visible support marks on cosmetic surfaces
- Avoid unsupported overhangs beyond the resin's practical limit
- Hollow large solid sections and add drainage holes to prevent trapped resin
- Leave extra stock on mating surfaces for sanding or machining
- Account for minor shrinkage when parts need to match production tolerances
Post-Processing and Environmental Checklist
Each post-print step affects final dimensions and surface quality. Budget time for all of them, not just the print:
- Washing and drying
- UV post-curing
- Support removal
- Surface finishing
Before deploying any SLA part beyond a pure visual check, run through this list:
- Will it see temperature cycling or under-hood heat?
- Will it contact oils, coolant, fuel, or cleaning chemicals?
- Is it exposed to sunlight or UV over time?
- Will it experience vibration, repeated loading, or impact?
A part meant only for a fit review has very different requirements than one bolted under the hood.
For every functional test, document:
- Resin and batch
- Printer settings and orientation
- Post-cure procedure
That record is what makes results repeatable later.
SLA vs. Other Manufacturing and 3D Printing Methods
Choosing between SLA, FDM, SLS, and traditional manufacturing comes down to what the part actually needs to prove.
| Method | Surface Finish | Material Behavior | Best For |
|---|---|---|---|
| SLA | Smooth, fine detail | Photopolymer resin; properties vary by formulation | Visual models, precision fit checks, selected tooling |
| FDM | Visible layer lines | Thermoplastic filament; generally tougher for large parts | Larger, more mechanically demanding prototypes |
| SLS | Slightly textured, no supports needed | Sintered nylon; often stronger and more heat/chemical resistant | Functional automotive components, complex unsupported geometry |
FDM tends to win on build size and material cost when a part doesn't need SLA's surface quality. SLS often makes more sense for functional components that need to survive heat or chemical exposure better than typical resin allows.

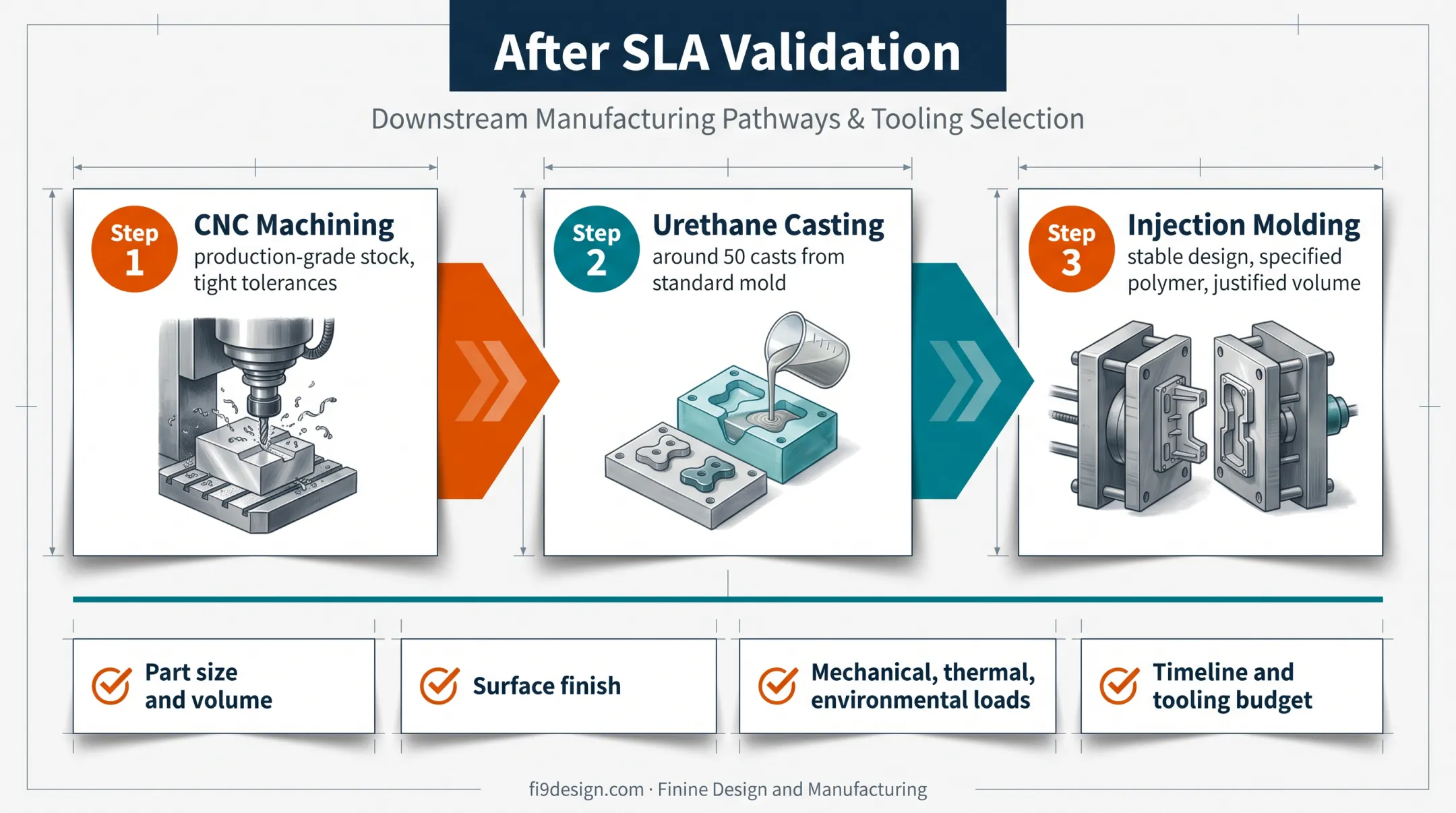

When to Move Beyond SLA
Three production processes typically follow SLA once a design is validated:
- CNC machining: Needed when the part requires a specific production-grade stock material, tight machined tolerances, or a durable long-term fixture.
- Urethane casting: Makes sense once repeated identical units justify a silicone mold from an SLA master. A standard mold typically yields around 50 casts before quality drops—useful for short runs.
- Injection molding: The right choice once the design is stable, the production polymer is specified, and volume justifies tooling investment.
A quick decision framework weighs:
- Part size and required volume
- Surface finish needs
- Mechanical, thermal, and environmental loads
- Timeline and tooling budget
A single-digit quantity of cosmetic trim pieces rarely justifies a production mold; a multi-thousand-unit run almost always does.
How to Apply SLA in an Automotive Development Workflow
A disciplined workflow keeps SLA useful instead of becoming a bottleneck of its own.
- Define requirements before printing. Nail down purpose, dimensions, interfaces, environmental exposure, test loads, quantity, and deadline. Review CAD for printability and decide whether prototype resin is enough or production-intent material behavior matters.
- Run an iterative build-test-refine loop. Print, post-process, inspect critical features, test fit or function, then feed findings back into the CAD model before the next print.
- Plan the next manufacturing step early. Decide whether the validated design moves to CNC machining, urethane casting, injection molding, or production painting. Keep inspection data and design revisions organized to avoid handoff errors.
A single development partner reduces that handoff friction. Finine Design and Manufacturing, based in San Diego, supports automotive clients across CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting under one roof. That structure means a prototype validated in-house can move toward production without re-explaining the project to a new vendor.
Evaluating an SLA Supplier
Print price alone is a poor filter. Look instead at:
- Design-for-additive support and manufacturability feedback
- Material documentation and batch traceability
- Inspection capability for critical dimensions
- Post-processing quality (sanding, priming, painting)
- Lead-time reliability and clear communication
- Whether the provider can also support later stages: machining, casting, or molding
Frequently Asked Questions
What is SLA in 3D printing?
SLA (stereolithography) cures liquid resin into solid layers with a laser or projected light. The process delivers high detail and smooth surfaces, which suits automotive design models and fit checks.
How long does automotive SLA prototyping usually take?
Many automotive SLA parts can be printed and finished in a few days, depending on size, quantity, and surface requirements. Complex assemblies or multi-part builds may need extra time for post-curing and finishing.
What are the most common SLA 3D printing applications in automotive?
Common uses include concept and appearance models, fit-and-form prototypes, functional test parts, jigs and fixtures, aerodynamic or fluid-flow models, and selected aftermarket or low-volume components.
Are SLA 3D printed parts strong enough for automotive use?
Strength depends on the resin, part geometry, print orientation, and post-curing process. Many SLA parts work well for prototyping or light-duty applications, but safety-critical or long-term production parts need separate material validation.
Which resin is best for automotive SLA prototypes?
It depends on the priority: appearance, toughness, flexibility, heat resistance, chemical exposure, or dimensional stability. Review the current technical data sheet for the specific resin and printer before committing to a material.
Is SLA better than FDM for automotive parts?
SLA generally delivers finer detail and smoother surfaces, while FDM often offers larger build volumes and lower material costs with familiar thermoplastics. The better choice depends on what the specific part actually needs to prove.
