Skip it or rush it, and you're not just risking a bad-looking finish. You're risking adhesion failure, corrosion creeping in under the paint, and rework that costs more than doing it right the first time. PPG, one of the largest coatings manufacturers in the industry, lists improper substrate sanding and cleaning as a direct cause of paint peeling, which it defines simply as loss of adhesion between the finish and the substrate (PPG).
Most people hear "surface prep" and think sanding. That's one piece of it. The full process includes inspection, contamination removal, surface conditioning, primer-readiness checks, and final verification before a single drop of paint touches the panel.
Key Takeaways
- Surface preparation removes contaminants and corrects defects so coatings bond reliably
- Match the method to substrate, existing coating, part geometry, corrosion level, and paint manufacturer instructions
- Cleaning, sanding, blasting, chemical pretreatment, masking, and inspection solve different problems and are not interchangeable
- Documented inspection controls reduce peeling, bubbling, fisheyes, flash rust, and visible sanding marks after primer
What Is Automotive Surface Preparation and Why Is It Used?
Surface preparation is the full sequence: inspect, clean, repair, abrade, treat, and verify a substrate before primer or paint goes on. It's distinct from the application stage itself. Primer, basecoat, and clearcoat come after prep is done, not during it.
The process accomplishes two things:
- Removes contamination — oils, dust, corrosion, old coating residue, silicone, adhesive leftovers
- Builds the right surface condition — cleanliness, texture, and surface energy that let the coating actually grip
Get both right, and you get uniform appearance, strong corrosion protection, dimensional accuracy, and repeatable results across panels or production runs. Get either wrong, and rework follows.

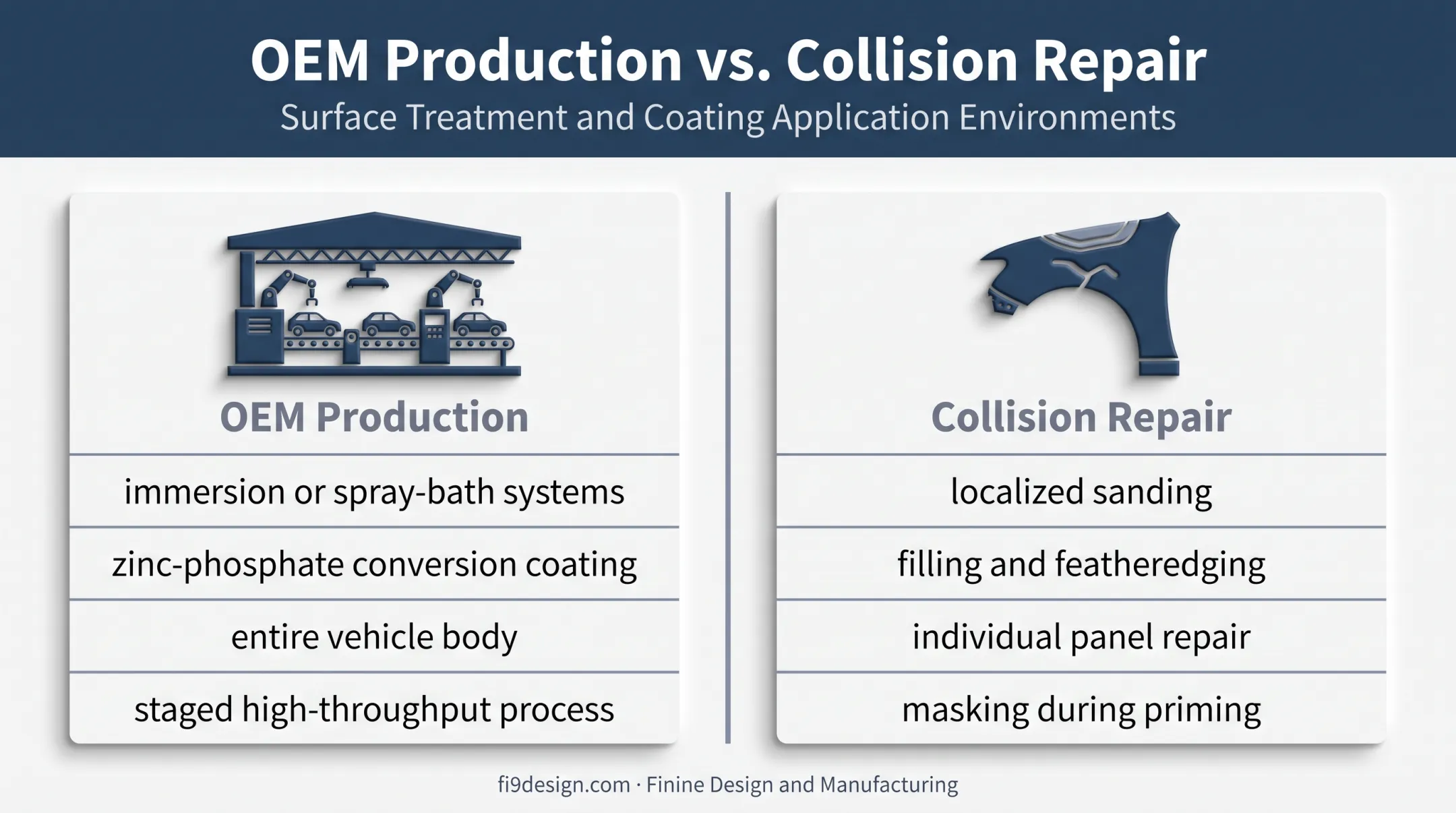

OEM Production vs. Collision Repair
These two settings handle prep very differently, and conflating them causes confusion.
PPG describes automotive-body pretreatment at the OEM level as immersion or spray-bath systems. Its CHEMFOS zinc-phosphate line, for example, deposits a conversion coating across the entire body before the vehicle ever sees electrocoat primer (PPG Pretreatment Solutions). It's a staged, chemical, high-throughput process.
Collision repair looks nothing like that. I-CAR points to localized sanding, filling, and featheredging as the controls that matter for an individual panel repair, plus sufficient masking space during priming (I-CAR Back-to-Basics: Contour Mapping). There's no immersion tank involved — just hand tools, discipline, and attention to the specific repair area.
There's no single universal procedure here. What governs your approach is the coating manufacturer's technical data sheet, your customer's specification, and whatever industry standard actually applies to your substrate and method — not a one-size-fits-all automotive rule.
How Automotive Surface Preparation Works and Where It Is Applied
Surface preparation follows a clear sequence: assess the substrate, remove contamination, correct defective material, build the required surface condition, clean again, apply compatible primer, and inspect before paint. Each step has its own technical depth, but skipping or rushing any of them shows up in the finish.
Step 1: Assessment and Planning
Before touching anything, identify what you're working with:
- Substrate type (steel, aluminum, plastic, composite)
- Existing paint layers or bare metal
- Rust, dents, filler, or weld repairs already present
- Hard-to-reach geometry
- The finish quality the job requires
These findings decide everything downstream. A galvanized panel with sound factory coating gets treated completely differently than a rusted quarter panel with unknown prior repairs.
Step 2: Cleaning and Masking
Wash or degrease the surface. Remove road salts and shop contaminants. Dry it fully. Mask off adjacent surfaces you're not touching.
One detail that gets overlooked constantly: once an area is clean, don't touch it with bare hands. Fingerprint oils and skin contact reintroduce the exact contamination you just removed.
Step 3: Mechanical or Chemical Preparation
This is where method selection matters most. Options include hand sanding, dual-action sanders, stripping discs, wire tools, abrasive blasting, chemical cleaning, or conversion pretreatment.
Match aggressiveness to the substrate:
- Thin panels and sensitive alloys need gentler methods
- Heavy corrosion may justify abrasive blasting
- Plastics and composites typically need scuff-pad preparation, not aggressive abrasion
Step 4: Repair and Surface Refinement

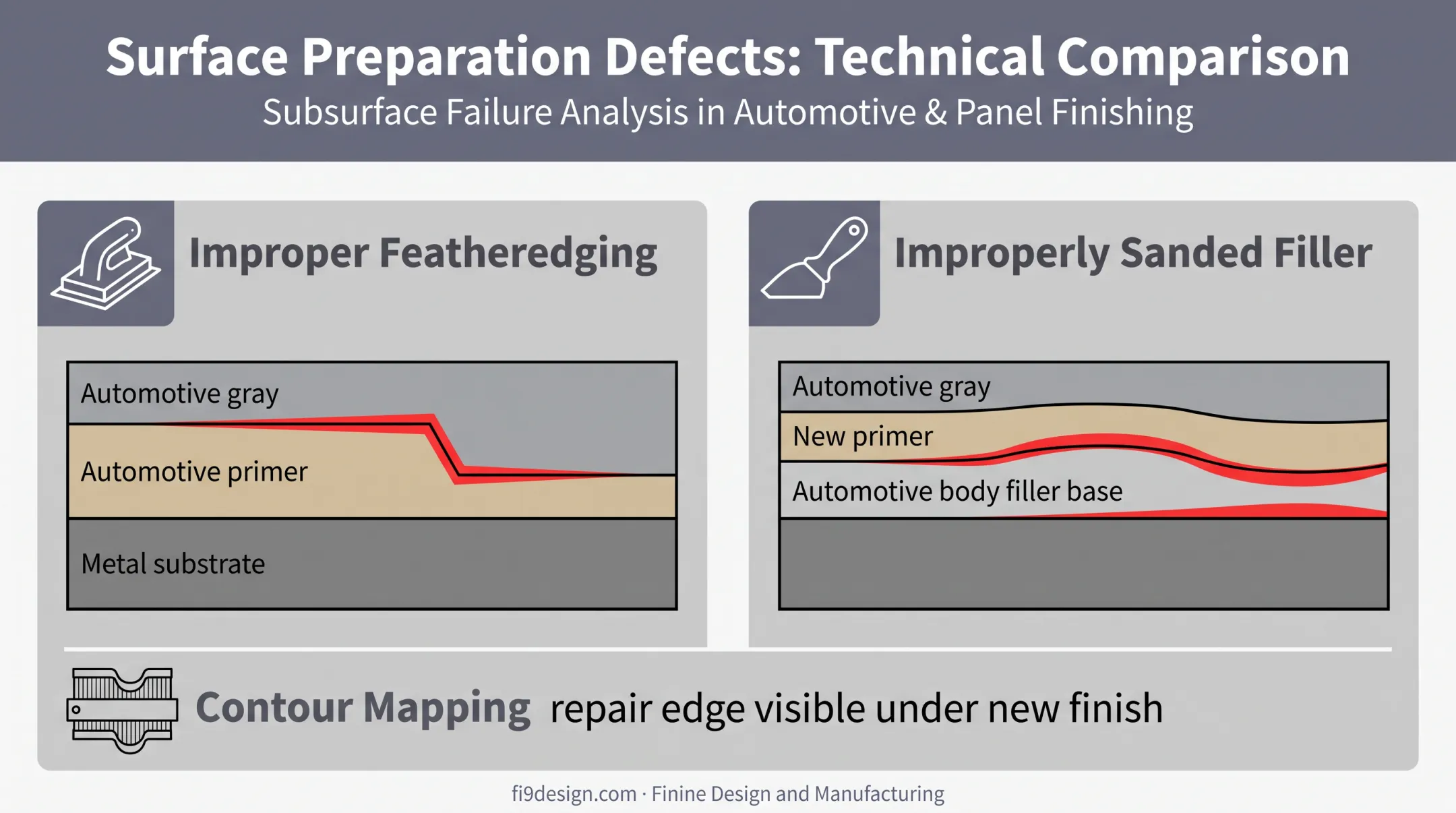

Rust removal, dent correction, filler application, and featheredging all happen here. I-CAR specifically flags improper featheredging and improperly sanded filler as direct causes of contour mapping — that visible ghosting of the repair edge under the new finish (I-CAR).
Progressive abrasive refinement prevents deep scratches or low spots from telegraphing through the final coat.
Step 5: Final Readiness and Inspection
Before paint goes on, verify:
- Dust is fully removed
- The surface is dry
- Lighting is adequate for inspection
- Masking is correctly placed
- Primer compatibility matches the technical data sheet's instructions
I-CAR describes the ideal refinish panel as clean, dry, and free of imperfections, while noting that real-world collision panels rarely arrive that way (I-CAR Surface Preparation for Primer). That gap is exactly why the inspection step exists.
Where This Applies
Surface preparation shows up everywhere coatings do: OEM vehicle and component production, collision repair shops, restoration projects, aftermarket refinishing, replacement-part finishing, and painted prototypes or low-volume manufactured components.
That last category is where many product teams get stuck. When a part moves from CAD to prototype to a small production run, surface prep can't be an afterthought. It has to be planned with material choice and part geometry from the start.
At Finine Design and Manufacturing, production painting sits in the same facility as machining, molding, and casting, so surface prep is coordinated with the part's design instead of added later. For automotive components and display models, aligning geometry, material, and finishing specs early often prevents problems before paint ever goes on.

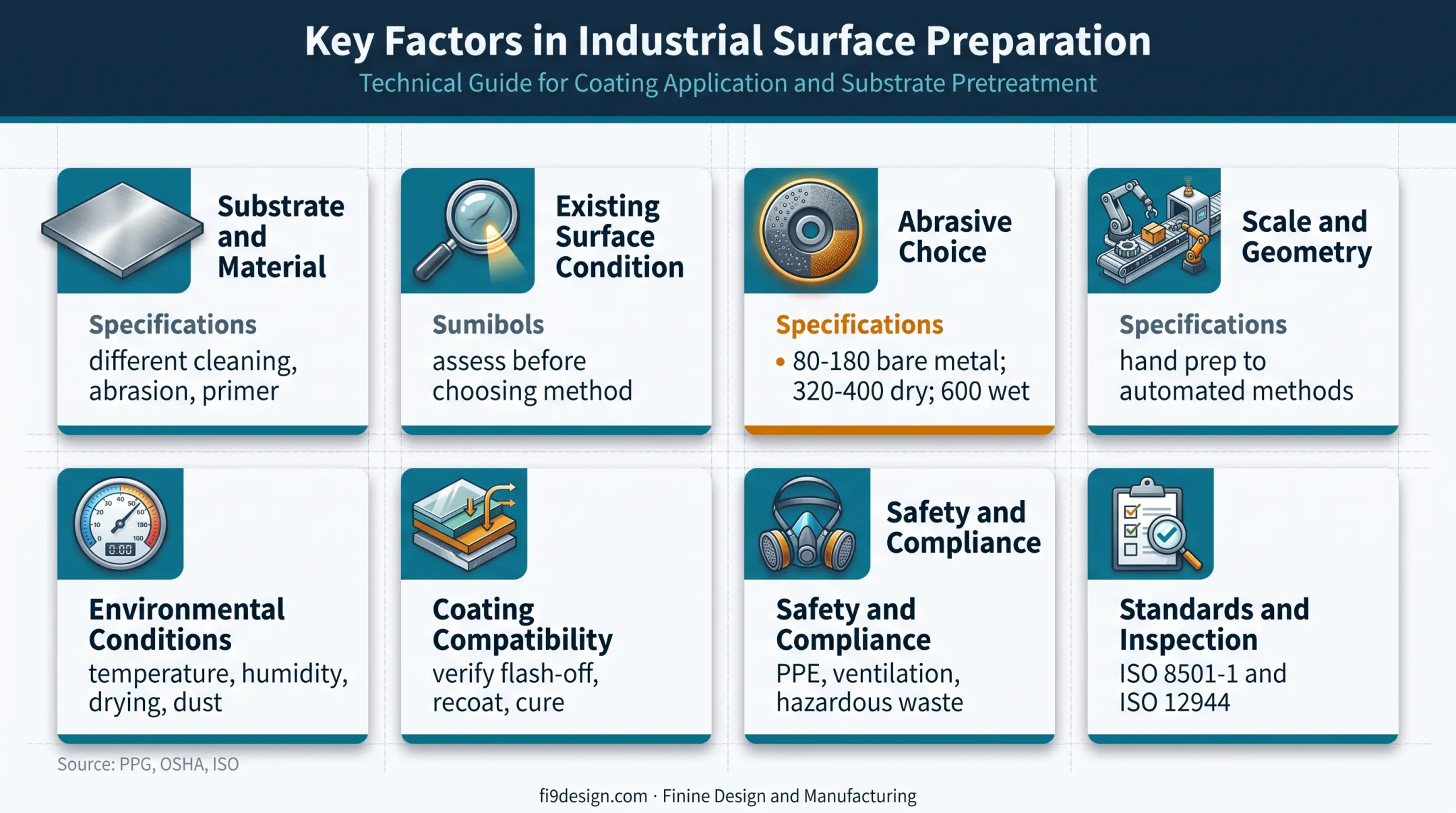

Key Factors That Affect Automotive Surface Preparation
Several variables determine which preparation method actually fits the job:
Substrate and material — Steel, aluminum, galvanized metal, composites, and plastics each need different cleaning, abrasion, and primer approaches. Mixed-material assemblies complicate this further.
Existing surface condition — Intact factory coating, peeling paint, oxidation, weld scale, silicone residue, or unknown prior repairs all change the plan—assess condition before picking a method.
Abrasive choice and surface profile — Grit, abrasive type, tool speed, and sanding direction control scratch depth and adhesion. PPG's DPLF Epoxy Primer bulletin (revised November 2025) specifies 80-180 grit for bare metal and 320-400 dry or 600 wet for old finishes (PPG DPLF Technical Data)—product-specific, not universal.
Production scale and geometry — Hand prep suits one-off repairs; complex parts or higher-throughput runs need repeatable mechanical, spray, or automated methods where fixturing and access matter.
Environmental conditions — Temperature, humidity, drying time, and dust control all affect how cleaning and coating perform. Poor ventilation or a dirty booth undoes careful prep work fast.
Coating-system compatibility — Cleaners, primers, basecoats, and clearcoats must work together; verify flash-off, recoat, and cure windows in current tech docs—not last year's memory.
Safety, waste, and compliance — PPE, ventilation, and hazardous waste rules scale with the operation. OSHA 29 CFR 1910.134 requires a written respirator program only when respirators are necessary (OSHA 1910.134); blasting standard 1910.94 covers pneumatic, hydraulic, or centrifugal methods—not ordinary hand sanding.
Standards and inspection controls — ISO 8501-1 covers visual assessment of prepared steel surfaces; ISO 12944 addresses corrosion protection for steel structures generally. Neither is a universal passenger-vehicle specification — match the standard to the substrate and method you're actually using, not the other way around.
Common Issues, Misconceptions, and When Methods May Not Be Appropriate
A few mistakes show up repeatedly across shops and production lines:
- Sanding before degreasing. This drives contamination deeper into the surface rather than removing it.
- Using a contaminated wipe or tack cloth. It reintroduces residue onto a surface you just cleaned.
- Painting over invisible contamination. A surface can look clean and still carry oil or silicone film.
- Excessive pressure or speed during abrasion. This burns edges, distorts panels, or creates deeper scratches than intended.
- Letting prepped areas sit unprotected. Dust and handling recontaminate a surface within minutes.
The "Bare Metal Is Always Best" Myth
This is a persistent myth. If an existing coating is well-bonded, compatible with the new system, and accepted by the repair specification, stripping it to bare metal adds unnecessary labor and risk without improving the outcome.
Smooth Isn't the Same as Paint-Ready
Over-polishing can reduce the mechanical keying a coating needs to bond. Overly aggressive abrasion creates the opposite problem: deep scratches, thinned panel edges, or surface distortion, sometimes requiring filler that wouldn't have been needed otherwise.
When aggressive methods are the wrong call:
- Thin panels or sensitive alloys that can't tolerate blasting
- Plastics and composites that need scuff-pad prep, not abrasion
- Tight dimensional tolerances near other fitted components
- Situations where moisture could get trapped under the coating
Warning Signs It's Time to Reconsider
Watch for these signals that the current process isn't working:
- Recurring fisheyes or peeling after repeated attempts
- Visible sanding scratches showing through primer
- Flash rust appearing between prep and paint
- Inconsistent results between different operators
- Repeated rework on the same type of job
Complex corrosion repair, structural damage, unknown prior coating systems, and regulated production environments call for qualified automotive or manufacturing professionals, not guesswork.
Conclusion
Automotive surface preparation is a controlled sequence: inspection, contamination removal, defect correction, surface conditioning, compatibility checks, and final verification, all before paint ever goes on.
The right method comes down to the material, the coating system, the part's geometry, the production environment, and the applicable specification. Habit and one sanding technique applied to every part will not hold up.
Consistent preparation gets a lot easier when design, material selection, prototyping, manufacturing, and finishing are coordinated under one roof. Finine Design and Manufacturing coordinates those steps for product teams moving from concept to production: CAD modeling, machining, molding, and production painting as one connected process rather than separate handoffs.
Frequently Asked Questions
What are the NACE and ISO standards for automotive surface preparation?
Requirements depend on the substrate, method, and coating system involved. NACE standards now fall under AMPP (merged in 2021), and ISO 8501-1 covers steel-specific visual assessment. Neither applies universally to every automotive job.
What is automotive surface preparation?
It's the full sequence of inspecting, cleaning, repairing, abrading, and verifying a substrate before primer and paint. The goal is removing contamination and building a surface that coatings can bond to reliably.
What grit sandpaper should be used for automotive surface preparation?
Grit depends on the material, coating layer, and specific product instructions. For example, PPG's DPLF primer sheet calls for 80-180 grit on bare metal, while other products specify different ranges. Always check the current technical data sheet.
How do you prepare bare metal before automotive painting?
Remove all contaminants, abrade to the manufacturer's specified grit, address any rust, and remove dust completely. Apply a compatible primer within its specified recoat window.
What causes automotive paint to peel after preparation?
Common causes include oil or silicone contamination, incorrect surface profile, incompatible coating layers, trapped moisture, or poor curing. Diagnose the specific cause before attempting to recoat the surface.
