Nylon changes that equation. As a polyamide-based thermoplastic, it delivers the toughness, flexibility, and chemical resistance that functional parts actually need, whether you're printing a snap-fit enclosure, a gear, or a shop-floor fixture. These aren't decorative prototype plastics. They're meant to carry load, flex repeatedly, and survive the environment they're built for.
This guide breaks down what nylon 3D printed parts actually are, how FDM, SLS, and MJF compare, which grade fits which application, and when another manufacturing process might serve you better.
Key Takeaways
- Nylon's toughness and chemical resistance suit functional parts, not just display prototypes
- Build orientation changes strength: nylon is weaker across layer lines than within them
- SLS and MJF reduce, but don't eliminate, the directional weaknesses common to FDM nylon
- Glass- and carbon-filled grades add stiffness but trade away ductility and impact resistance
- Low-to-moderate volumes favor 3D printing; higher volumes often justify casting or molding
What Are Nylon 3D Printed Parts?
Nylon is a family of polyamides. The grade you choose changes how a part performs.
A Material Family, Not One Spec
Common grades include:
- PA6 — general-purpose, moderate cost, widely used in filament blends
- PA66 — higher heat resistance than PA6, often found in copolymer filaments
- PA11 — bio-based and notably ductile, favored where flexibility matters
- PA12 — the most common powder-bed nylon, with good dimensional stability
Each grade behaves differently in tensile strength, impact resistance, and moisture uptake. PA11 and PA12 powders can post similar tensile strength numbers on paper, yet diverge sharply in ductility and impact behavior.
That's why engineers specify nylon by grade and process, not just by name. A bracket that needs to flex under repeated stress calls for a different formulation than a rigid housing.
Filament vs. Powder: Two Different Parts
Nylon parts come from two very different processes, and the method shapes the result as much as the material does.
- Filament-based (FDM/FFF) parts build layer by layer from melted filament. Bonding between layers is weaker than within a layer, so strength varies by direction.
- Powder-bed parts (SLS, MJF) fuse loose polyamide powder. Unused powder supports the part during the build, enabling undercuts and internal features without added supports.
Surface texture, layer bonding, and orientation all affect how a finished part holds up in service. A smooth-looking print can still fail along a weak seam you never see coming.
What Actually Determines Performance
The material label on a spec sheet is only part of the story. Real-world performance also depends on:
- Printer type and process parameters (laser power, fusing temperature, layer height)
- Build orientation relative to the applied load
- Moisture content of the filament or powder at print time
- Wall thickness and internal reinforcement
- Post-processing steps like dyeing, annealing, or machining critical surfaces
Before specifying nylon for a functional application, pull the current manufacturer datasheet for that exact grade and process. Generic "nylon" numbers in marketing copy rarely match what a specific printer and powder combination will deliver.
Nylon 3D Printing Processes: FDM, SLS, and MJF
The process you choose matters as much as the grade. Each builds nylon parts differently, with its own strengths and trade-offs.
FDM/FFF: Accessible, But Direction-Sensitive
Fused Deposition Modeling, also called Fused Filament Fabrication, extrudes heated nylon filament layer by layer. It's practical for one-off parts, early prototypes, and in-house production without outsourcing.
The trade-offs are real:
- Nylon filament absorbs moisture quickly, causing bubbling and poor layer adhesion if it isn't dried first
- Warping is common without a heated bed or enclosed chamber
- Layer lines are visible and often need post-processing
- Support structures add print time and cleanup
- Z-direction strength lags behind the X/Y plane because interlayer bonds are weaker than the filament itself
SLS: Freedom Without Supports
Selective Laser Sintering fuses polyamide powder with a laser, layer by layer. Because unfused powder surrounds and supports the part, SLS allows undercuts, internal channels, and geometry that FDM can't easily produce.
Orientation still matters here, which we'll quantify in the design section below. SLS parts typically go through powder removal, bead blasting, dyeing, or smoothing before they're ready for use.
MJF: Built for Repeatable Batches
Multi Jet Fusion selectively fuses polymer powder using detailing and fusing agents instead of a laser. It produces strong parts with less directional variation, suited to repeatable small-series production and complex designs.
MJF requires industrial equipment and climate-controlled powder handling, which is why it's most often run through a service bureau rather than in-house.

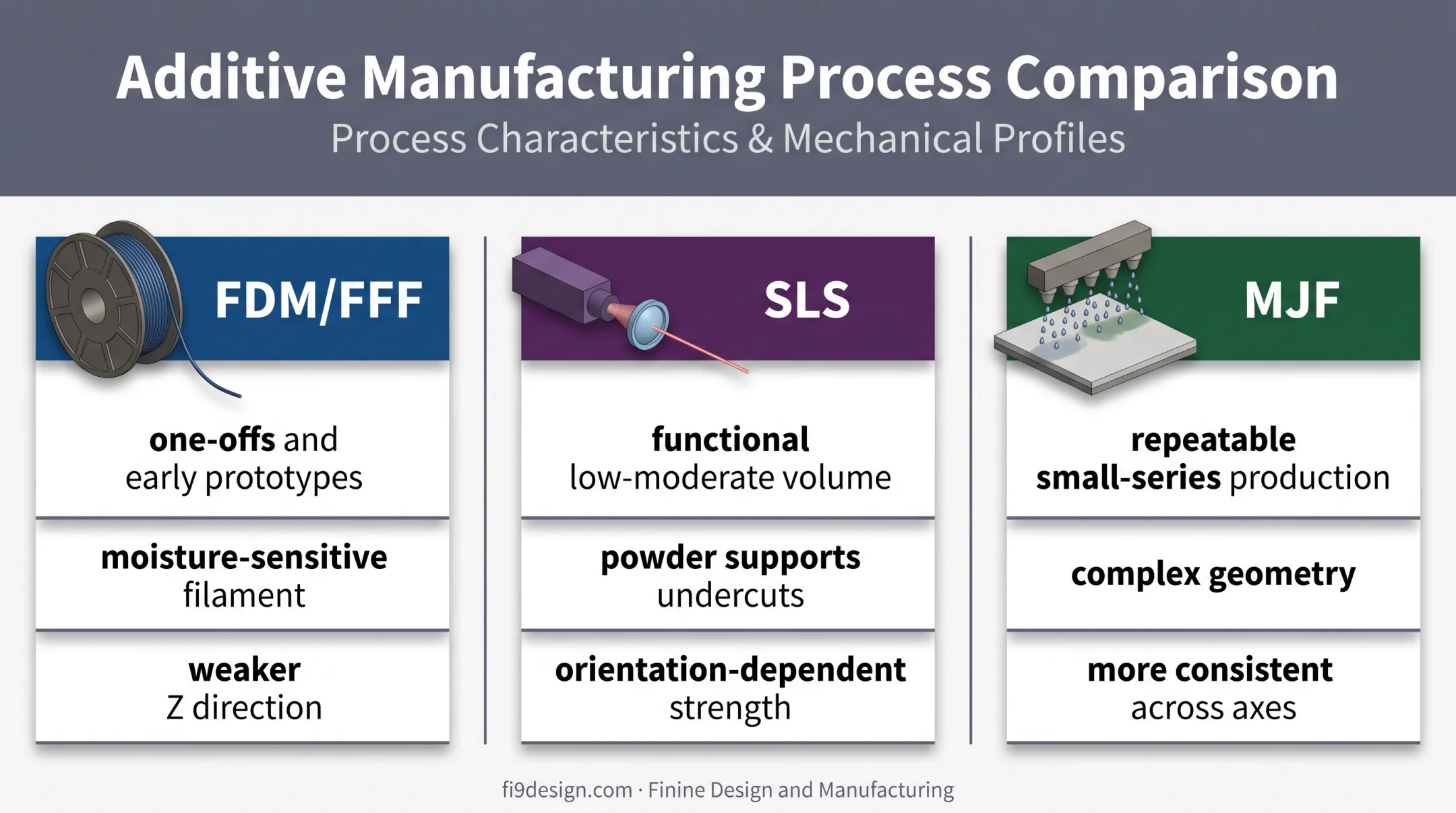

Comparing the Three
| Factor | FDM/FFF | SLS | MJF |
|---|---|---|---|
| Strength consistency | Weakest in Z | Orientation-dependent | More consistent across axes |
| Design freedom | Limited by supports | High — powder bed supports undercuts | High — powder bed supports undercuts |
| Typical tolerance | Varies by machine | ±0.010 in. | ±0.012 in. |
| Access | In-house friendly | Usually a service bureau | Usually a service bureau |
| Best fit | One-offs, basic prototypes | Functional parts, low-moderate volume | Repeatable batches, complex geometry |
Those tolerance figures come from one supplier's published process comparison between MJF and SLS and should be confirmed against your actual quote rather than treated as a fixed standard.
Nylon Materials and Properties: Choosing the Appropriate Grade
PA11 vs. PA12: Flexibility or Stiffness
PA11 and PA12 dominate powder-bed nylon printing. The choice usually comes down to ductility versus dimensional stability:
- PA11 is typically more ductile and impact-resistant, so it suits parts that flex repeatedly or absorb shock
- PA12 usually offers better dimensional stability and wider availability, which is why it is often the default for rigid housings and enclosures
Check these against the current datasheet for your specific powder. One supplier's "PA12" isn't identical to another's.
Reinforced Grades: When Stiffness Matters More Than Flex
Glass-filled and carbon-fiber-reinforced nylon grades add significant stiffness and thermal stability. Manufacturer datasheets typically show glass-filled PA12 reaching roughly double the tensile modulus of unfilled PA12, with a corresponding drop in elongation. That trade-off shows up as:
- Increased brittleness under impact
- Rougher surface finish from embedded fibers
- Directionally dependent strength, especially with chopped fiber
- Faster wear on mating surfaces in sliding applications
Reinforced grades make sense for load-bearing brackets and jigs. They're a poor choice for snap fits or parts that need repeated flex.
Moisture: Nylon's Built-In Challenge
Nylon is hygroscopic. It pulls moisture from the air, and that moisture ruins print quality if left unmanaged. Expect to need:
- Filament stored in sealed, desiccated containers and dried before use
- Powder handled in climate-controlled environments to prevent clumping and uneven fusing
- Awareness that printed parts can absorb ambient moisture over time, slightly shifting dimensions in humid conditions
Without that control, expect weak layer bonds, surface defects, and dimensional drift after the part leaves the printer.
How Nylon Compares to PLA, ABS, and PETG
| Material | Strength/Durability | Heat Resistance | Printability | Best Fit |
|---|---|---|---|---|
| Nylon | High toughness, flexible | Moderate-high | Harder — moisture-sensitive | Functional parts, living hinges, gears |
| PLA | Brittle, low impact resistance | Low | Easiest | Visual prototypes, low-stress models |
| ABS | Moderate impact resistance | Moderate | Warps without enclosure | General-purpose functional parts |
| PETG | Good impact resistance, some flex | Moderate | Easy | Outdoor parts, chemical exposure |
PETG prints more easily and resists moisture better during the print itself; ABS is cheaper and more familiar. The right material depends on the part's load, environment, and finish requirements.
Regulated Applications Need More Than a Material Label
Medical, dental, orthopedic, and military programs often require application-specific documentation — material traceability, process validation, and testing tied to the finished device. A printed nylon anatomical model used for internal training is a very different thing from a patient-contact device, and the two should never be treated interchangeably without proper compliance review.
Applications for Nylon 3D Printed Parts
Automotive
Nylon fits automotive brackets, ducts, housings, clips, and functional prototypes where weight savings and heat exposure near the engine bay matter. Finine Design and Manufacturing's automotive work spans interior and exterior prototypes and low-volume development parts, where design iteration happens fast and tooling isn't justified yet.
Military, Defense, Electronics, and Industrial
Nylon's toughness and chemical resistance show up in:
- Enclosures and cable-management components for field electronics
- Tooling, jigs, and fixtures on the shop floor
- Ergonomic models and custom low-volume parts for defense programs
One documented example: Hoffmann + Krippner used HP Multi Jet Fusion with PA12 to produce customizable electrical enclosures with built-in snap hooks and undercuts, eliminating screws and supporting small-series customization. It's a useful reference point for what MJF nylon can do in production, not a universal volume benchmark.
Dental and Orthopedic Development
Nylon supports anatomical models, educational products, trial components, and device-concept prototypes for dental and orthopedic programs. These are development and training tools, distinct from clinically approved, patient-contact products. Finine Design and Manufacturing treats dental and orthopedic work as a priority specialization. The team produces training products and procedural demonstration models for education and sales use, not as a substitute for cleared medical devices.
Rapid Prototyping and Bridge Production
Nylon's real advantage shows up before a design is finalized. It supports:
- Fast design iteration without committing to tooling
- Complex geometry that would be expensive to machine
- Customization for low-volume or one-off runs
- A bridge between early prototypes and full production tooling
That's where most nylon 3D printing work actually happens: the fastest way to test and refine a design before full production tooling.
Designing and Producing Reliable Nylon Parts
Design Fundamentals
Reliable nylon parts start with process-aware design choices:
- Consistent wall thickness to avoid warping and uneven cooling
- Generous fillets instead of sharp internal corners
- Bosses and ribs sized for the specific process, not generic rules of thumb
- Clearance built into snap fits, threaded features, and moving interfaces for the actual grade printed
Manufacturer-specific design guidance, not universal dimension charts, should drive these decisions, since FDM, SLS, and MJF each tolerate different minimums.
Orientation and Loading Direction
Build orientation determines where a part is weakest. In FDM, the Z direction is almost always the weak point, since layers bond less completely than the filament itself. SLS and MJF narrow this gap but don't close it.

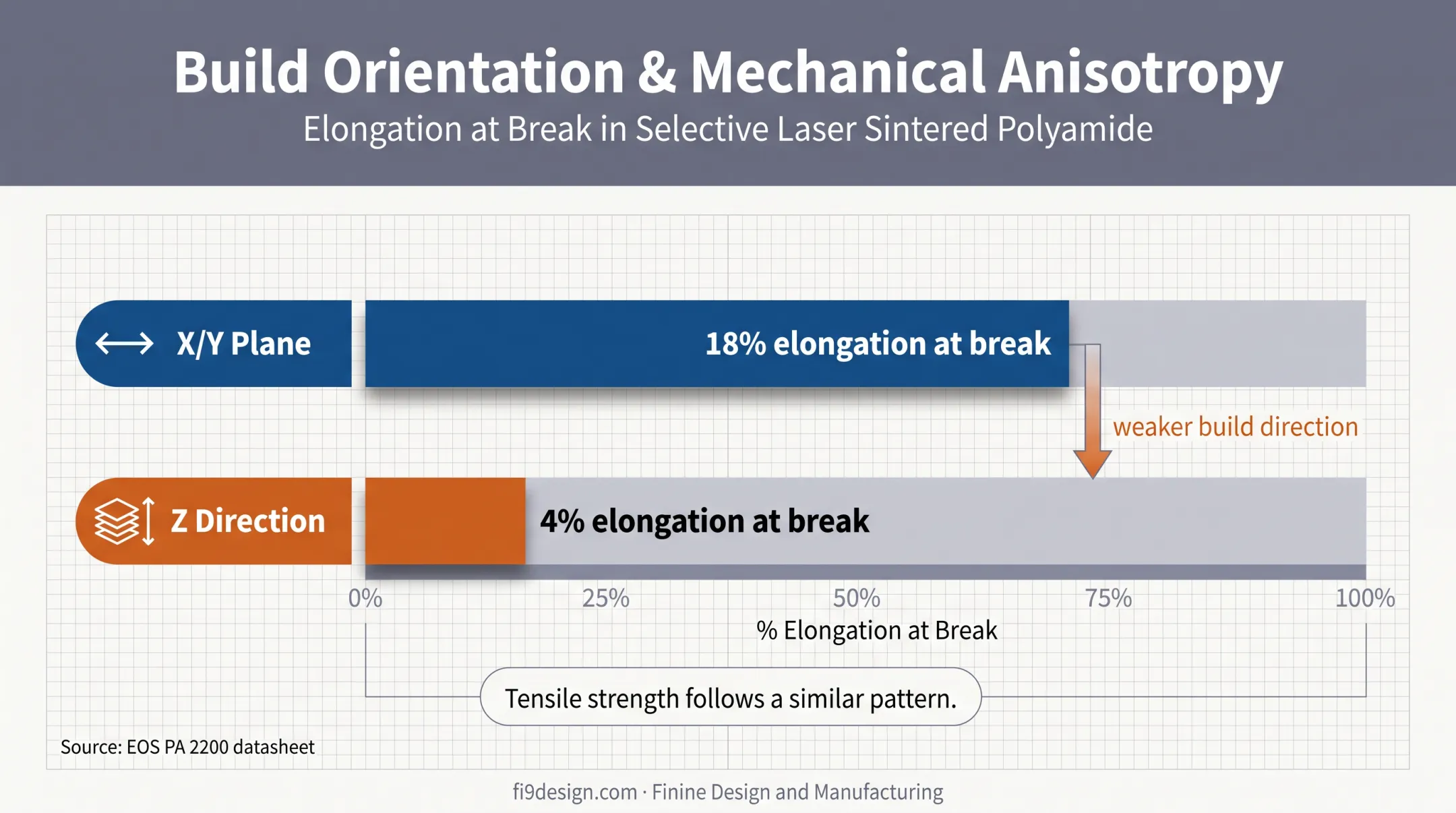

Published SLS data for one PA12 powder shows elongation at break dropping from 18% in the X/Y plane to just 4% in Z, with tensile strength following a similar pattern (EOS PA 2200 datasheet).
Orient load-bearing features so the primary stress runs along the stronger plane, and check any load case against the grade's actual tested direction.
Warping, Shrinkage, and Removal
Thermal gradients during printing cause warping and shrinkage, especially in larger or unevenly thick parts. Reduce the risk by:
- Keeping cross-sections uniform and transitions gradual
- Avoiding unnecessarily long, thin walls
- Designing drainage and access points for powder or support removal
- Balancing geometry so thermal stress doesn't concentrate in one area
Post-Processing and Quality Control
Common finishing steps include:
- Bead blasting and tumbling
- Dyeing and painting
- Vapor or chemical smoothing, where chemically compatible
Critical mating surfaces often need machining after printing to hit tight tolerances.
Before a nylon part goes into service, run it through a quick checklist:
- Design file — confirmed for the intended process and grade
- Material grade — matched to load, chemical exposure, and temperature
- Moisture control — filament dried or powder handled per spec
- Build orientation — checked against the loading direction
- Dimensional inspection — measured after post-processing or finishing
- Functional testing — load, temperature, chemical, wear, or fatigue testing completed where the application calls for it
Skipping steps here is how a part that looks fine on the printer fails three weeks later in the field.
Choosing the Right Manufacturing Route for Nylon Parts
Nylon 3D printing isn't always the right answer. It competes with CNC machining, urethane casting, and injection molding, and each fits a different stage of development.
| Route | Best Fit | Tooling | Typical Volume |
|---|---|---|---|
| 3D Printing (FDM/SLS/MJF) | Complex geometry, frequent design changes | None | One-off to low volume |
| CNC Machining | Tight tolerances, engineering-grade materials | None (fixtures only) | Prototype to low volume |
| Urethane Casting | Production-quality look and feel without hard tooling | Silicone tooling | Low to medium volume |
| Injection Molding | Repeatable, high-volume production | Hard tooling | Medium to high volume |
A Practical Decision Framework
Choose nylon 3D printing when:
- Geometry is too complex or costly to machine
- Quantities are low to moderate and still likely to change
- Tooling investment isn't justified yet
- Time-to-market matters more than per-part cost
Consider machining or molding when volume, precision, or surface finish needs exceed what printing reliably delivers. The same applies when per-part cost at scale outweighs upfront tooling cost.
Where Finine Design and Manufacturing Fits
Finine Design and Manufacturing covers this full path—CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting—through one partner. Most products don't move in a straight line from prototype to production. They may use urethane casting for a bridge run, injection molding once volume justifies it, and CNC machining for occasional tight-tolerance features along the way.
If you're building an automotive bracket, defense enclosure, consumer electronics housing, or dental or orthopedic training model, Finine can help match nylon 3D printing, casting, or molding to your geometry, quantity, and timeline.
Reach Jaime at Jaime@fi9design.com or 1.858.900-9787 to discuss your part.
Frequently Asked Questions
What is rapid prototyping used for?
Rapid prototyping uses quickly produced physical parts to test form, fit, function, ergonomics, and assembly before committing to expensive tooling. It lets teams catch design flaws early, when changes are still cheap.
Is nylon better than PETG?
Neither material is universally better. Nylon offers more toughness and flexibility for demanding mechanical parts, while PETG prints more easily and often suits outdoor or chemical-exposure applications.
What are SLA, SLS, and FDM?
SLA cures liquid resin with light for smooth, detailed parts. SLS fuses polymer powder, including nylon, with a laser for strong functional parts. FDM extrudes melted filament layer by layer for accessible, lower-cost prototyping.
Can nylon be used in 3D printing?
Yes. Nylon prints through FDM/FFF, SLS, and MJF, each using the material differently as filament or powder. Success depends on proper moisture control and process-specific design practices.
What are the main components of nylon?
Nylon is a family of polyamides built from repeating amide-linked chemical units. Different monomer combinations produce different grades, including PA6, PA66, PA11, and PA12, each with distinct properties.
