Automotive, medical, and electronics manufacturers now face a harder question: does bulk 3D printing make sense for this part, or should it stay in traditional tooling? A peer-reviewed benchmark puts the identical-part crossover point at 10,263 parts under specific cost assumptions, while other case studies report break-even points ranging from 5,000 to 40,000 units. There's no single answer.
This guide covers scalability, real cost comparisons, proven case studies, and a framework for deciding which method fits your project.
Key Takeaways
- Additive manufacturing fits complex, customized, or medium-volume parts, with crossover points varying by geometry and cost model, not a flat unit count
- Newer technologies (SAF, MJF, Carbon DLS) have increased packing density and throughput versus older SLA/FDM methods
- Hybrid approaches — printing tooling, then transitioning to injection molding — often deliver the best speed-to-cost balance
- Footwear, dental, and automotive industries have proven high-volume additive manufacturing use cases
How 3D Printing Has Evolved to Support Mass Production
Early 3D printing struggled with slow speeds, high per-part costs, and narrow material options. Those limitations kept it firmly in prototyping territory.
That's changed. Newer powder-bed and photopolymer technologies have pushed packing density and throughput dramatically higher.
Higher Density, Faster Builds
Stratasys reports its SAF technology has raised packing density from roughly 10% with traditional SLS to over 20%, with its H350 system producing 342 parts in a single build and completing hundreds of parts in under 12 hours. That's a meaningful leap in usable build volume per run.
Carbon's Digital Light Synthesis (DLS) technology took a different route, focused on resolution and material performance rather than raw part count. The adidas 4DFWD midsole used a single print with more than 10,000 tunable lattice struts across multiple zones, delivering reported gains of 23% more cushioning and 15% lower braking force.
Erpro, a French manufacturer, reportedly printed 22 million mascara brushes for Chanel, running at roughly 250,000 units per week. That output shows additive can sustain genuine consumer-scale volume when the part geometry favors it.
Automation and Materials Closed the Gap Further
Two other shifts matter:
- Print farms and automated handling now run continuous, unattended cycles instead of one-off manual jobs
- Material advances — stronger nylon powders, heat-resistant polymers, and metal powders — expanded which parts can actually survive real-world use
BMW reported printing more than 300,000 parts in 2023, spanning tooling, fixtures, and end-use components. None of this makes 3D printing faster than molding. It makes it viable for volumes and part types that were previously off the table — which is exactly why manufacturers increasingly pair additive prototyping with production-ready processes like injection molding under one roof.
3D Printing vs. Traditional Mass Production Methods
Here's how the methods stack up on the factors that actually drive a manufacturing decision:
| Factor | 3D Printing | Injection Molding | CNC Machining | Die Casting |
|---|---|---|---|---|
| Setup cost | Low — no tooling | High ($80K+ for mold) | Moderate (fixtures) | High (metal dies) |
| Per-unit cost at volume | Rises with material/time | Drops sharply after crossover | Moderate, stays flatter | Low at high volume |
| Production speed | Slower per part | Fast (multi-cavity) | Moderate | Fast at scale |
| Material options | Growing, but limited | Extensive plastics | Broad, including metals | Metals only |
| Best-fit volume | Low-to-medium, high-mix | High-volume, identical parts | Low-to-medium, precision | High-volume metal parts |
The Crossover Point Isn't Fixed

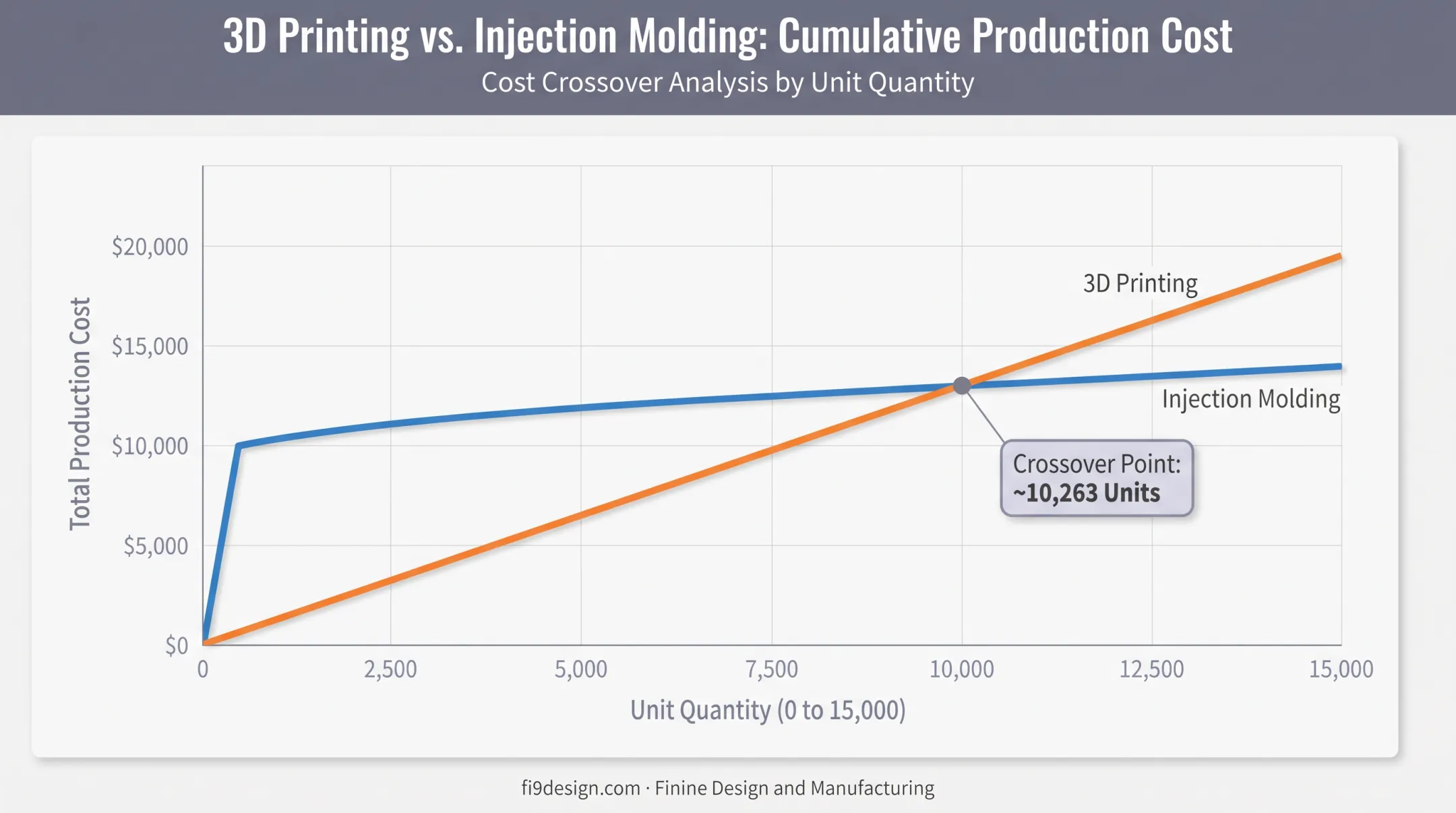

A controlled benchmark study modeling identical cube parts found molding becomes cheaper than powder-bed fusion at 10,263 units, assuming a $150,000 machine and $80,000 mold amortized against a $7.96 per-part additive cost. A separate government study using cheaper printed molds found break-even shifting between 5,000 and 12,500 parts depending on material.
The honest takeaway: crossover depends on your specific part, materials, and cost assumptions — not a universal number. What stays consistent:
- 3D printing wins on setup speed and design flexibility
- Traditional methods win on cost efficiency at true mass-production scale
- Large 3D-printed parts get expensive fast, since cost scales with material volume, print time, and post-processing — always worth getting a project-specific quote rather than assuming a rate
Because Finine offers 3D printing, CNC machining, and injection molding under one roof, we can help you model these tradeoffs against your actual part geometry and volume before committing to tooling.
Advantages of 3D Printing for Higher-Volume Production
The biggest advantage isn't speed. It's flexibility without new tooling.
Eliminating tooling costs changes the math entirely. Producing 50 different design variants at 200 units each could require roughly $4 million in injection molds — additive manufacturing needs zero tooling changes across those same variants. That's the real value: rapid iteration without re-tooling every time a design shifts.
Mass Customization Is Where Additive Shines
Dental aligners are the clearest proof point. Align Technology produces more than one million custom aligner parts daily, according to company reports — every one geometrically unique. Tooling simply can't do that economically. Custom orthopedic implants follow the same logic; Renishaw's case study documents titanium acetabular cups produced on metal powder-bed systems for ISO 13485-certified medical manufacturing.
Lightweight lattice structures offer a third advantage: encoding performance directly into geometry. Automotive, aerospace, and footwear applications all benefit from lattices that improve strength-to-weight ratio without adding mass — something traditional molding geometry can't replicate as easily.
Challenges and Limitations to Consider
Additive manufacturing isn't a drop-in replacement for high-speed tooling. Three limitations matter most:

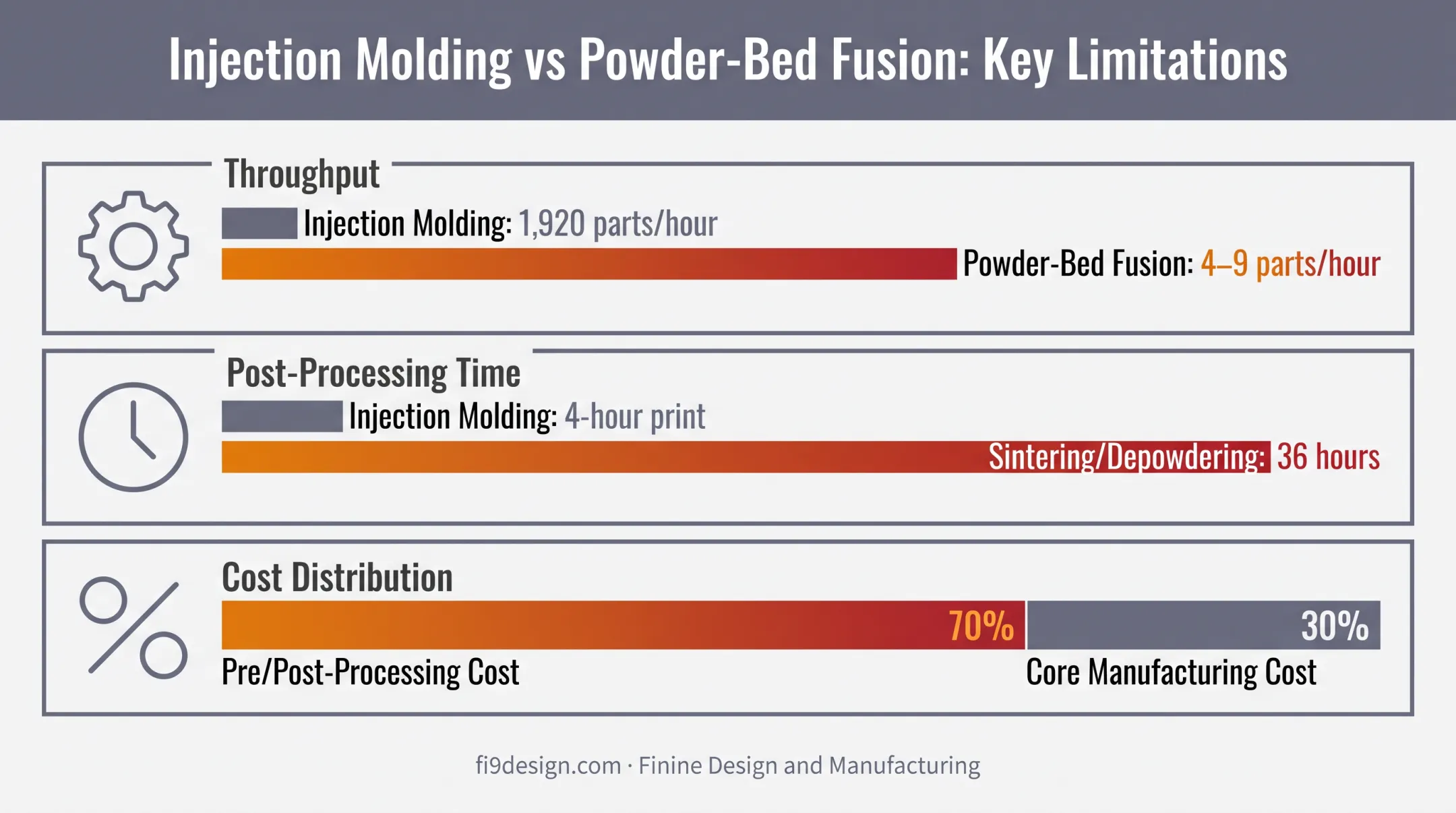

- Throughput gap — a benchmark study found an eight-cavity injection mold produced 1,920 parts per hour, versus roughly 4-9 parts per hour for powder-bed fusion. That gap is a physical limit of layer-by-layer builds, not something better software can close.
- Material constraints — photopolymer resins generally show lower mechanical strength than injection-molded thermoplastics, and metal powders can carry anisotropy or residual stress issues depending on print orientation.
- Post-processing load — sintering, depowdering, curing, and finishing can add significant time. One benchmark tracked a metal binder-jet part that printed in four hours but needed up to 36 hours for sintering, cooling, and depowdering.
Some industry estimates put pre- and post-processing at up to 70% of total additive manufacturing cost. That's not universal, but it's a strong argument for costing the whole production cell, not just print time.
This is exactly why production decisions often come down to matching the process to the part, not picking one technology for everything. Manufacturers who weigh 3D printing against CNC machining, urethane casting, and injection molding for each application typically get better throughput and cost outcomes than committing to a single method.
Hybrid Manufacturing: Combining 3D Printing With Traditional Methods
Most manufacturers land on a middle path: use 3D printing for rapid tooling, then shift to molding once demand stabilizes.
Printed molds for injection molding, urethane casting, or thermoforming cut lead time before committing to expensive steel tooling. Cost comparisons show $250 printed molds against $10,000 CNC-machined reference molds — the printed tools cost far less upfront but wear out faster, making them ideal for short runs, design validation, or launch-phase production rather than long-term volume.
This is exactly where a single manufacturing partner earns its keep. Bouncing between separate vendors for prototyping, tooling, and finishing adds delays and communication gaps at every handoff.
Finine Design and Manufacturing operates as a one-stop shop, offering CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting under one roof in San Diego. Rather than sourcing a prototyping shop, then a mold maker, then a finishing vendor separately, clients work through the entire transition — from a printed prototype to a validated production run — with one team that already understands the part's history and requirements.
This model fits regulated, precision-driven industries particularly well:
- Dental and orthopedic products, where design iteration speed and dimensional accuracy both matter
- Defense and military components, where qualification and traceability requirements make vendor-switching costly
- Automotive parts, where design changes are frequent but production volumes eventually justify tooling
Urethane casting plays a key bridging role here — supporting individual prototypes through short production runs before a client commits to full injection-mold tooling.
When to Choose 3D Printing Over Traditional Mass Production
Skip the per-unit cost comparison alone. It misses tooling, labor, post-processing, and the cost of design changes down the road.
| Factor | Favors 3D Printing | Favors Traditional Methods |
|---|---|---|
| Design complexity | High (lattices, internal geometry) | Simple, repeatable shapes |
| Production volume | Low-to-medium, or high-mix | High-volume, identical parts |
| Customization needs | Every unit is different | Standardized, uniform output |
| Lead time | Need parts in days, not months | Timeline allows for tooling |
Process selection ultimately comes down to six practical factors: geometry, material, quantity, application, schedule, and budget. A complex, low-volume dental appliance points toward additive. A simple, high-volume automotive clip points toward molding. Most real projects fall somewhere in between.
For regulated industries especially — medical and military work where qualification requirements are strict — consult a manufacturing partner early. Finine Design and Manufacturing handles CAD modeling, 3D printing, CNC machining, urethane casting, and injection molding under one roof, so a hybrid or fully additive approach gets flagged before you've committed budget to the wrong tooling path.
Frequently Asked Questions
Is 3D printing good for mass production?
It works well for medium volumes, complex geometries, and customization needs like dental aligners or orthopedic implants. For very high-volume, simple parts, injection molding or die casting still wins on cost.
How much does it cost to 3D print a large object?
Cost depends on material volume, print time, printer technology, and post-processing requirements. There's no flat rate, so get a custom quote based on your specific geometry and quantity.
What is the crossover point where injection molding becomes cheaper than 3D printing?
Research shows a wide range, from roughly 5,000 to over 10,000 units, depending on part complexity and cost assumptions. There's no single universal threshold — it depends on your specific project.
Can 3D printing replace injection molding entirely?
No. It complements molding rather than replacing it, especially through hybrid approaches like printed tooling for short runs before transitioning to steel molds.
Which industries are best suited for 3D-printed mass production?
Footwear, dental and orthopedic devices, consumer goods, and automotive parts lead the way, largely because customization and complex geometry favor additive methods there.
What materials can be used for high-volume 3D printing?
Nylon powders (used in SLS, MJF, and SAF systems), photopolymer resins, and emerging metal powders all support production-grade parts, depending on the application's strength and durability needs.
