Pad printing solves this by using a flexible silicone pad to lift an image off an etched plate and press it onto the part, following the contour instead of fighting it.
This article is written for product designers, engineers, and manufacturing teams building plastic prototypes and production components. Getting the mark right isn't cosmetic trivia. It affects how the product looks, how usable it is, whether it can be traced through production, and whether it passes final inspection.
Key Takeaways
- Pad printing transfers graphics from an etched plate (cliché) through a silicone pad onto plastic parts.
- Adhesion and quality hinge on plastic type, surface prep, ink chemistry, curing, and fixtures — not the printer alone.
- Best for small graphics on curved, recessed, or textured surfaces.
- Always test prototype prints for alignment, adhesion, and abrasion resistance before production.
- Screen, UV, laser, labels, or molded-in graphics may outperform pad printing on size, volume, or durability.
What Is Pad Printing on Plastic and Why Is It Used?
Pad printing, also called tampography, is an indirect offset process. Artwork gets etched into a plate called a cliché. Ink sits in those etched recesses. A soft silicone pad presses down, picks up the ink, then transfers it onto the part (the substrate).
The reason this matters for plastic parts: the pad deforms around the shape it touches. A rigid stamp or screen can't do that. So pad printing becomes the practical choice for:
- Logos on curved housings or knobs
- Control symbols on recessed buttons
- Warning labels on textured surfaces
- Model numbers or serial marks on small, oddly shaped components
How it compares to other methods:
| Process | How the image is made | Typically suits |
|---|---|---|
| Pad printing | Etched plate → silicone pad → part | Small graphics on contoured or recessed surfaces |
| Screen printing | Ink pushed through mesh | Larger flat or gently curved areas |
| UV inkjet | Digital ink jetted and cured | Full-color, variable, or short-run graphics |
| Laser marking | Laser alters the surface itself | Permanent marks, no ink film needed |
Pad printing is used at two very different moments in a product's life. During prototyping, it lets a team see and handle a realistic-looking part (logo placement, color, and legibility) before committing to tooling. During production, the same cliché and fixture setup can repeat that mark thousands of times with consistent placement.
One caution worth stating plainly: the pad's ability to reach a difficult surface says nothing about whether the ink will actually stick to it. Those are separate questions, and treating them as one is where a lot of print-quality problems start.
How Pad Printing on Plastic Works

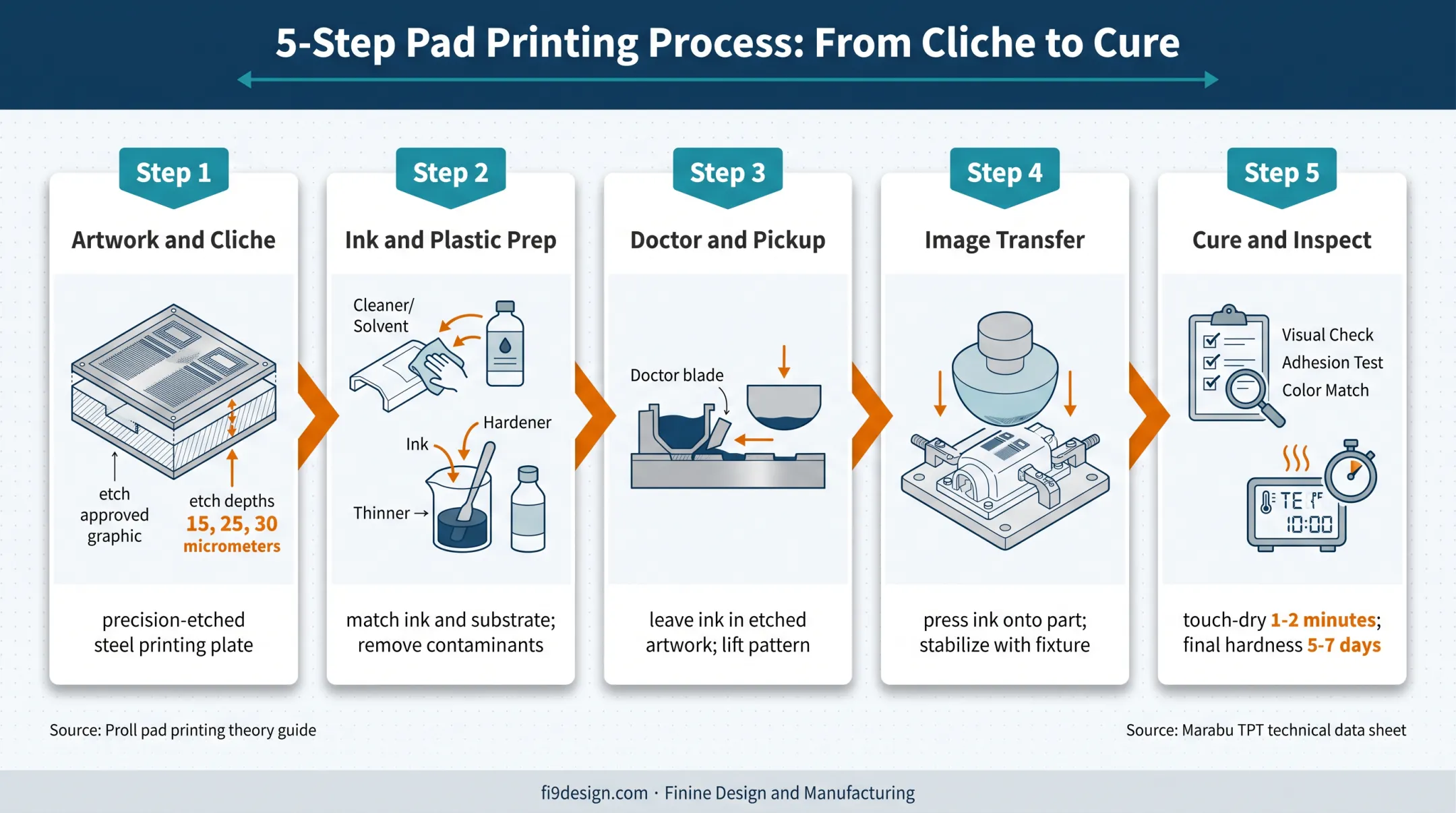

The process runs from approved artwork through plate-making, ink and part prep, printing, curing, and inspection. Here's the sequence.
Step 1: Prepare Artwork and the Cliché
The logo or graphic gets etched into a photopolymer or metal plate. Line weight, small text, and image size all need review before etching, because the plate's etch depth directly shapes print quality.
An ink manufacturer's technical guide recommends these etch depths (Pröll pad printing theory guide):
- 15 micrometers for very fine type
- 25 micrometers as a general optimum
- 30 micrometers for large, bold motifs
A 25-micrometer etch typically picks up about 12 micrometers of ink but deposits only 5–8 micrometers on the part. A deeper etch does not automatically produce a bolder or more opaque print; etch depth and finished opacity are not proportional.
Step 2: Prepare the Ink and Plastic Substrate
Ink selection has to match the plastic's chemistry, not just the desired color. ABS, polycarbonate, PVC, polypropylene, and nylon all behave differently under ink.
Before printing, the part needs cleaning to remove:
- Dust and handling oils
- Mold-release residue
- Waxes or plasticizers migrating to the surface
Some plastics, particularly polyethylene and polypropylene, may need flame, corona, or plasma pretreatment to raise surface energy enough for the ink to bond. This isn't a blanket rule for every resin. Validate it for the specific plastic, finish, and ink system in use.
Step 3: Doctor the Plate and Pick Up the Image
A doctor blade or ink cup sweeps across the plate, wiping ink from the flat surface while leaving it in the etched artwork. The silicone pad then compresses onto the cliché, lifting the ink pattern off the plate.
Step 4: Transfer the Image to the Part
The pad moves to the part and presses the ink onto the surface. Pad shape, hardness, compression, and the angle of approach all influence whether the image transfers cleanly or distorts.
A stable nest or fixture matters just as much as the pad itself. Without one, small, curved, or thin-wall parts shift mid-print, and registration errors creep in.
Step 5: Dry, Cure, and Inspect
"Dry to the touch" and "fully cured" are not the same thing. Marabu's technical data for its TPT ink shows the ink can be touch-dry in 1–2 minutes at 68°F (20°C), yet it doesn't reach final hardness until 5–7 days at 68°F (20°C) under standard conditions (Marabu TPT technical data sheet).
Run abrasion or chemical-resistance testing before that cure window closes, and you'll get results that don't hold up later.
Inspection should check:
- Placement and registration accuracy
- Color match and opacity
- Edge sharpness and smearing
- Pinholes or ghosting
- Adhesion and early abrasion resistance
Document the approved sample and the exact process parameters used to make it. That record becomes the benchmark when comparing prototype prints against production output.
Where Pad Printing on Plastic Is Applied
Pad printing shows up across industries wherever a small, precise mark needs to sit on a contoured plastic surface.
- Consumer electronics: Logos and icons on housings, remote controls, and device buttons
- Automotive: Switch icons, control legends, and bezel markings on dashboard components
- Military and industrial: Identification and warning marks on molded housings and panels
- Medical and dental: Measurement graduations and identification marks on devices like syringe barrels, often molded from polypropylene, polycarbonate, or cyclic-olefin polymer
A syringe barrel shows why geometry drives the choice. A legible scale has to wrap a small cylindrical surface, which a flat print method can't do cleanly.
That example shows where pad printing fits. It does not prove any given ink or process meets a specific medical standard. Compliance testing for regulated industries still needs its own documented validation.
Across any industry, the mark can be purely decorative (a brand logo) or functional (an orientation arrow, a serial number, a calibration line). Pad printing handles both, and it appears at multiple points in development:
- Prototype stage — confirming fit, appearance, and usability
- Pilot builds — validating the process before full production
- Production runs — once artwork, fixtures, and inspection criteria are locked in
Finine Design and Manufacturing applies graphic and finishing work as the final step after machining, molding, casting, or urethane casting. Marks go on parts built in-house or on substrates supplied for finishing.
Key Factors, Common Issues, and Quality Control
Several variables interact to determine whether a pad-printed mark actually performs. Reviewing them in sequence helps avoid guesswork later.
Plastic resin and additives. ABS, polycarbonate, PVC, polypropylene, polyethylene, nylon, acrylic, and polyurethane each carry different surface energy and chemical resistance. Filled or textured grades add another variable. Verify ink compatibility against the specific resin grade, not just the generic material name.
Surface condition. Mold release, oils, dust, silicone contamination, and gloss level can all block uniform adhesion or create visible defects, even on a resin that's normally compatible with the ink.
Ink and pretreatment compatibility. Ink, solvent, hardener, primer, and surface treatment need to be selected as one matched system. Swapping just one component can undo adhesion that worked in testing.
Part geometry and artwork. Watch for:
- Curvature and sharp transitions
- Nearby walls or tight clearances
- Small text or fine lines near the printable limit
- Artwork placed too close to an edge, risking distortion
Fixture and repeatability. Nests establish consistent part position. Poor fixturing shows up as registration shifts, uneven pressure, or smearing, and it often explains the gap between a clean prototype print and an inconsistent production run.
Process conditions. Ink viscosity, evaporation rate, pad condition, plate wear, contact pressure, and ambient humidity all drift over a production run. Document acceptable ranges rather than relying on "it looked fine this morning."
Quality validation. Before releasing a print for production, confirm:
- Sample approval against the documented standard
- Adhesion and rub/abrasion testing
- Chemical exposure testing where relevant
- Color, opacity, and dimensional placement checks
Common Issues and Misconceptions
A few misconceptions cause more rework than almost anything else in pad printing.
"Dry to the touch" doesn't mean cured. As covered above, full adhesion and abrasion resistance often develop days after the ink feels set.
"Any ink sticks to any plastic." It doesn't. Resin compatibility, surface prep, and validation testing determine adhesion — not the fact that pad printing is being used at all.
Common defects and their usual root causes:
| Defect | Likely cause |
|---|---|
| Pinholes | Static charge or dust on the surface |
| Ghosting (double image) | Machine vibration during the print cycle |
| Blurred edges | Excess pad pressure or plate etch too deep |
| Misregistration | Fixture instability or multi-color alignment error |
| Uneven opacity | Inconsistent doctoring or ink viscosity drift |
Pad printing isn't automatically permanent, either. Durability depends on ink chemistry, surface prep, complete curing, and the part's actual operating environment: heat, chemical exposure, and handling.

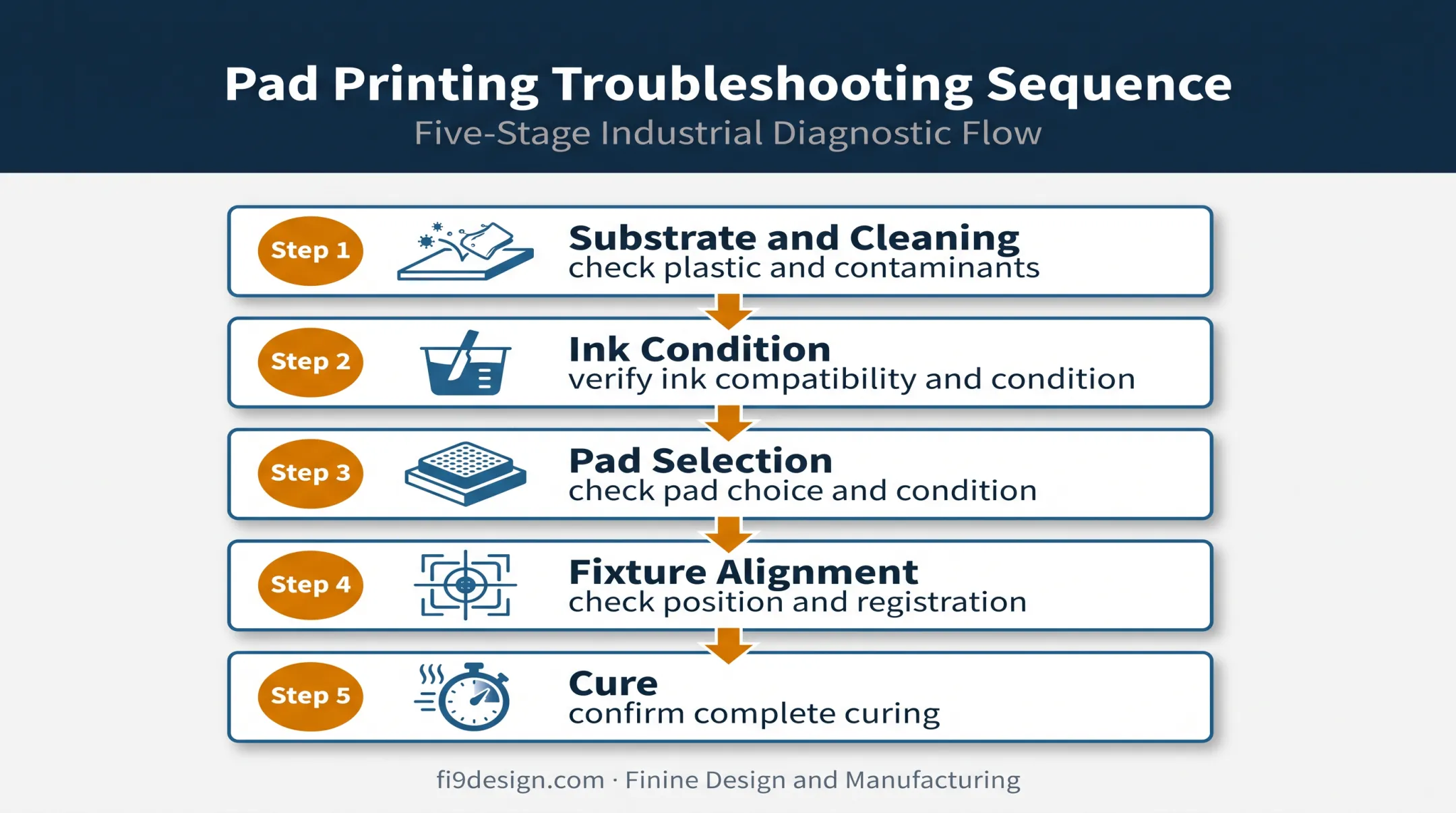

When a defect shows up, troubleshoot systematically. Start with substrate and cleaning, then check ink condition, pad selection, fixture alignment, and cure, rather than changing one variable at random and hoping.
Finine Design and Manufacturing's Role in the Broader Workflow
Pad printing rarely stands alone. It's one step in a longer sequence that starts with CAD modeling and runs through 3D-printed prototypes, injection-molded or urethane-cast production parts, and finishing.
Finine Design and Manufacturing, based in San Diego, handles that full sequence for clients in automotive, military, consumer electronics, and medical (dental and orthopedic) product development.
Production finishing includes pad printing on plastics after machining, molding, or casting, along with silk screening, rub-on graphics, and other cosmetic options. The right marking method depends on your part, volume, and durability needs. If you're moving from prototype to production, discuss where pad printing fits versus the alternatives below.
When Pad Printing May Not Be Appropriate
Pad printing isn't the default answer for every graphic. A few situations point elsewhere.
Screen printing tends to win for large, flat, or broadly curved graphics covering a wide area, especially at higher volumes where thicker ink deposits or bold coverage matter more than fine detail.
UV inkjet printing makes more sense for full-color, photographic, or frequently changing artwork. Intertech Plastics documented this directly: a medical-device client originally specified pad printing for a three-color logo, but color-by-color registration and slow production time pushed the project to inkjet instead (Intertech Plastics case study).
More colors mean more separate print passes in pad printing — and more chances for misalignment.
Laser marking suits permanent, wear-resistant, solvent-free marks, particularly for traceability codes. Results depend heavily on the plastic's resin, color, and additive package, so a laser mark that looks sharp on one grade of plastic may show poor contrast on another.
Other alternatives worth considering:
- Labels and decals for low-cost, low-volume needs
- Molded-in graphics or in-mold decoration when artwork can go into the tooling from the start
- Embossing for texture-based branding without ink
Quick decision checklist:
- Is the graphic large or spread across a flat area? → Consider screen printing
- Does the artwork use many colors or change often? → Consider UV/digital printing
- Does the mark need to survive heavy abrasion without ink? → Consider laser marking
- Is this a one-time prototype run? → Labels may be faster and cheaper
- Is pad printing being chosen just because it's familiar, not because it fits? → That's a warning sign worth revisiting
Conclusion
Pad printing uses an etched plate and a silicone pad to put detailed graphics on plastic parts, including the curved, recessed, and textured surfaces other methods struggle to reach. A sharp, durable result depends on more than the printer itself. These factors have to work together:
- Resin selection
- Surface prep
- Ink chemistry
- Fixture design
- Curing and inspection
Test your graphics during prototyping. Confirm the marking process actually holds up under the conditions your finished product will face, not just how it looks fresh off the press.
If you're developing a plastic part and working through where graphics fit into your prototype-to-production path, Finine Design and Manufacturing can talk through the options. That spans CAD and prototyping through molding and production finishing, and helps confirm whether pad printing or another method makes sense for your project. Reach out to Jaime at Jaime@fi9design.com or 1.858.900-9787.
Frequently Asked Questions
What kind of ink will stick to plastic?
Adhesion depends on the plastic resin, surface condition, ink formulation, and curing method. Some plastics, like polypropylene, need pretreatment before ink will bond. Always test the full ink-and-substrate combination rather than assuming compatibility.
Is pad printing permanent?
Pad printing can be highly durable, but it's not automatically permanent. Ink chemistry, surface prep, curing, and exposure to abrasion, chemicals, or heat all affect longevity. Validate durability against your product's actual service conditions.
Can you laser print onto plastic?
Laser marking works on many plastics, but it differs from pad printing: it alters the surface rather than depositing ink. Results depend on resin, pigments, and additives, so compare both methods for your part and durability needs.
