Many teams treat the first working model as proof a design is finished. It usually isn't. Protolabs notes that early prototypes often use materials and manufacturing processes unlike those intended for final production, so a successful test on one process doesn't automatically carry over to another.
This guide covers what a pre-production prototype actually is, the common types teams rely on, a practical testing process, the documents you need before sign-off, and how to judge whether a product is truly ready for production.
Key Takeaways
- Design prototypes prove an idea works; pre-production builds must match production materials, tooling, and processes.
- Match prototype type to the question: fit, function, durability, or manufacturability.
- Testing needs documented objectives and acceptance criteria, not just a thumbs-up on appearance.
- Record every design change, test result, and approval before production starts.
What Is a Pre-Production Prototype?
Pre-production is the stage between design validation and full-scale manufacturing. The design is mature enough that the team stops asking "does this concept work?" and starts asking "can we build this the same way, every time, at scale?"
That shift matters because an early prototype and a pre-production prototype answer different questions.
| Factor | Early Prototype | Pre-Production Prototype |
|---|---|---|
| Purpose | Check geometry, rough fit, or a core idea | Confirm a mature design is ready for tooling and production |
| Timing | Early in development | After design review, before volume manufacturing |
| Material | Substitute materials common | Production-intent or final material |
| Method | 3D printing, hand assembly | Production-intent tooling or processes |
| Quantity | Often one to five units | Enough to validate consistency, sometimes dozens |
| Approval outcome | Internal design feedback | Formal go/no-go for production release |

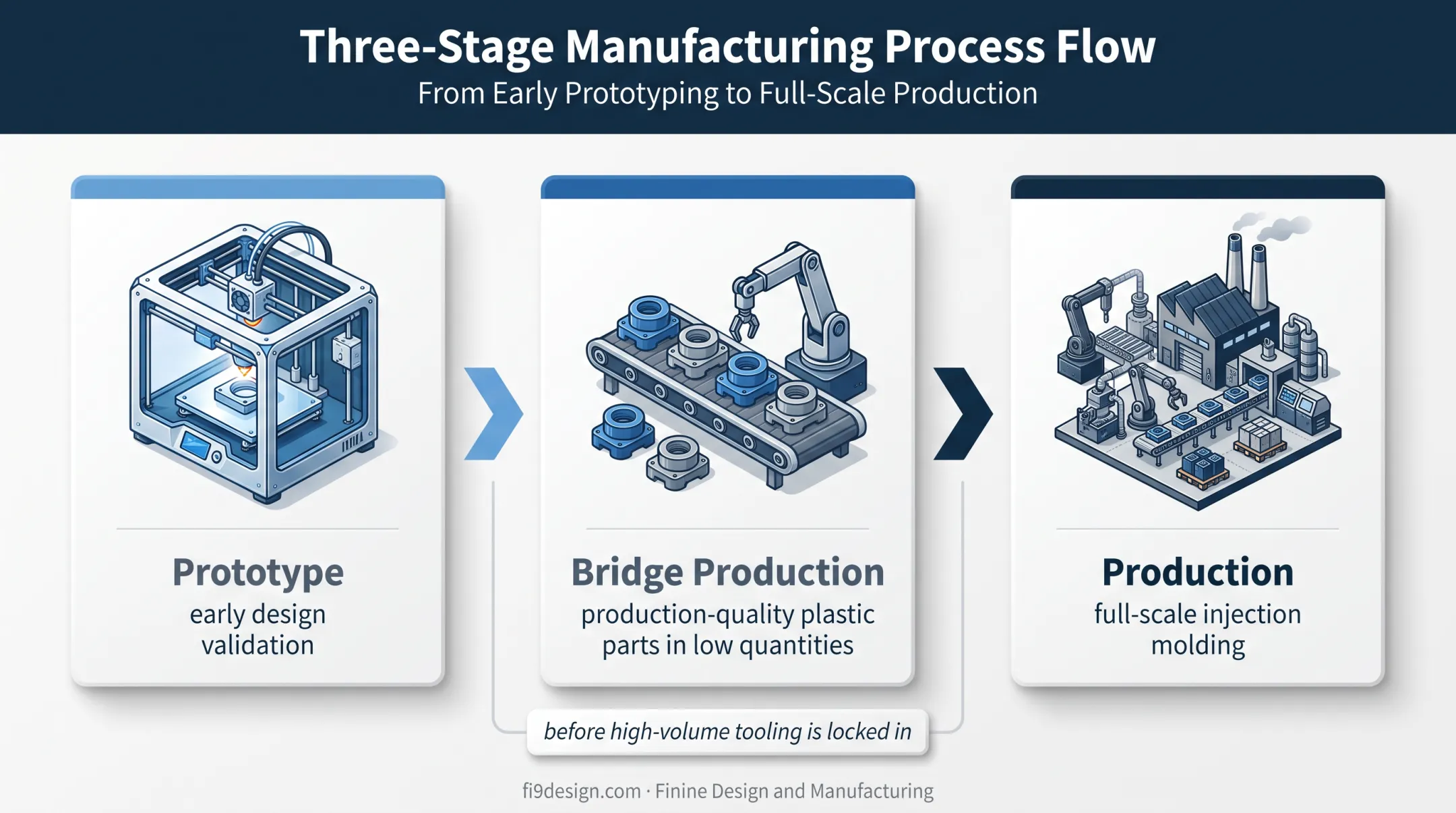

Finine Design and Manufacturing's development path follows the same progression: Prototype → Bridge Production → Production. Bridge production sits between early prototypes and full-scale injection molding, delivering production-quality plastic parts in low quantities before high-volume tooling is locked in.
A Prototype, a Production-Intent Sample, and a Pilot Build Aren't the Same Thing
Industries use "pre-production prototype" loosely, and that causes confusion. Three terms get used interchangeably when they shouldn't be:
- Functional prototype: proves operation, movement, or assembly logic—often without final materials.
- Production-intent sample: uses representative materials and methods to verify the mature design still performs.
- Pilot build: runs actual production tooling and process to confirm the line can make conforming parts at rate.
A working functional prototype is not proof a pilot build can run at volume. Treating those stages as interchangeable is where most production surprises start.
Common Types of Pre-Production Prototypes
No single physical model can answer every question in your development plan. Each prototype type exists to validate a specific thing, and conflating them leads teams to approve designs on incomplete evidence.
| Type | Best Use | Limitation |
|---|---|---|
| Proof-of-concept | Verify a core idea, basic geometry, or one essential function | Not representative of final form, function, or use conditions |
| Appearance / look-like | Assess size, shape, ergonomics, surface finish, interface layout | May not function at all; visual approval proves nothing about reliability |
| Functional / work-like | Test movement, fit, load response, electrical or mechanical operation | Function on a substitute material doesn't guarantee performance in the production material |
| Engineering / design-validation | Evaluate the full design, including materials, interfaces, and failure modes, before tooling | A clean result here still isn't proof the production process can repeat it |
| Production-intent / pilot build | Use production materials, tooling, assembly steps, and inspection methods to check manufacturing readiness | Requires the actual process, not a stand-in, to mean anything |
Why You Need More Than One Build
A team that treats its first physical model as the final pre-production sample skips the questions that matter most at each stage. Appearance prototypes can't tell you whether a hinge survives 10,000 cycles. Functional prototypes built in 3D-printed nylon can't tell you how an injection-molded part will shrink or warp.
Finine Design's prototyping work illustrates this layering in practice. Parts typically move through:
- 3D printing for fast fit checks and design reviews
- CNC machining when a printed part can't match the finished component's dimensional accuracy
- Urethane casting with production-like materials for functional testing ahead of injection molding
Each process answers a different question. The choice depends on what you're trying to prove, not just what's fastest or cheapest.
A part that performs well as a urethane casting, for instance, still needs confirmation once it's actually injection molded. The resin flow, shrinkage, and tooling behavior simply aren't identical across processes.
How to Test a Pre-Production Prototype
Testing without defined goals produces opinions, not evidence. A structured approach catches problems before they reach the production floor.

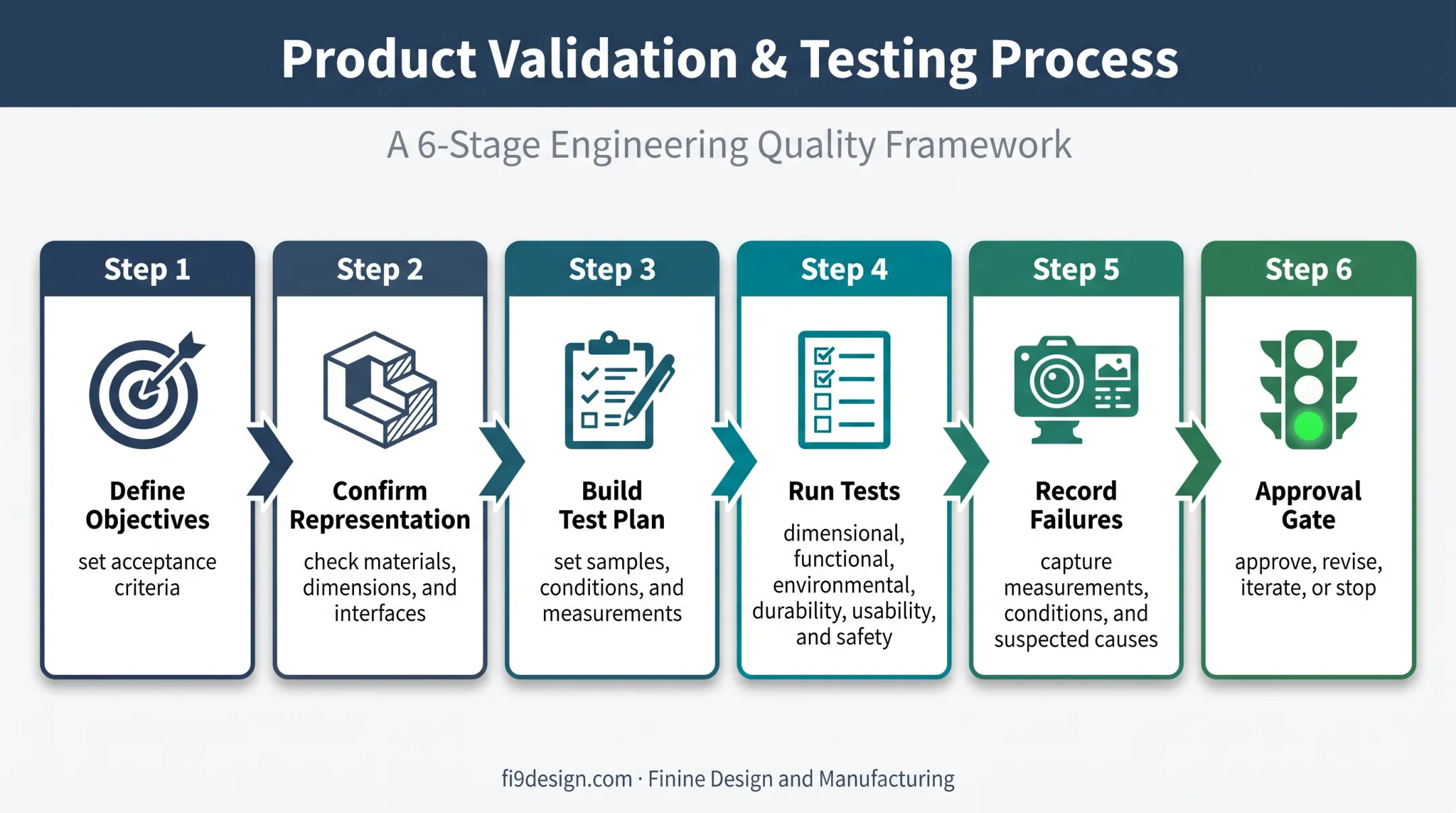

- Define test objectives and acceptance criteria first. Connect every test to a specific requirement, whether that's fit, function, durability, safety, appearance, usability, or manufacturability. Don't start testing until you know what "pass" looks like.
- Confirm the prototype is representative enough. Check material grade, dimensions, surface finish, electronics, interfaces, assembly method, and whether production-intent tooling is involved. A test on the wrong build answers the wrong question.
- Build a test plan. Identify sample quantity, test conditions, equipment, responsible personnel, sequence, measurements, required controls, and what records must be retained.
- Run the applicable tests. Cover dimensional, functional, environmental, durability, usability, and safety checks as needed. Match standards to your industry—FCC for RF electronics, ISO 16750-1 for automotive electrical components, FDA design controls for medical devices—and confirm what applies before you start.
- Record every failure and unexpected observation, with photographs, measurements, test conditions, and suspected causes. Separate design defects from manufacturing, assembly, material, or measurement-system issues; they require different fixes.
- Review results through a formal approval gate. Approve the design, approve with documented changes, send it back for another iteration, or stop the project until a critical issue is resolved.
According to Formlabs' validation testing framework, staged testing moves from proof-of-concept through engineering validation, design validation, and production validation, with each phase using more production-representative builds than the last.
Finine Design supports this kind of staged strategy through its combination of CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting, matching the process to whichever validation objective is on the table rather than forcing one method to answer every question.
Caution: successful testing on a prototype made with substitute materials or non-production processes does not prove the final production version will perform identically. Treat those results as directional, not final.
Pre-Production Documents and Approval Criteria
Approval decisions need a paper trail. Without documentation, you can't prove what was tested, what changed, or who signed off.
Technical documents:
- Approved CAD files and engineering drawings
- Specifications, bill of materials, and material requirements
- Tolerances and finish requirements
- Assembly instructions and revision history
Testing records:
- Test plan and acceptance criteria
- Sample identification and equipment or calibration information
- Raw results, photographs, and failure reports
- Corrective actions and a final test summary
Manufacturing and quality documents:
- Process instructions and inspection plans
- Measurement records
- Supplier or material documentation
- Packaging requirements and nonconformance procedures
Design-review package:
- Requirements traceability and an open-issue log
- Engineering change records
- Responsible approvers, approval dates, and status per requirement
Regulated or safety-critical products need more. FDA design-control guidance calls for documented verification and validation methods with acceptance criteria, confirmed on representative product before release.
Medical devices, automotive safety components, and defense equipment often add risk analysis, deeper traceability, and sometimes external lab testing. Verify current requirements for your product category rather than assuming one standard fits all.
A Practical "Ready to Advance" Checklist
Before committing to production, confirm:
- Functional performance meets every documented requirement
- Dimensional conformity holds across sampled units
- Appearance meets approved criteria
- Manufacturability is reviewed alongside function
- Assembly is repeatable across multiple builds
- Safety or compliance needs are addressed and documented
- Documentation is complete and signed off by stakeholders
From Prototype Approval to Production

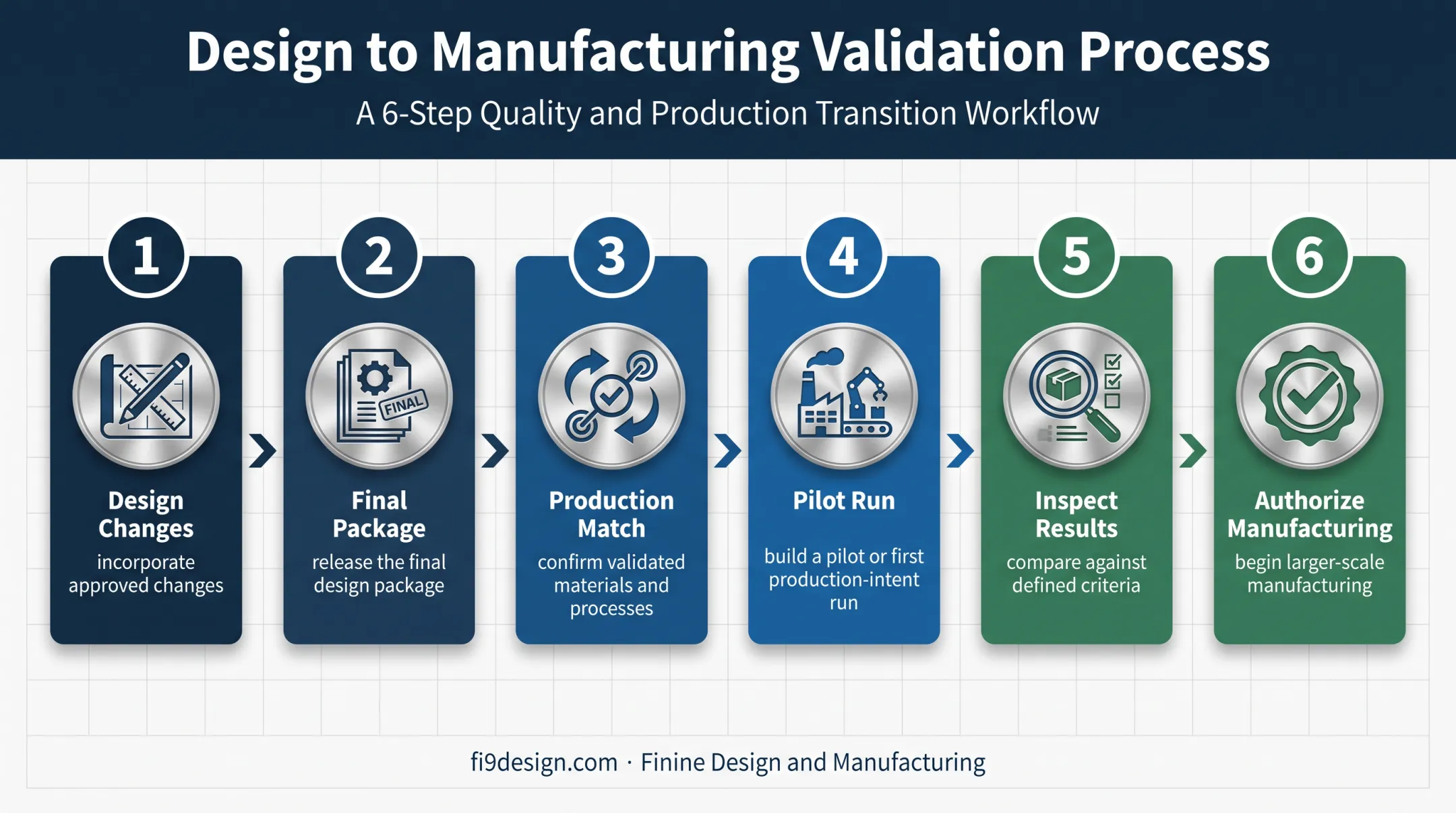

Approval isn't a single moment. It's a sequence:
- Incorporate approved design changes
- Release the final design package
- Confirm production materials and processes match what was validated
- Build a pilot or first production-intent run
- Inspect results against defined criteria
- Authorize larger-scale manufacturing only once those criteria are met
Common mistakes that create avoidable risk:
- Jumping straight from one prototype to mass production
- Using a single prototype as the sole quality benchmark
- Skipping design freeze before tooling
- Changing materials without retesting
- Failing to reserve samples for destructive or compliance testing
An integrated partner reduces the handoffs where these mistakes tend to happen. Finine Design and Manufacturing handles CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, production painting, and graphic finishing under one roof.
An approved prototype can move straight into production without a supplier change, which cuts the re-validation work that often follows a vendor switch. No single company can replace your own regulatory or compliance sign-off; that remains the client program's responsibility.
Conclusion
Prototypes answer whether a design works. Production-intent prototypes and pilot builds answer something different: whether the product can be made consistently and released responsibly. Conflating the two is how teams end up with tooling cut for a design that was never actually confirmed as manufacturable.
Before you lock tooling, run this sequence:
- Define product requirements first
- Match the prototype type to your real validation question
- Document every test and design change
- Get formal approval before committing to production—not after
That order keeps manufacturability confirmed before spend, not after.
Frequently Asked Questions
What are the common types of prototypes used in pre-production?
The main types are proof-of-concept, appearance (look-like), functional (work-like), engineering/design-validation, and production-intent prototypes. Terminology varies by industry, so confirm what each term means for your specific program before relying on it.
What does "pre-production" mean?
Pre-production is the stage after a design is sufficiently developed but before full-scale manufacturing begins. It's when both the product and the production process are validated together, not just the design on its own.
What is an example of pre-production?
A limited pilot build using final materials, production-intent tooling, documented assembly instructions, and formal inspection procedures is a typical example. Teams run it before committing to a larger production batch.
What are the key pre-production documents?
Core documents include approved drawings and CAD files, a bill of materials, specifications, a test plan, inspection records, manufacturing instructions, change history, and formal approval sign-offs from responsible stakeholders.
