Introduction
3D printing used to mean one thing: a fast way to check a design before committing to real tooling. That's changed. Manufacturers now run additive processes as part of repeatable, digitally managed production lines, not just prototyping labs.
Many shops still struggle when printers sit outside the rest of production. Manual handoffs, disconnected scheduling, and slow post-processing keep additive stuck in the prototype bay.
Automation closes that gap. Beyond unattended overnight runs, real automation connects CAD data, job scheduling, material handling, robotic part transfer, inspection, post-processing, and packaging into one workflow.
This article covers the benefits, the workflow design, process selection, and the practical limits of automating additive manufacturing. We'll look at applications across automotive, defense, consumer electronics, dental, and orthopedic product development, and where a connected system actually pays off.
Key Takeaways
- Automate work around the printer—scheduling, inspection, finishing—for bigger gains than automating the print job itself
- Let material, geometry, volume, and quality drive technology choice—not which printer is free
- 3D printing works best paired with CNC machining, molding, and casting, not as a standalone solution
- Manual post-processing is the hidden bottleneck in an otherwise automated line
What Is Automated Manufacturing With 3D Printing?
Automated manufacturing with 3D printing is a connected process. Digital design files, printers, software, sensors, robots, and downstream production steps work together with limited manual intervention at each handoff.
That definition splits into two distinct levels, and conflating them is a common mistake.
Printer-Level Automation
This covers what happens at the machine:
- Job queuing and remote monitoring
- Automatic bed or part release
- Material tracking and consumption alerts
- Failure alerts when a print deviates from expected parameters
Workflow-Level Automation
This covers everything the printer doesn't touch:
- Robotic part handling and transfer between stations
- Cleaning, support removal, and sorting
- Part identification and traceability tagging
- Inspection, finishing, and packaging
A typical digital thread runs from the CAD model and build preparation file, through the printed part, into inspection records and delivery documentation. Sensors, machine data, and computer vision increasingly support this chain.
In 2025, EOS described how its partner Volum-e used AM Explorer software to analyze optical tomography and melt-pool data automatically, cutting image-analysis time by 90% for defect detection on metal builds. That's a vendor-reported figure specific to that deployment, not an industry average, but it shows where automated quality review is headed.
None of this removes people from the equation. Design decisions, process validation, maintenance, exception handling, and final sign-off on critical parts still require trained staff. Automation handles repetition; humans handle judgment calls.
Why Combine 3D Printing and Automation?
The case for combining the two comes down to five practical mechanisms, each with real limits worth acknowledging.
Shorter design-to-production cycles
Automation reduces handoffs between design, prototyping, inspection, and revision. When a CAD update flows directly into a scheduled print job without a manual re-upload or approval chain, iteration speeds up. Fewer handoffs mean fewer chances for the wrong file version to reach the printer.
Labor efficiency, not labor replacement
Automating repetitive handling and monitoring frees skilled staff for engineering, quality, and process improvement work instead of babysitting a build plate. The goal is better allocation of people, not fewer people watching machines.
Consistency through standardization
Repeatable machine settings, standardized workflows, and digital records reduce the variation that creeps in when every build depends on an individual operator's habits. Automated inspection adds a consistent check that doesn't get tired at hour ten of a shift.
Lower downtime for tooling and fixtures

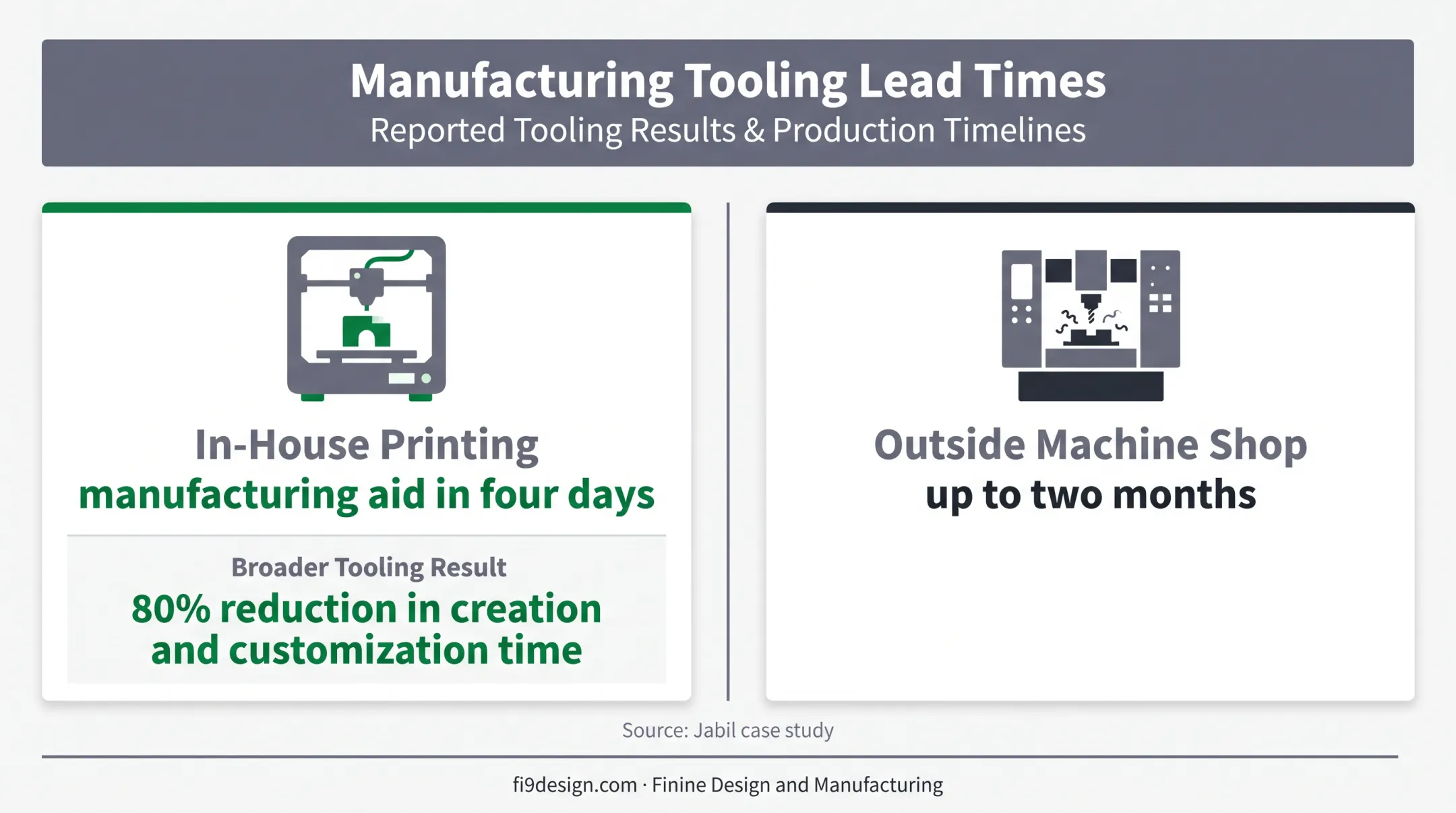

This is where on-demand printing shows a clear advantage. Jabil's additive manufacturing case study reports producing a manufacturing aid in-house in four days, compared with up to two months through an outside machine shop.
Across its broader tooling and fixture work, Jabil reports an 80% reduction in creation and customization time. That's Jabil's own observed result, not a universal benchmark, but it illustrates why in-house printing shortens the sourcing loop for jigs, fixtures, and replacement components.
Design freedom that improves automated systems
Additive design freedom isn't limited to the part itself. It extends to the tools that handle the part:
- Lightweight end-of-arm tooling for robotic pick-and-place
- Conformal cooling channels in fixtures
- Ergonomic jigs shaped to the operator, not the machine
- Consolidated assemblies that reduce fastener count
The Honest Limitation
Automation isn't free to implement. It requires upfront integration work, reliable data feeds, ongoing maintenance, trained operators, and quality controls before it pays for itself. Skip the business case, and you'll end up with expensive equipment running at a fraction of its potential.

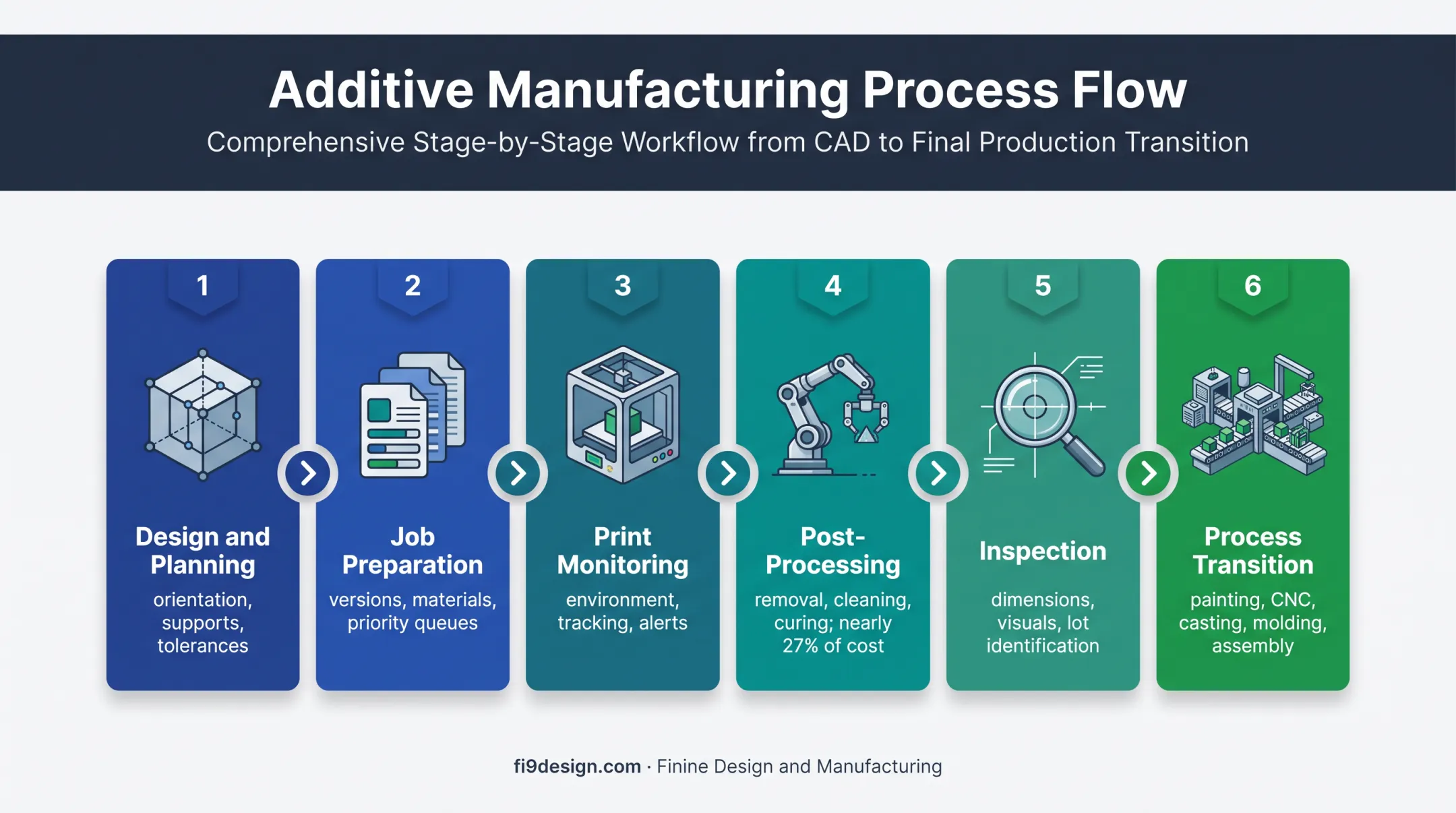

How an Automated 3D-Printing Workflow Works
A working automated system follows a sequence. Skip a step, and the automation upstream often just creates a pile of unprocessed parts downstream.
1. Design and Process Planning
Before anything prints, design for additive manufacturing locks in how the part will build, inspect, and finish:
- Orientation, support strategy, tolerances, and wall thickness
- Inspection and finishing path
- Production targets: volume, surface finish, strength, and acceptance criteria
These decisions belong before the first build, not after parts fail downstream.
2. Digital Job Preparation and Scheduling
A connected system manages build files, printer availability, material requirements, and priority queues. Version control and file permissions matter here more than most teams expect. Without them, an outdated revision or wrong material spec can slip into a production run undetected.
3. Print Execution and Monitoring
Machine monitoring, environmental controls, material tracking, and remote status alerts keep a build on track. Unattended operation still needs maintenance plans, safe operating procedures, and a person ready to intervene when something goes wrong, because something eventually will.
4. Post-Processing and Material Handling
This step gets automated last, and it shows. Manual post-processing is where otherwise-automated lines quietly stall.
Tasks that can move off the bench include:
- Build-platform removal and cleaning
- Support removal and curing
- Part ID, sorting, and finishing
Wohlers Associates' research for its 2021 report found post-processing represented nearly 27% of total AM part-production cost, based on input from 124 service providers across 27 countries. Printing fast doesn't help if parts sit in a queue waiting to be cleaned by hand.
5. Inspection and Traceability
Dimensional and visual inspection, process data, and lot identification feed back into the digital thread.
- ISO/ASTM 52920 covers qualification of industrial AM processes and production sites.
- ISO/ASTM 52904 covers production control for metal powder-bed fusion in critical applications.
- FDA guidance on additive manufactured devices outlines design and testing considerations for medical work.
6. Finishing, Assembly, and Transition to Other Processes
Printed components often don't stay printed components. They move into painting, CNC machining, urethane casting, injection molding, or final assembly.
That handoff is where Finine Design and Manufacturing fits. CAD modeling and 3D printing feed into CNC machining, urethane casting, injection molding, and production painting under one roof, so parts don't bounce between vendors on the path from prototype to production.
Choosing the Right 3D-Printing Process and Materials
Process selection should follow the part's job, not whichever printer happens to be free.
| Process | Typical Material | Surface Finish Tendency | Best Fit |
|---|---|---|---|
| FDM/FFF | Thermoplastic filament | Visible layer lines, support marks | Functional tools, fixtures, low-cost iteration |
| SLA | Photopolymer resin | Smooth, high detail | Precision parts, presentation models |
| SLS | Nylon/TPU powder | Slightly grainy, no supports needed | Functional end-use parts, batch production |
| MJF | PA 11/PA 12 powder | Powder-bed texture, generally smooth | Snap-fit parts, functional prototypes |
| DMLS/SLM | Metal powders (titanium, aluminum, steel) | Requires post-processing for functional surfaces | Complex metal parts, lightweight tooling |
Material selection should trace back to what the part actually needs to survive: mechanical load, temperature exposure, chemical contact, wear resistance, flexibility, or biocompatibility for dental and orthopedic applications.
A Decision Checklist for Equipment and Automation
Before committing to a system, work through:
- Production volume and part variety — one-off prototypes versus repeatable batches
- Repeatability requirements — how tight the tolerances need to be, run after run
- Labor availability and skill level — capacity to operate and maintain the system
- Material handling needs — distinct safety and storage demands for powder, resin, or filament
- Inspection requirements — manual spot-checks or automated dimensional scanning
- Software integration — fit with existing CAD and production tracking systems
- Total cost of ownership — full lifecycle cost, not just the printer's purchase price
A single desktop printer for prototyping is a different investment than a low-volume production cell, which is different again from a print farm running dozens of connected machines. Match the scale of automation to the scale of the problem.
Applications and Use Cases
Rapid Prototyping and Design Validation
Automated iteration shortens the loop between design and physical testing across automotive, defense, consumer electronics, dental, and orthopedic product development. Fewer manual handoffs between CAD revision and printed test article means faster design convergence.
Production Tooling and Manufacturing Aids
Printed jigs, fixtures, gauges, custom holders, and end-of-arm tooling are among the strongest practical use cases.

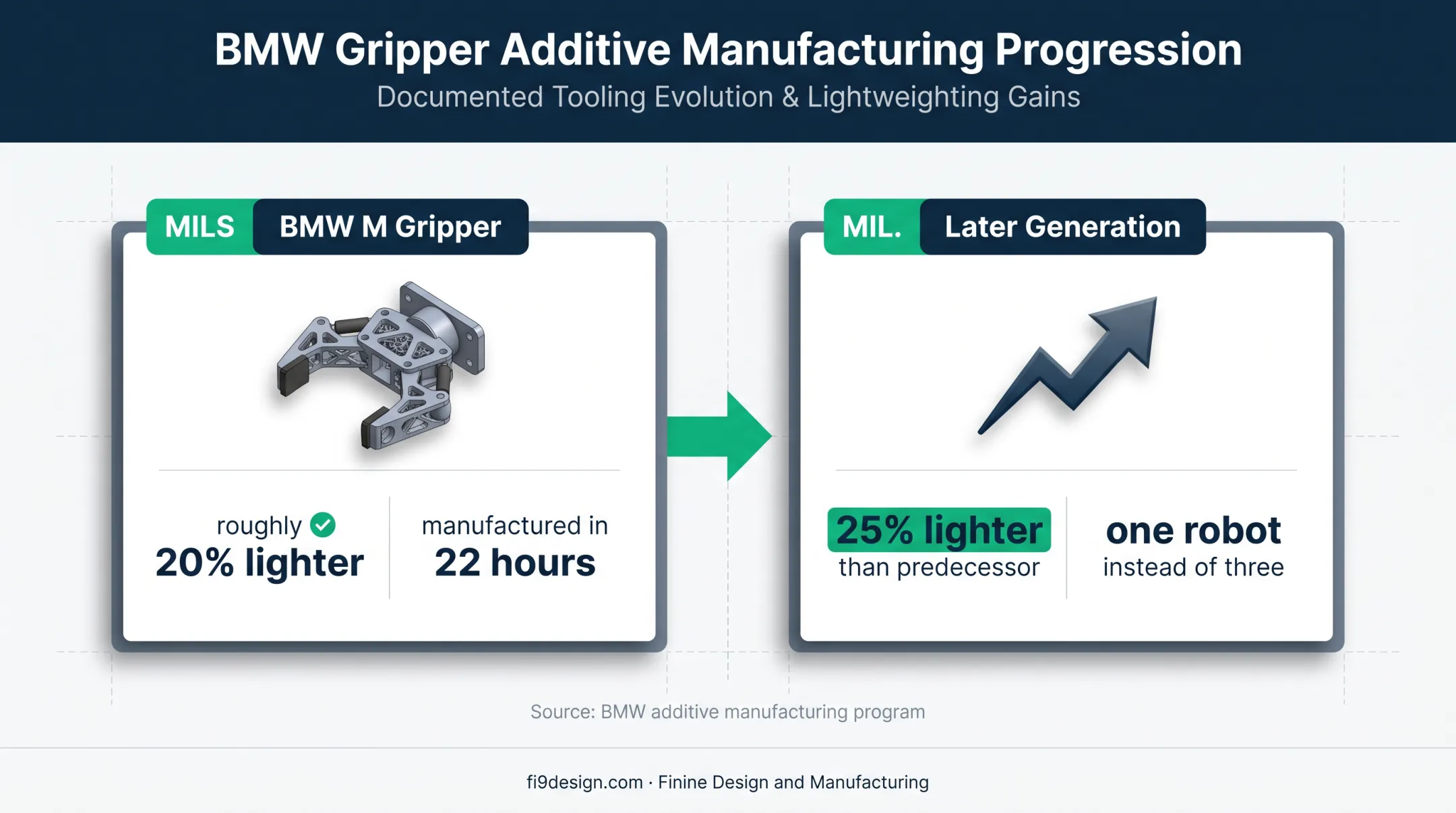

BMW's additive manufacturing program offers a documented example. A 3D-printed robotic gripper used in CFRP roof production for BMW M models was roughly 20% lighter than a conventional version and could be manufactured in 22 hours.
A later generation, introduced in 2023, was 25% lighter than its predecessor, which let BMW's roof-handling operation run on one robot instead of three.
That's a specific documented outcome for that gripper and line configuration, not a universal productivity multiplier. It still shows what lightweight, custom-printed tooling can enable.
Low-Volume, Customized, and Bridge Production
Automation lets manufacturers support part variety without committing to conventional tooling for every design. This matters most for:
- Bridge production between prototyping and hard tooling
- Customized medical or orthopedic components
- Defense applications with small batch sizes and frequent spec changes
Medical, defense, and other safety-critical or load-bearing parts still need application-specific validation. Automation speeds up production; it doesn't replace the qualification work those categories require.
Planning an Automated Manufacturing Program
Start with the bottleneck, not the equipment catalog. Is the constraint printing speed, scheduling chaos, slow post-processing, inconsistent inspection, or supplier lead times? Each one points to a different automation investment.
A phased approach beats a full build-out on day one:
- Map the current workflow — baseline cycle time, throughput, and first-pass yield
- Automate one contained task — scheduling, monitoring, part removal, or inspection
- Measure the result against scrap rate, rework, downtime, and on-time delivery
- Expand only after that first task proves out
Once a single task is running cleanly, plan how the rest of the stack connects. Integration reaches past the printer:
- CAD and build-prep software
- Manufacturing execution systems (MES)
- Sensors, robots, and inspection equipment
- Data storage and cybersecurity controls
Workforce planning matters just as much:
- Operator training and manual override procedures
- Material storage and ventilation
- Preventive maintenance and emergency response
Before scaling, validate with representative parts, repeat builds, documented acceptance criteria, and a clear review of failure modes.
Then compare total cost of ownership—equipment, labor, maintenance, and facility costs—against outsourcing or conventional manufacturing before you lock in the investment.
Finine Design and Manufacturing works through this evaluation with clients directly. Its San Diego facility combines CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting, so a program can move from concept through bridge builds to full production without changing vendors at each stage.
Conclusion
Automated 3D printing works best as part of a connected system spanning design, production, inspection, post-processing, and delivery, not as an isolated piece of equipment. The printer is rarely the bottleneck; everything around it usually is.
If you're weighing where to start, identify your highest-value bottleneck first.
Finine Design and Manufacturing works with automotive, military, consumer electronics, and medical product teams as they move from concept and prototype work toward repeatable production. From its San Diego facility, the team can help map that path end to end.
Frequently Asked Questions
Which is better, FDM or SLA?
Neither is universally better. FDM favors functional tools and fixtures at lower cost, while SLA produces smoother, more detailed surfaces. The right choice depends on part function, material needs, and post-processing requirements.
What does automated manufacturing with 3D printing include?
It includes printer scheduling, remote monitoring, material handling, robotic part removal, inspection, post-processing, and traceability records. These steps connect through a digital thread, with human oversight at key checkpoints.
Can 3D printing be fully automated?
Many individual steps can run with limited intervention, but maintenance, quality decisions, exception handling, and process validation still require trained people, especially for critical or regulated parts.
What types of products benefit most from automated 3D printing?
Prototypes, custom parts, production tooling, jigs and fixtures, and low-volume products with frequent design changes benefit most. Automation cuts the overhead of reconfiguring for each variation.
How is quality controlled in automated 3D printing?
Quality control relies on validated designs and print parameters, machine monitoring, material tracking, visual and dimensional inspection, and documented acceptance criteria linked back to traceable production records.
When should a manufacturer choose 3D printing instead of CNC machining or injection molding?
Choose 3D printing for low volumes, complex geometry, and frequent design changes where tooling isn't justified. CNC machining and injection molding fit better as volume rises, or when tighter tolerances, surface finish, and material performance matter more.
