Prototype Injection Molding for Product Development

Injection mold cost is driven primarily by part size and complexity, material requirements, tolerance needs, number of cavities, surface finish, and expected production volume. Features such as undercuts, threads, tight tolerances, and complex geometry can require more advanced tooling. A prototype review and moldability assessment help define the appropriate tooling approach before a project moves forward.

The basic injection molding cycle includes clamping the mold closed, injecting molten plastic into the cavity, packing material to compensate for shrinkage, cooling the part until it is stable, and ejecting the finished part. For a development project, these production steps are preceded by CAD review, material selection, prototype testing, and tooling planning to help ensure the part molds consistently.

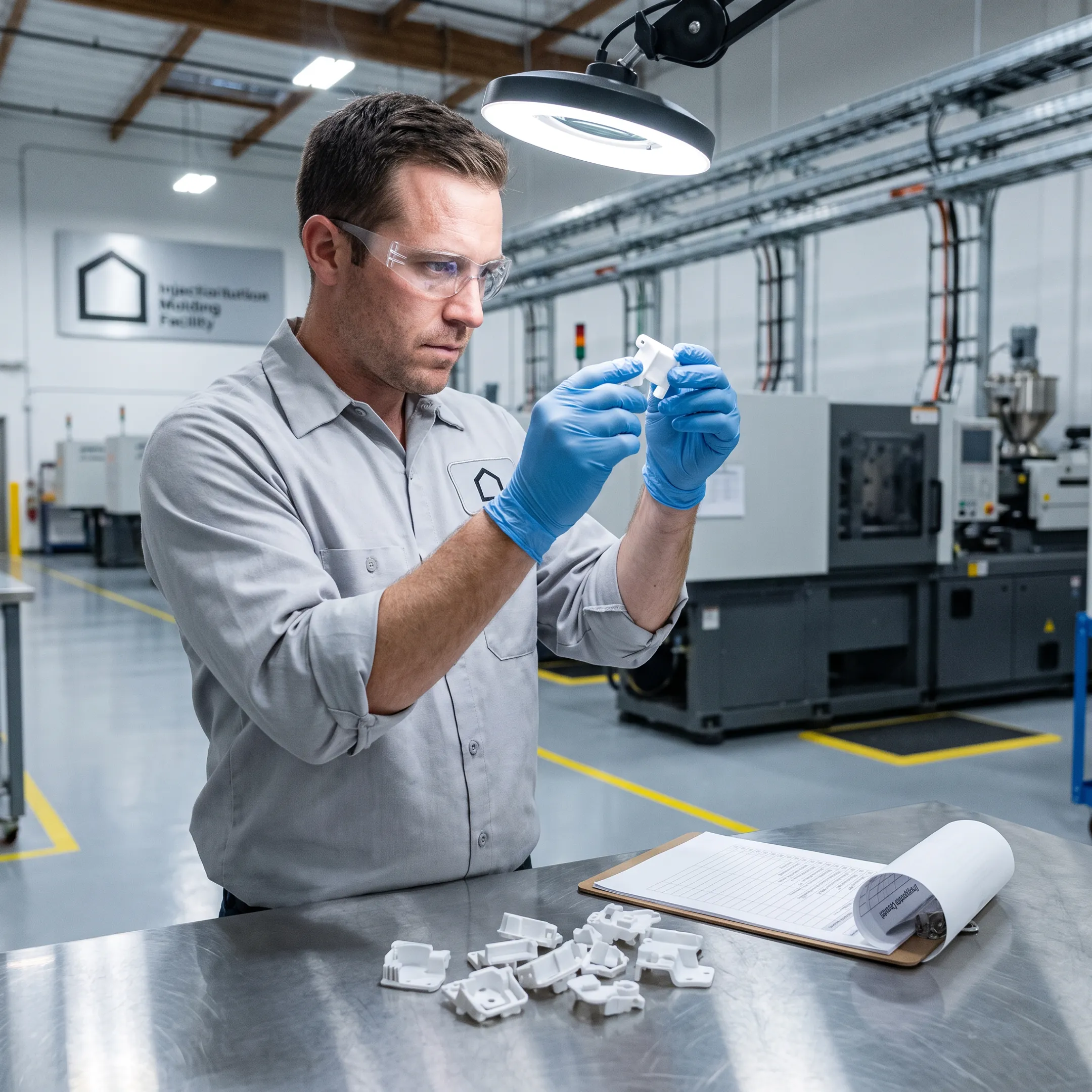

Prototype injection molding is valuable when a team needs parts that more closely represent a final molded product than 3D-printed samples can provide. It is especially useful for evaluating functional fit, material behavior, assembly, surface appearance, and repeatability. It can also help confirm that a design is practical for tooling and higher-volume production before larger commitments are made.

3D printing builds parts layer by layer and is often well suited to quick early-stage iterations. Injection molding forms parts by injecting material into a mold, enabling repeatable production and material options that can better reflect final-use requirements. Many development programs use 3D printing for initial design reviews, then progress to molded parts as functional and production requirements become clearer.

Yes. Finine Design and Manufacturing offers CAD modeling and design refinement as part of its integrated development capabilities. Reviewing geometry before tooling can address wall thickness, draft, undercuts, parting-line considerations, tolerances, and other moldability factors. This work helps align the design with its intended function while reducing avoidable changes later in the prototype or production process.

Material selection should reflect the part’s end-use needs, including strength, flexibility, heat resistance, chemical exposure, appearance, and regulatory considerations. The most appropriate resin also depends on the geometry and molding approach. During project planning, material requirements can be evaluated alongside functional testing goals so prototype parts provide useful feedback for the next development stage.

Yes. Finine Design and Manufacturing’s broader workflow includes production painting and product graphics in addition to molding and prototyping. These capabilities can support appearance models, branded product evaluations, labels, and finished-part presentation. Coordinating finishing with the manufacturing process helps maintain continuity between the intended design, the physical prototype, and future production requirements.

Finine Design and Manufacturing supports automotive, military, consumer electronics, and medical product development. The company has particular specialization in dental and orthopedic medical products. Each industry can bring different functional, material, documentation, and quality expectations, so the development path should be aligned with the application, testing needs, and planned production scale from the outset.
