Toy development is unforgiving on cost. Every issue caught after tooling starts costs more than the same issue caught during a foam mockup. According to Fictiv's analysis of late-stage design changes, the impact of a design change grows the longer you wait to catch it—production-stage changes are consistently the most expensive to fix.
This guide walks through the real stages of toy design and prototyping: how concepts become CAD models, the four prototype types every designer should understand, what "manufacturing-ready" actually means, and how to pick a development partner who won't lose your design intent along the way.
Key Takeaways
- Toy development runs through five stages: concept, CAD modeling, prototyping, design-for-manufacture, and tooling
- Four prototype types drive better decisions: conceptual, engineering/functional, aesthetic, and packaging
- A single integrated partner cuts handoffs and iteration cycles versus juggling separate vendors
- Injection molding stays the mass-production standard, so lock in design discipline before tooling
The Toy Design and Prototyping Process Explained
Every toy starts as a sketch, a 3D scan, or a rough CAD model. But manufacturability can't be an afterthought. It has to shape decisions from day one. A shape that looks great on screen can be nearly impossible to mold at scale.
Scaling down details is trickier than it sounds. When designers shrink a character or vehicle to toy size, small features like panel gaps and shutlines often disappear visually. To keep the design recognizable, engineers deliberately exaggerate these details beyond what looks "realistic" at full scale, so they survive miniaturization.
Breaking Down Complex Models
A sculpted, organic digital model rarely translates directly into a moldable part. Designers have to break it into individual components that a mold can actually produce, while preserving what made the original design work.

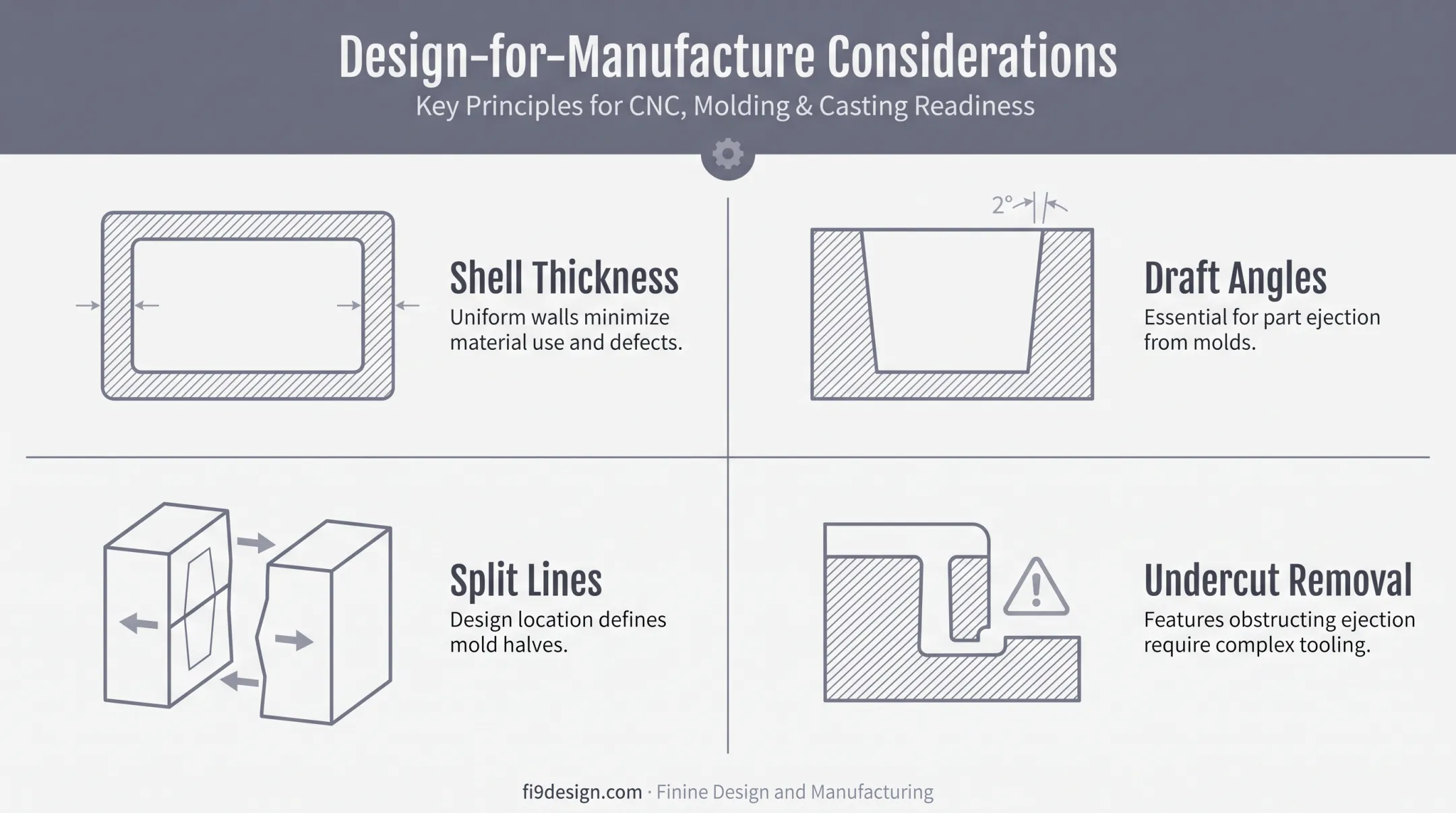

Key design-for-manufacture considerations at this stage:
- Shell thickness — uniform walls prevent warping and sink marks
- Draft angles — vertical faces need a slight taper so parts release cleanly
- Split lines — define where mold halves meet and show on the finished toy
- Undercut removal — features that would trap the part in the mold need redesigning or special tooling
Draft guidance is typically about 1 degree per inch of cavity depth, per Protolabs' injection molding guidelines.
Once the digital model is refined, 3D printing lets teams test scale and proportion before committing a dime to tooling. Teams also lock painting, assembly, and packaging here—the last checks before mass production begins.

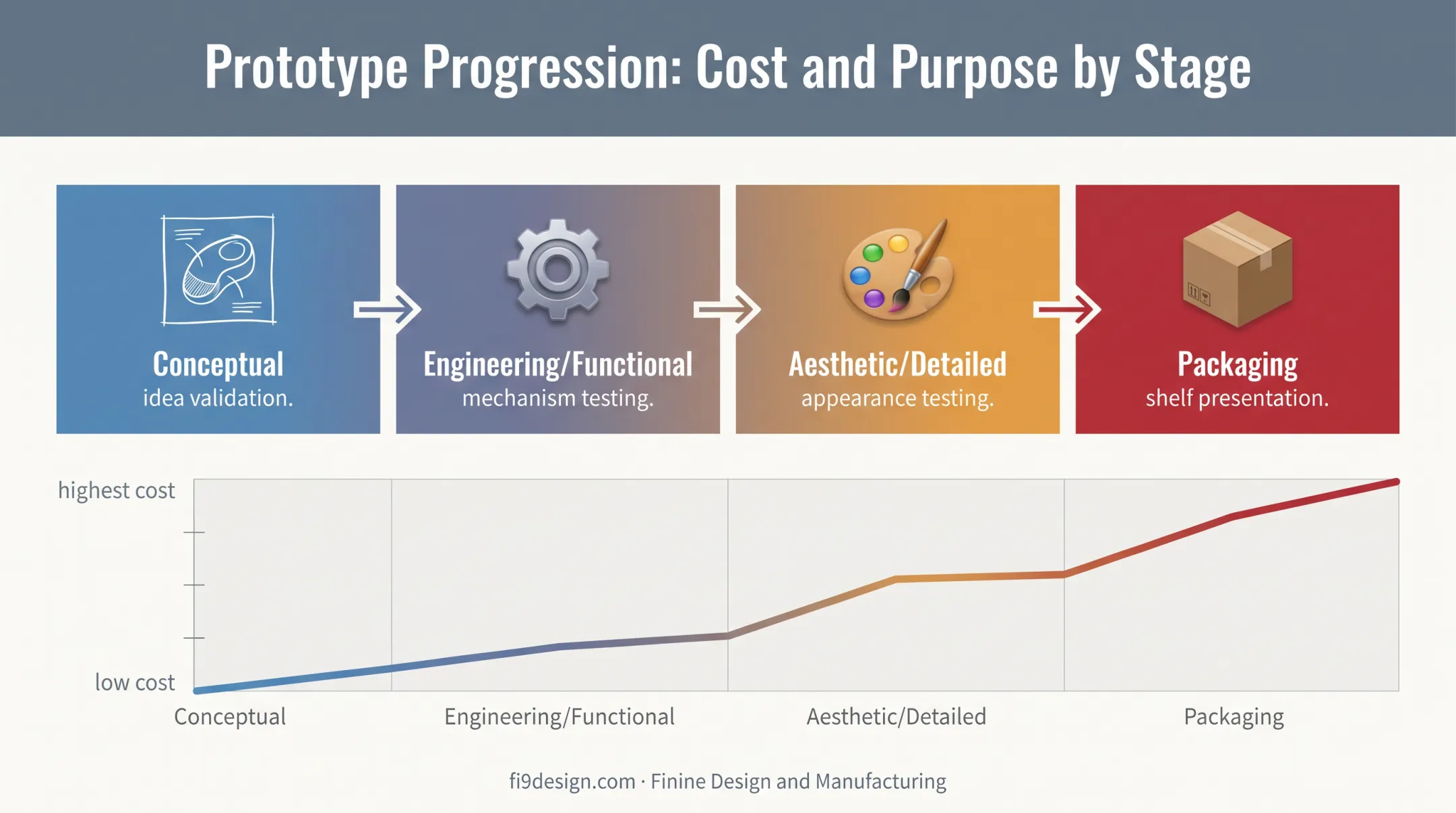

Four Types of Prototypes Every Toy Designer Should Know
Not every prototype answers the same question. Using the wrong type at the wrong stage wastes time and money.
Conceptual Prototypes
These are rough sketches or basic mockups built to visualize an idea before formal design work starts. They're cheap, fast, and disposable by design. Use them to win stakeholder buy-in, not to survive a drop test.
Engineering and Functional Prototypes
Built from CAD data and 3D printed (typically SLA or FDM) or CNC machined, these test whether the toy actually works. Does the joint articulate? Does the mechanism hold together? This is where structural and mechanical assumptions get validated before anyone invests further.
Aesthetic and Detailed Prototypes
Hand-finished, resin, or urethane-cast models that look close to the final product. These test texture, color, character likeness, and paint finish: the details a buyer or brand licensor will scrutinize before signing off.
Prototype Packaging
Packaging prototypes test fit, shelf presentation, and printed graphics before mass production. It's easy to treat packaging as an afterthought, but a box that doesn't close properly or graphics that print wrong are expensive mistakes to catch late.
Across all four types, the economics stay the same. Problems found early take hours to fix. Problems found after tooling cost weeks and far more money—a pattern Fictiv's cost-of-change research has documented clearly.
Preparing Your Design for Manufacturing-Ready Production
This is usually the biggest bottleneck in toy development. Moving from an organic, sculpted digital model to something a mold can actually produce requires real design decisions, not just cleanup work.

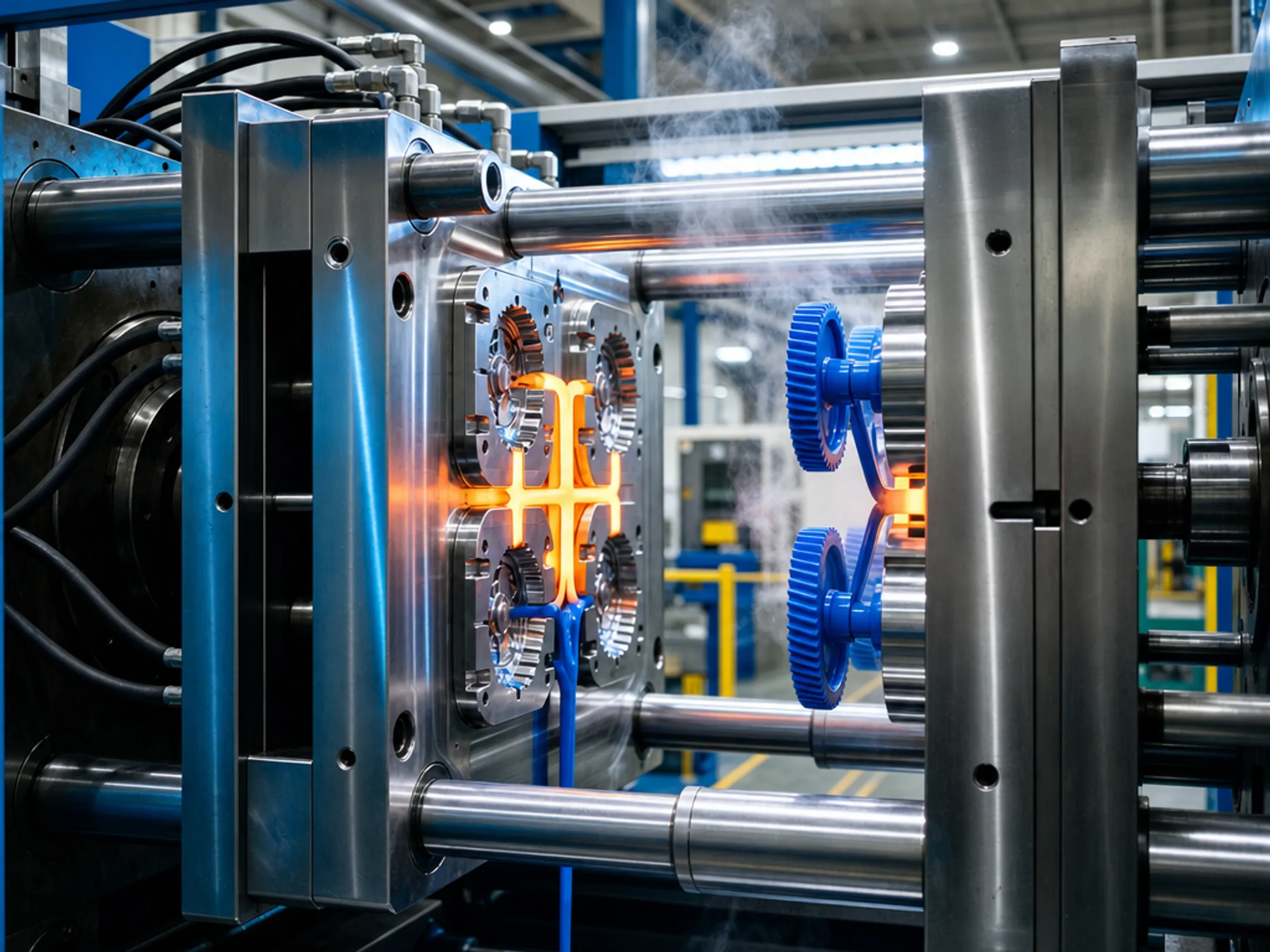

Injection molding requires:
- A machined mold with defined core and cavity surfaces
- Shut-off surfaces where mold faces meet to control material flow
- A standardized mold base compatible with CNC/CAM machining
Xometry's injection molding process overview describes this workflow directly: CAD data drives CNC machining of the mold, followed by DFM review, T1 sample production, and approval before full production begins.
When to Use Urethane Casting Instead
For low-volume runs or pre-tooling validation, urethane casting is a practical bridge. A 3D-printed or CNC-machined master pattern gets surrounded by silicone to create a mold, then liquid urethane is poured in to produce production-representative parts without the cost of steel tooling.

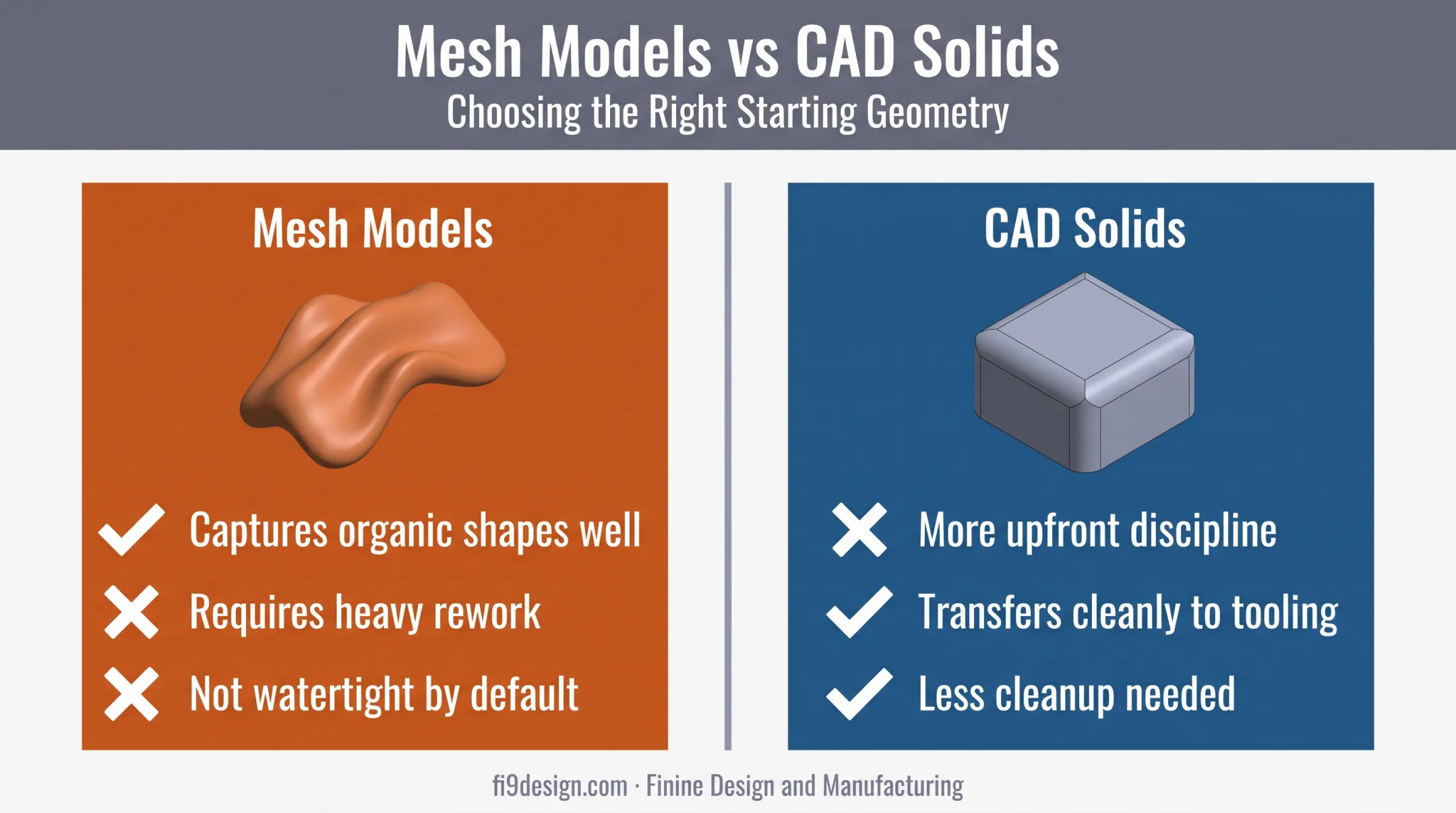

Beyond process choice, geometry strategy is the decision point most designers underestimate: mesh-based organic sculpting versus traditional CAD solids.
- Mesh models capture organic shapes well but often need heavy rework to become watertight, moldable geometry
- CAD solids take more upfront discipline and transfer to tooling with far less cleanup
Starting with tooling in mind—even loosely—saves rework later.
Choosing the Right Design and Manufacturing Partner
Juggling separate vendors for CAD, prototyping, and molding means juggling separate handoffs. Every handoff is a chance for design intent to get lost.
A single-source partner handling CAD modeling through injection molding keeps one team accountable for the whole journey. Finine Design and Manufacturing, based in San Diego, brings CAD modeling, 3D printing, CNC machining, urethane casting, injection molding, and production painting under one roof. For toy teams moving a concept through prototyping stages, that continuity cuts vendor delays and keeps design intent intact.
When evaluating any development partner, check:
- Turnaround speed for prototype-to-revision cycles
- In-house capabilities (versus outsourced steps you can't oversee directly)
- Cross-industry engineering experience that translates into problem-solving depth
- Whether the same team reviewing your CAD also reviews DFM changes
Common Challenges in Toy Prototyping and How to Avoid Them
Losing design intent during outsourced DFM work. When a factory reworks your model for moldability without designer input, small changes compound. A slightly different curve here and a simplified detail there can leave the final part barely resembling the original concept. Keep a designer in the loop through every DFM revision, not just at final approval.

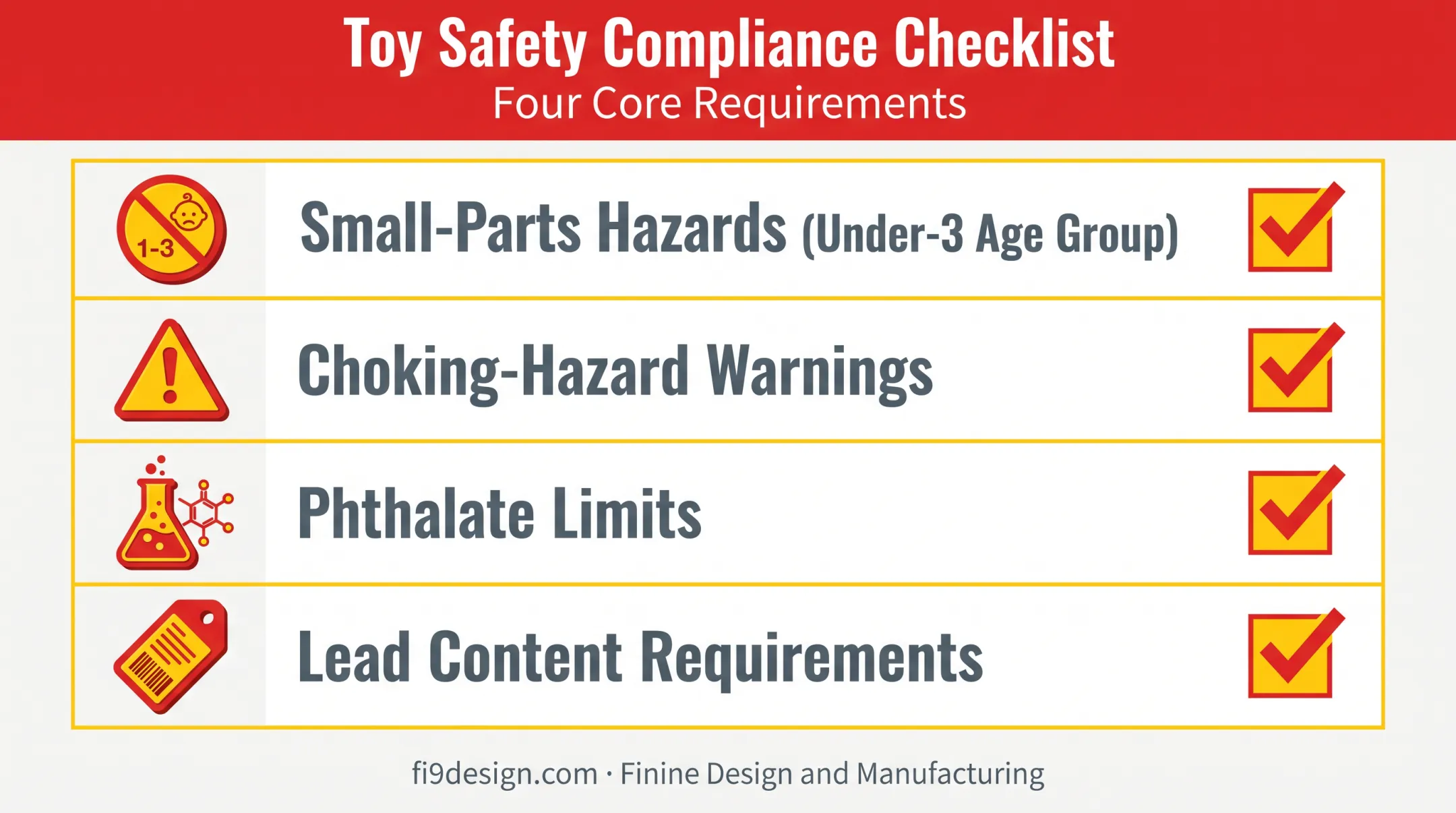

Skipping safety and compliance research too late. In the U.S., toys fall under ASTM F963, the standard covering toys for children under 14. Products aimed at children 12 and under also require CPSC testing and certification. Build compliance into material selection from the first prototype, not after tooling is cut. Watch for:
- Small-parts hazards for children under 3
- Required choking-hazard warnings on relevant packaging
- Phthalate limits in accessible plasticized components
- Lead content and tracking-label requirements
Rushing to tooling. Prototype multiple iterations before committing to a mold. A mold rework after tooling is cut is one of the most expensive mistakes in the entire process. That rework costs far more than another round of 3D-printed samples.
Frequently Asked Questions
What are the four types of prototyping?
Conceptual prototypes visualize early ideas, engineering/functional prototypes test mechanics, aesthetic prototypes validate appearance, and packaging prototypes confirm fit and shelf presentation. Each answers a different question at a different stage.
How long does toy prototyping typically take?
Timelines vary by complexity, but digital workflows help compress schedules. 3D printing can turn around in days, while urethane casting and tooling take longer. Project-specific estimates depend on the design.
What is the difference between a prototype and a final production toy?
A prototype is a pre-production test sample used to validate design, function, or appearance. A final production toy comes from validated, approved molds and tooling built for repeatable manufacturing.
How much does it cost to prototype a toy?
Cost depends on prototype type, material, and complexity. A rough concept model costs far less than a detailed aesthetic prototype or urethane-cast sample. Request a quote based on your specific design and stage.
Do toy prototypes need to be 3D printed?
3D printing is common but not the only method. Hand-sculpted models, resin castings, and CNC-machined parts all serve as prototypes depending on what you're testing: appearance, function, or fit.
What manufacturing method is best for mass-producing toys?
Injection molding is the conventional standard for high-volume, cost-effective toy production once a design is validated and tooling is justified by volume.
